Anales del Jardín Botánico de Madrid 79 (1)
January-June 2022, e123
ISSN-L: 0211-1322
https://doi.org/10.3989/ajbm.2625

Comparative physiological and biochemical mechanisms of drought tolerance in three contrasting cultivars of quinoa (Chenopodium quinoa)

Mecanismos fisiológicos y bioquímicos comparativos de tolerancia a la sequía en tres cultivares contrastantes de quinua (Chenopodium quinoa)

Yemeng ZHANG

Northwest Institute of Plateau Biology, Chinese Academy of Sciences, Xining 810001, P.R. China
Institute of Three-River-Source National Park, Chinese Academy of Sciences, Xining 810001, P.R. China
University of the Chinese Academy of Sciences, Beijing 100081, P.R. China

https://orcid.org/0000-0003-0676-5904

Qian YANG

Northwest Institute of Plateau Biology, Chinese Academy of Sciences, Xining 810001, P.R. China
Institute of Three-River-Source National Park, Chinese Academy of Sciences, Xining 810001, P.R. China

https://orcid.org/0000-0003-2540-6456

Lili ZHU

Northwest Institute of Plateau Biology, Chinese Academy of Sciences, Xining 810001, P.R. China
Institute of Three-River-Source National Park, Chinese Academy of Sciences, Xining 810001, P.R. China
University of the Chinese Academy of Sciences, Beijing 100081, P.R. China

https://orcid.org/0000-0002-9988-4306

Zhiguo CHEN

Northwest Institute of Plateau Biology, Chinese Academy of Sciences, Xining 810001, P.R. China
Institute of Three-River-Source National Park, Chinese Academy of Sciences, Xining 810001, P.R. China
University of the Chinese Academy of Sciences, Beijing 100081, P.R. China

https://orcid.org/0000-0001-5474-2606

Abstract

Quinoa (Chenopodium quinoa Willd.) is a halophytic, pseudocereal crop, which has a richer nutritional value than other major cereals and is highly resistant to multiple abiotic stresses. In this study, the germination characteristics, morphological, physiological and biochemical changes of three contrasting quinoa cultivars under drought stress were compared. The results indicated that ‘Chaidamuhong’ and ‘Gongzha No.3’ showed stronger drought tolerance than ‘Qingli No.1’. This was mainly manifest in seed germination index, activity of antioxidant enzymes, cell membrane damage and morphological changes. We speculate that the increase in the activity of many antioxidant enzymes and the lower stomatal density make ‘Chaidamuhong’ and ‘Gongzha No.3’ superior in release of reactive oxygen species and water retention than ‘Qingli No.1’, thus reducing the degree of cell damage, and improving drought resistance.

Keywords:
Quinoa; drought; reactive oxygen species; antioxidants; germination.
Resumen

La quinua (Chenopodium quinoa Willd.) es un cultivo de pseudocereal halófilo, que tiene un valor nutricional más rico que el de otros cereales importantes y es altamente resistente a múltiples estreses abióticos. En este estudio, se compararon características de germinación, cambios morfológicos, fisiológicos y bioquímicos de tres cultivares de contrastantes quinua bajo estrés por sequía. Los resultados indicaron que ‘Chaidamuhong’ y ‘Gongzha No.3’ mostraron una mayor tolerancia a la sequía que ‘Qingli No.1’. Esto se manifestó principalmente en el índice de germinación de las semillas, la actividad de las enzimas antioxidantes, el daño de la membrana celular y los cambios morfológicos. Especulamos que el aumento en la actividad de muchas enzimas antioxidantes y la menor densidad estomática hacen que ‘Chaidamuhong’ y ‘Gongzha No.3’ sean superiores en la liberación de especies reactivas de oxígeno y la retención de agua que ‘Qingli No.1’, reduciendo así el grado de daño celular y mejorando la resistencia a la sequía.

Palabras clave:
Quinoa; sequía; especies de oxígeno reactivo; antioxidantes; germinación.

Received: 4 October 2021; accepted: 19 May 2022; published online: 2 September 2022.

Associate Editor: Pilar Hernández.

How to cite this article: Zhang Y., Yang Q., Zhu L., Chen Z. 2022. Comparative physiological and biochemical mechanisms of drought tolerance in three contrasting cultivars of quinoa (Chenopodium quinoa). Anales del Jardín Botánico de Madrid 79: e123. https://doi.org/10.3989/ajbm.2625

CONTENT

INTRODUCTION



Drought is an important factor that negatively affects seed germination, plant growth, and crop yield. Rapid climate change has further increased the risk of drought in arid and semi-arid areas, which may threaten food security and production. In such alarming circumstances, it is important to ensure a sustained increase in the food supply (Mensbrugghe & al. 2009Mensbrugghe D.v.d., Osorio R.I, Burus A. & Baffes J. 2009. How to feed the world in 2050: macroeconomic environment, commodity markets-a longer term outlook. MPRA Paper 19019, University Library of Munich, Germany. https://mpra.ub.uni-muenchen.de/19019/.). Therefore, in a deteriorating environment, the development of some halophytic crops such as quinoa is the best way to cope with the growing demand for food (López-Marqués & al. 2020López-Marqués R.L., Nørrevang A.F., Ache P., Moog M., Visintainer D., Wendt T., Østerberg J.T., Dockter C., Jørgensen M.E., Salvador A.T., Hedrich R., Gao C., Jacobsen S.E., Shabala S. & Palmgren M. 2020. Prospects for the accelerated improvement of the resilient crop quinoa. Journal of Experimental Botany 71: 5333-5347.). Quinoa originated in the Andean region of South America and has a history of approximately 7,000 years under human cultivation (Dillehay & al. 2007Dillehay T.D., Rossen J., Andres T.C. & Williams D.E. 2007. Preceramic adoption of peanut, squash, and cotton in northern Peru. Science 316: 1890-1893.; Zurita-Silva & al. 2014Zurita-Silva A., Fuentes F., Zamora P., Jacobsen S.E. & Schwember A.R. 2014. Breeding quinoa (Chenopodium quinoa Willd.): potential and perspectives. Molecular Breeding 34: 13-30.). Quinoa has rich nutritional value, containing protein, starch, dietary fiber, oil, and many minerals (Vega-Gálvez & al. 2010Vega-Gálvez A., Miranda M., Vergara J., Uribe E., Puente L. & Martínez E. 2010. Nutrition facts and functional potential of quinoa (Chenopodium quinoa willd.), an ancient Andean grain: a review. Journal of the Science of Food and Agriculture 90: 2541-2547.), and has the ability to grow under adverse environments, such as soil salinity (Parvez & al. 2020Parvez S., Abbas G., Shahid M., Amjad M., Hussain M., Asad S.A., Imran M. & Naeem M.A. 2020. Effect of salinity on physiological, biochemical and photostabilizing attributes of two genotypes of quinoa (Chenopodium quinoa Willd.) exposed to arsenic stress. Ecotoxicology and Environmental Safety 187: 109814.), drought (Hinojosa & al. 2019Hinojosa L., Sanad M., Jarvis D.E., Steel P., Murphy K. & Smertenko A. 2019. Impact of heat and drought stress on peroxisome proliferation in quinoa. The Plant Journal: for Cell and Molecular Biology 99: 1144-1158. ), and heat (Ivanov & al. 2017Ivanov A.G., Velitchkova M.Y., Allakhverdiev S.I. & Huner N. 2017. Heat stress-induced effects of photosystem I: an overview of structural and functional responses. Photosynthesis Research 133: 17-30. ). The Food and Agriculture Organization of the United Nations (FAO) defined 2013 as the “Year of quinoa” and identified that quinoa plays an important role in ensuring food security in the future (Choukr-Allah & al. 2016Choukr-Allah R., Rao N.K., Hirich A., Shahid M., Alshankiti A., Toderich K., Gill S. & Butt K.U. 2016. Quinoa for marginal environments: toward future food and nutritional security in MENA and central asia regions. Frontiers in Plant Science 7: 346.). The cultivation and investigation of quinoa are increasing rapidly all over the world. It is cultivated in more than 95 countries (Jacobsen 2003Jacobsen S.E. 2003. The worldwide potential for quinoa (Chenopodium quinoa Willd.). Food Reviews International 19: 167-177.). As a new crop introduced into China, it is necessary to evaluate its adaptability and stress resistance. Different quinoa resources were systematically screened, and their agronomic characteristics were identified in order to evaluate the adaptability of quinoa in the Qinghai-Tibet Plateau to provide a theoretical basis for its cultivation and breeding.

In order to tolerate drought conditions, halophytic plants have evolved a variety of physiological mechanisms, such as osmotic regulation (Gámez & al. 2019 Gámez A.L., Soba D., Zamarreño Á.M., García-Mina J.M., Aranjuelo I. & Morales F. 2019. Effect of water stress during grain filling on yield, quality and physiological traits of illpa and rainbow quinoa (Chenopodium quinoa Willd.) cultivars. Plants 8: 173. ), enhanced antioxidant response (Hinojosa & al. 2019Hinojosa L., Sanad M., Jarvis D.E., Steel P., Murphy K. & Smertenko A. 2019. Impact of heat and drought stress on peroxisome proliferation in quinoa. The Plant Journal: for Cell and Molecular Biology 99: 1144-1158. ), ion accumulation or excretion, ion dynamic balance (Cai & Gao 2020Cai Z.Q. & Gao Q. 2020. Comparative physiological and biochemical mechanisms of salt tolerance in five contrasting highland quinoa cultivars. BMC Plant Biology 20: 70.) in order to maintain plant growth. Chenopodium quinoa responds to water deficits in seed germination characteristics and stomatal density (Gámez & al. 2019 Gámez A.L., Soba D., Zamarreño Á.M., García-Mina J.M., Aranjuelo I. & Morales F. 2019. Effect of water stress during grain filling on yield, quality and physiological traits of illpa and rainbow quinoa (Chenopodium quinoa Willd.) cultivars. Plants 8: 173. ), phenotypic and physiological changes (Bascuñán-Godoy & al. 2016Bascuñán-Godoy L., Reguera M., Abdel-Tawab Y.M. & Blumwald E. 2016. Water deficit stress-induced changes in carbon and nitrogen partitioning in Chenopodium quinoa Willd. Planta 243: 591-603. ; Aziz & al. 2018Aziz A., Akram N.A. & Ashraf M. 2018. Influence of natural and synthetic vitamin C (ascorbic acid) on primary and secondary metabolites and associated metabolism in quinoa (Chenopodium quinoa Willd.) plants under water deficit regimes. Plant Physiology and Biochemistry 123: 192-203. ), and biochemical adaptation (Bohnert & Jenson 1998Bohnert H.J. & Jenson R.G. 1998. Plant stress adaptations-making metabolism move. Current Opinion in Plant Biology 1: 267-274.). The evaluation of seed germination resistance enables us to identify tolerance in the early growth stage, which can save time for detecting tolerance under drought conditions. In addition, the ability of quinoa to tolerate drought stress differs. Some studies have shown that drought-tolerant cultivars have lower water loss rate and cell damage than sensitive cultivars (Amjad & al. 2020Amjad M., Ameen N., Murtaza B., Imran M., Shahid M., Abbas G., Naeem M.A. & Jacobsen S.E. 2020. Comparative physiological and biochemical evaluation of salt and nickel tolerance mechanisms in two contrasting tomato genotypes. Physiologia Plantarum 168: 27-37.). Sufficient evidence has shown that drought stress can lead to excessive production of reactive oxygen species (ROS) in quinoa (Iqbal & al. 2018Iqbal H., Yaning C., Waqas M., Shareef M. & Raza S.T. 2018. Differential response of quinoa genotypes to drought and foliage-applied H2O2 in relation to oxidative damage, osmotic adjustment and antioxidant capacity. Ecotoxicology and Environmental Safety 164: 344-354. ; Yang & al. 2020Yang A., Akhtar S.S., Fu Q., Naveed M. & Jacobsen S.E. 2020. Burkholderia phytofirmans PsJN stimulate growth and yield of quinoa under salinity stress. Plants 9: 672.;), such as hydrogen peroxide (H2O2), and superoxide radical (O2-), and hydroxyl (HO-) ions. These ROS can cause serious damage to proteins, DNA, lipids, and chlorophyll in plant cells (Raja & al. 2017Raja V., Majeed U., Kang H., Andrabi K.I. & John R. 2017. Abiotic stress: interplay between ros, hormones and MAPKs. Environmental & Experimental Botany 137: 42-157.). In the process of plant evolution, a variety of antioxidant enzymes have been developed to eliminate ROS, including the antioxidant enzymes superoxide dismutase (SOD), peroxidase (POD), peroxidase, catalase (CAT), glutathione peroxidases (GPX), and glutathione reductase (GR) (Hasanuzzaman & al. 2020Hasanuzzaman M., Bhuyan M., Zulfiqar F., Raza A., Mohsin S.M., Mahmud J.A., Fujita M. & Fotopoulos V. 2020. Reactive oxygen species and antioxidant defense in plants under abiotic stress: revisiting the crucial role of a universal defense regulator. Antioxidants 9: 681.). However, the activities of these antioxidant enzymes are also different among different cultivars. Tolerant cultivars have higher antioxidant enzyme activities than sensitive cultivars.

In this experiment, three kinds of quinoa cultivars were selected to compare seed germination and physiological and biochemical responses to drought stress. These three quinoa cultivars are suitable for planting in arid and semi-arid regions of Northwest China, but there are differences in their tolerance to drought. Therefore, The purpose of this study was to: (i) detect the germination characteristics of three, contrasting, plateau quinoa cultivars under PEG-6000 stress; (ii) evaluate the degree of cell damage in three contrasting plateau quinoa cultivars under water deprivation; (iii) compare the activities of antioxidant enzymes in three contrasting plateau quinoa cultivars under water deprivation; (iv) explore the differences in tolerance of drought stress due to the different activities of antioxidant enzymes in different quinoa cultivars; and (v) screened the drought-resistant quinoa by seed germination index, activity of antioxidant enzymes, cell membrane damage and morphological changes.

MATERIAL AND METHODS



Plant material



Seeds of three quinoa cultivars (Table 1) were provided by Qinghai Seed Management Station in Ulan County, Qinghai Province, China. The quinoa seeds were screened by a 1.5 mm mesh and the seeds of good maturity, fullness, and of the same size were selected. The selected seeds were soaked in 70% ethanol for 5 min to sterilize them, after which they were washed three times in distilled water. After that, the seeds were stored at 4 °C in a refrigerator for later use. The content of protein, fat and starch was determined by the Analysis and Testing Center of Northwest Plateau Institute of Biology, Chinese Academy of Sciences. Qingli No.1, Chaidamuhong, and Gongzha No.3 have protein contents of 14.5%, 14.7%, and 14.0%, fat contents of 5.7%, 4.4.0%, and 6.0%, and starch contents of 21.8%, 19.0%, and 17.0%, respectively.

Table 1.  Information of three quinoa cultivars used in this study.
Plant name Kilo-grain Weight (g) Planting Origin Ecotype
Qingli No.1 3.44 Northeast edge of Chaidamu basin Bolivia Alpine
Chaidamuhong 3.31 Northeast of Chaidamu basin Bolivia Alpine
Gongzha No.3 3.46 Hinterland of qinghai-tibet plateau Bolivia Valley

Seed germination test



The 15% and 25% PEG-6000 (bought from Sangon Biotech in Shanghai, China) solutions were prepared, and distilled water was used as a control. Then, 12 mL of each gradient solution was poured into a germination box (12 cm × 12 cm × 6 cm) covered with two layers of filter paper. Thirty seeds were placed in the germination box and incubated in a growth chamber at 20 °C, a 16-h photoperiod, an irradiance of 150 μmol m2 ·s -1, and a relative humidity of 65 % to induce germination. Taking a radicle length of more than 2 mm as the standard, the seed germination number was counted every day for 7 d, and the seed germination rate (GR), germination potential (GP), germination index (GI), mean germination time (MGT), and seed germination index of drought resistance (PIS / PIC) were calculated.

Seedling growth physiological test.



Three, 2-week-old quinoa seedlings of similar size were selected and transplanted into vermiculite pots (every pot contained 0.13 kg vermiculite), and placed in the cultivation cabinet. The cabinets containing the quinoa seedlings are randomly placed, and the positions are changed randomly each week. Dehydration treatment was carried out by withholding water in the vermiculite pot for about a month. The quinoa samples were harvested at 1, 7, 14, 21, 28, and 35 d after treatment to determine various physiological and biochemical indices.

Measurement of germination index



The seeds germination situation and the number of germinated seeds were recorded every day. The seeds were germinated for eight days to calculate the final germination.

G R = G e r m i n a t e d   s e e d   n u m b e r T e s t   s e e d   n u m b e r × 100 %

G P = G i 1 ~ 4 T e s t   s e e d   n u m b e r , where Gi is the number germination at the ith day.

G I = G i T i , where Gi is the number germination at the ith day (Wang & al. 2004Wang Y.R., Yu L., Nan Z.B. & Liu Y.L. 2004. Vigor tests used to rank seed lot quality and predict field emergence in four forage species. Crop science 44: 535-541.).

M G T = ( f × i ) f , where f is the number of newly germinated seeds at the ith day (Ellis & Roberts 1980Ellis R.H. & Roberts E.H. 1980. Towards a rational basis for testing seed quality. In Hebblethwaite P.D. (ed.), Seed Production: 605-635. London, Butterworths.).

P I S P I C = ; seed promptness index under water stress (PIS)/controlled seed promptness index (PIC);

P r o m p t n e s s   i n d e x   P I = G i 2 × 1.00 + G i 4 × 0.75 + G i 6 × ( 0.50 ) ; where Gi is the number germination at the ith day (Ranal & Santana 2006Ranal M.A. & Santana D.G. 2006. How and why to measure the germination process. Brazilian Journal of Botany 29: 1-11.).

Measurement of leaf water content



The same three plants were harvested and the fresh weight (FW) was determined immediately, and the dry weight (DW) was determined after 24 h of incubation at 80 °C.

L e a f w a t e r c o n t e n t L W C = F W - D W F W × 100 %

Measurement of proline content



Proline contents of the quinoa experimental group and control group were estimated with standard L-proline. Briefly, the sample (0.5 g) was extracted in 3% (w/v) sulfosalicylic acid before 2 mL of ninhydrin reagent and 2 mL of glacial acetic acid were added. Well mixed solutions were boiled at 100 °C for 40 min. After cooling to room temperature, the absorbance at 520 nm was measured (Bates & al. 1973Bates L.S., Waldren R.P. & Teare I.D. 1973. Rapid determination of free proline for water-stress studies. Plant Soil 39: 205-207. ).

Measurement of electrolyte leakage (EL)



For the EL assay, approximately 0.1 g of leaves were placed in 10 mL of double distilled water and shaken at room temperature for 6 h. The initial conductivity (Ci) was measured, and the mixture was boiled for 20 min to completely induce all electrolytes. After cooling to room temperature, the ultimate conductivity (Cmax) was determined (Luo & al., 2011). E L = C i C m a x × 100 %

Measurement of malondialdehyde



Malondialdehyde (MDA) contents of the quinoa experimental group and control group was measured with thiobarbituric acid (TBA), as previously reported (Shi & al. 2012). Samples (0.5 g) were ground in 2.5 mL of reagent (0.25% (w/v) TBA in 10% (w/v) trichloroacetic acid), and then boiled at 100 °C for 20 min. The MDA content was determined by subtracting the non-specific absorption at 600 nm from the absorbance of the sample supernatant at 532 nm.

Measurement of H2O2 level and antioxidant enzyme activities



The extraction procedures for antioxidant enzymes and H2O2 were carried out at 4 °C. Samples of quinoa leaves (0.5 g) were crushed and mixed in 2 mL extraction buffer (0.1 M potassium phosphate buffer with 0.1 mM EDTA, pH 7.0), and centrifuged in 15000 × g refrigerated centrifuge for 20 min, then the supernatant was collected and set aside at -20 °C. The level content of H2O2 and the activity of antioxidant enzymes were determined using Assay Kit (bought from Comin, Suzhou, China), and the procedures were as described by the Suzhou Comin Biotechnology Research Institute.

Measurement of stomatal density



Fully spread leaves were harvested from ~4-week-old plants under withholding water conditions for stomatal density measurement. The upper epidermis and lower epidermis of the leaf from the same part were peeled off, and photographed by a microscope (BX43, OLYMPUS, Guangzhou, China). The stomata numbers were counted and the density was calculated. Five leaves from three cultivars were used for each replicate, with three replicates for each cultivar (Paul & al. 2017Paul V., Sharma L., Pandey R. & Meena R. 2017. Measurement of stomatal density and stomatal index on leaf/plant surfaces. Website: https://www.researchgate.net/publication/321268177 [accessed: Jan. 2017] . ).

Statistical analysis



Statistical analysis at a significance level P < 0.05 was performed using the Statistical Product and Service Solutions (version 22.0). The data are presented as means ± standard error (SE). Asterisk symbols indicate significant differences at P < 0.05 (Tukey’s test). Statistical analysis values shown in the figure are the means of three independent replicates.

RESULTS



Germination characteristics of three quinoa cultivars under PEG-6000 stress



Quinoa seeds were treated with different concentrations of PEG-6000, and GP (Fig. 2a), GR (Fig. 2b), GI (Fig. 2c), MGT (Fig. 2d), and PIS/PIC (Fig. 2e) were recorded. Different concentrations of PEG-6000 had an inhibitory effect on the three kinds of quinoa seeds, and the inhibitory effect was the most obvious in the 25% PEG-6000 treatment. Under 25% PEG-6000 treatment, the GP, GR, GI, and PIS/PIC of ‘Chaidamuhong’ and ‘Gongzha No.3’ was not as obviously decreased as that of ‘Qingli No.1’; and the MGT of ‘Qingli No.1’ was significantly longer than that of‘Chaidamuhong’ and ‘Gongzha No.3’. In addition, the radicle length of the three quinoa cultivars also decreased under 25% PEG-6000 treatment, especially ‘Qingli No.1’ (Fig. 2f). Therefore, we speculate that the drought resistance of ‘Chaidamuhong’ and ‘Gongzha No.3’ under 25% PEG-6000 stress is stronger than that of ‘Qingli No.1’.

LWC and proline contents of three quinoa cultivars under water deprivation



To observe the physiological and biochemical changes of the three quinoa cultivars under water deprivation treatment, we detected the LWC of quinoa leaves (Fig. 2a). The LWC of ‘Qingli No.1’ decreased sharply after 21 days of treatment, while that of ‘Chaidamuhong’ and ‘Gongzha No.3’ decreased sharply after 35 days of treatment. The dipolarity of proline can maintain the morphology of membrane proteins, thus reducing plant water loss (Per & al. 2017Per T.S., Khan N.A., Reddy P.S., Masood A., Hasanuzzaman M., Khan M. & Anjum N.A. 2017. Approaches in modulating proline metabolism in plants for salt and drought stress tolerance: phytohormones, mineral nutrients and transgenics. Russian Journal of Plant Physiology 115: 126-140.). The increase in proline content can reduce the cell osmotic potential and improve the drought resistance of the plant (Meena & al. 2019Meena M., Divyanshu K., Kumar S., Swapnil P., Zehra A., Shukli V., Yadav M. & Upadhyay R.S. 2019. Regulation of L-proline biosynthesis, signal transduction, transport, accumulation and its vital role in plants during variable environmental conditions. Heliyon 5: e02952 .). In this experiment, the proline content of three quinoas cultivars was very low at 0 days of water deprivation, but the proline content increased significantly after 28 days of water deprivation (Figs. 2b, 2c). Interestingly, the proline content of ‘Qingli No.1’ increased significantly after 28 days of water deprivation, which may be due to the significant decrease in leaf water content of ‘Qingli No.1’ at 28 days of water deprivation. After 35 days of water deprivation, there were no significant differences in leaf water content among the three quinoa cultivars, and proline content was similar.

medium/medium-AJBM-79-01-e123-gf1.png
Fig. 1.  Germination related index of three quinoa materials under different concentrations of PEG-6000: a, germination percentage; b, germination potential; c, germination index; d, mean germination time; e, seed germination index of drought resistance; f, photo of quinoa on the 7th day of germination 0%, 15%, and 25% represent the concentration of PEG-6000; each value is the mean ± standard deviation of three replicates; *P < 0.05.
medium/medium-AJBM-79-01-e123-gf2.png

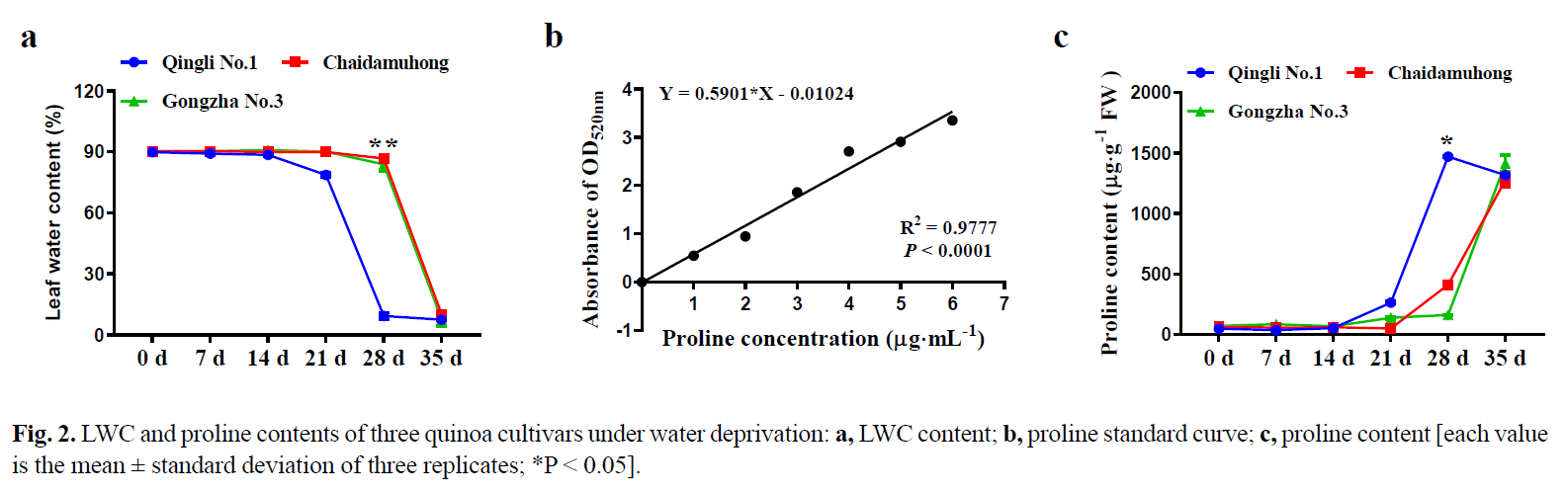

Fig. 2.  LWC and proline contents of three quinoa cultivars under water deprivation: a, LWC content; b, proline standard curve; c, proline content [each value is the mean ± standard deviation of three replicates; *P < 0.05].

Cell membrane damage and H2O2 of three quinoa cultivars under water deprivation



Generally, drought stress leads to an imbalance in ROS content in plant cells, causing damage to the cell membrane. Therefore, we measured EL (Fig. 3a), and MDA (Fig. 3b), and H2O2 (Fig. 3c) content of plant leaves. In three quinoa cultivars, the content of MDA, H2O2, and EL increased with the time of water deprivation. Moreover, the EL, MDA, and H2O2 content of ‘Qingli No.1’ increased the earliest, followed by ‘Chaidamuhong’ and ‘Gongzha No.3’.

medium/medium-AJBM-79-01-e123-gf3.png

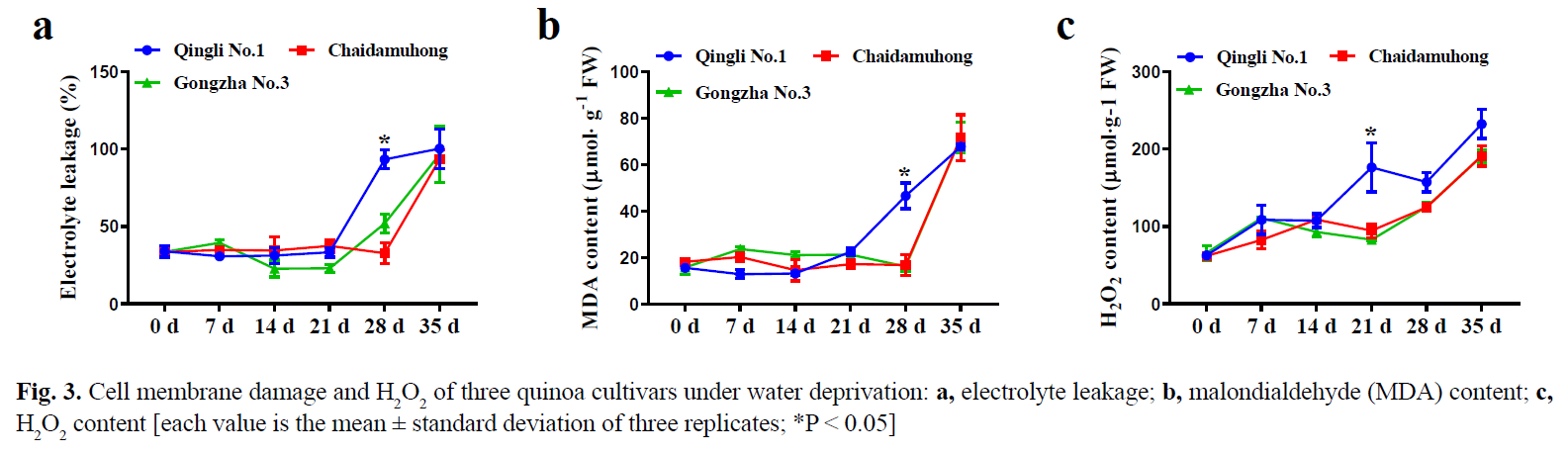

Fig. 3.  Cell membrane damage and H2O2 of three quinoa cultivars under water deprivation: a, electrolyte leakage; b, malondialdehyde (MDA) content; c, H2O2 content [each value is the mean ± standard deviation of three replicates; *P < 0.05]

Activities of antioxidant enzymes in three quinoa cultivars under water deprivation



Generally, when plants are subjected to abiotic stress, the ROS in their cells are out of balance, and the activities of antioxidant enzymes will change accordingly. In this experiment, the measurement of antioxidant enzyme activities showed that there was no significant difference in the activities of four antioxidant enzymes among the three quinoa cultivars at 0 d of water deprivation. However, with the increase in water deprivation time, the activities of the four antioxidant enzymes in the three quinoa cultivars also changed. The SOD activity of ‘Chaidamuhong’ and ‘Gongzha No.3’ increased significantly at 21 days, and then decreased in ‘Gongzha No.3’, while ‘Chaidamuhong’ maintained high activity until 35 days. The SOD enzyme activity of ‘Qingli No.1’ increased at 28 days, and then decreased (Fig. 4a). The POD enzyme activity of ‘’Chaidamuhong’ increased rapidly after 7 days of water deprivation, and maintained a high enzyme activity, while the POD enzyme activity of ‘Gongzha No.3’ and ‘Qingli No.1’ did not increase significantly under water deprivation (Fig. 4b). The GR enzyme activity of ‘Chaidamuhong’ and ‘Gongzha No.3’ increased after 28 days of water deprivation, but the GR enzyme activity of ‘Qingli No.1’ did not increase significantly under water deprivation (Fig. 4c). Under water deprivation, GPX enzyme activity of ‘Chaidamuhong’ increased with the increase in treatment time, but GPX enzyme activity in ‘Gongzha No.3’ did not increase significantly, while GPX enzyme activity in ‘Qingli No.1’ decreased after 28 days of treatment (Fig. 4d).

medium/medium-AJBM-79-01-e123-gf4.png

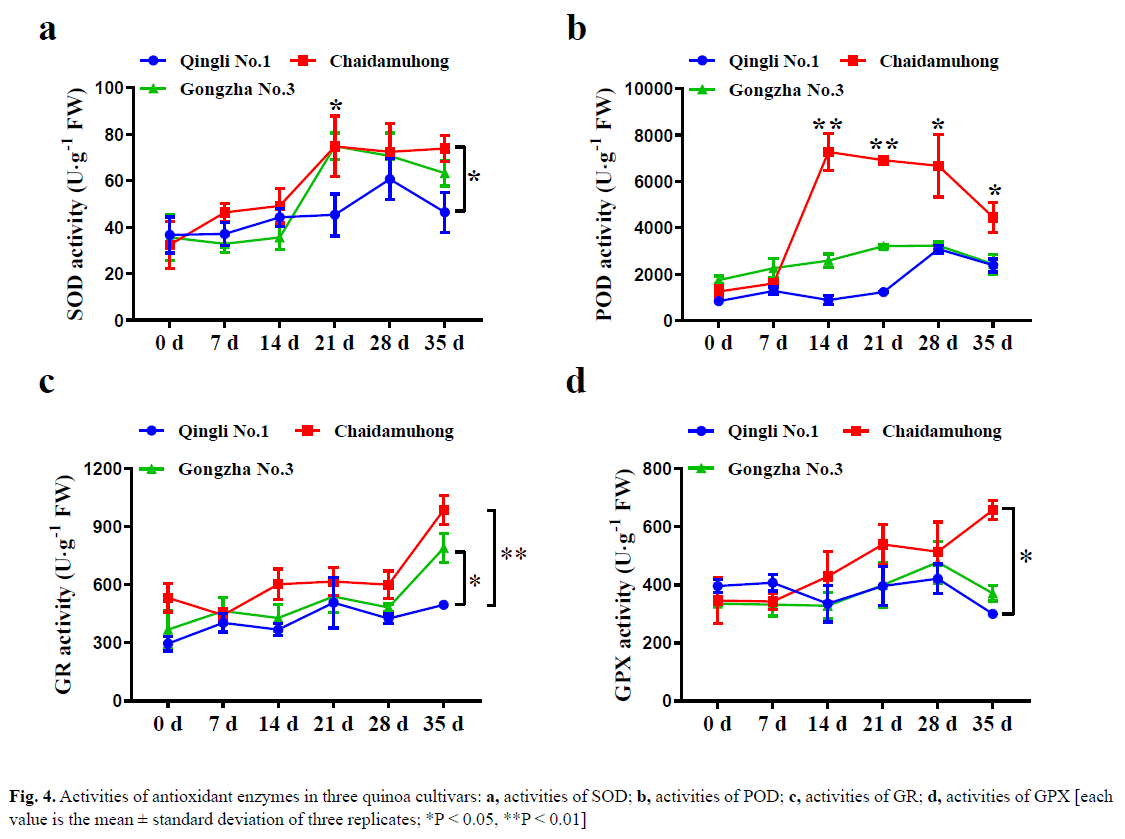

Fig. 4.  Activities of antioxidant enzymes in three quinoa cultivars: a, activities of SOD; b, activities of POD; c, activities of GR; d, activities of GPX [each value is the mean ± standard deviation of three replicates; *P < 0.05, **P < 0.01]

Phenotype and stomatal density of three quinoa cultivars under water deprivation



To observe the phenotypic changes in the three cultivars under water deprivation, we took photos at every sampling site. There were obvious phenotypic differences after 28 days of water deprivation. The quinoa cultivar of ‘Qingli No.1’ was drying up, and ‘Chaidamuhong’ and ’Gongzha No.3’ remained relatively complete. However, after 35 days, the three quinoa cultivars all dried up, and the rehydration reaction was carried out, but the three quinoa cultivars could not recover (Fig. 5a). Furthermore, the stomatal density of three quinoa cultivars was observed after 28 days of water starvation treatment. The results showed that the stomatal density of ‘Qingli No.1’, ‘Chaidamuhong’, and ‘Gongzha No.3’ were 110 mm-2, 100 mm-2 and 148 mm-2 on the upper epidermis and 145 mm-2, 116 mm-2, and 163 mm-2 on the lower epidermis, respectively (Fig. 5b). Compared with ‘Qingli No.1’ and ‘Gongzha No.3’, ‘Chaidamuhong’ showed lower stomatal density in both epidermises, especially in the upper epidermis. These results show that ‘Chaidamuhong’ may have a lower transpiration rate than ‘Qingli No.1’ and ‘Gongzha No.3’, thus reducing leaf water evaporation and ensuring higher leaf water content.

medium/medium-AJBM-79-01-e123-gf5.png
Fig. 5.  Phenotype and stomatal density of three quinoa cultivars under water deprivation: a, photos of quinoa cultivars under water deprivation over 35 days; b, photo of epidermis and graphic showing stomatal density in three quinoas [d = day; bar = 50 μm; each value is the mean ± standard deviation of three replicates; *P < 0.05].

DISCUSSION



Drought is an important limiting factor in plant growth, which will lead to a decrease in respiration and photosynthetic rate, an imbalance in osmotic pressure, damage to the membrane system, seriously affecting the metabolic activities in all stages of plant growth, and leading to the failure in quality and yield of crops (Cohen & al. 2021Cohen I., Zandalinas S.I., Huck C., Fritschi F.B. & Mittler R. 2021. Meta-analysis of drought and heat stress combination impact on crop yield and yield components. Physiologia Plantarum 171: 66-76. ). Therefore, breeding and screening of drought-resistant grains is particularly important for ensuring food security. Quinoa grain has high protein content, coordinated proportions of amino acids, is rich in vitamins (A, B2, E) and minerals (Ca, Fe, Cu, Mg, Zn), and has the titles of “mother of grain”, “golden grain”, and “sacred food” (Filho & al. 2017Filho A.M., Pirozi M.R., Borges J.T., Pinheiro-Sant’Ana H.M., Chaves J.B. & Coimbra J.S. 2017. Quinoa: Nutritional, functional, and antinutritional aspects. Critical Reviews in Food Science and Nutrition 57: 1618-1630. ). In addition, quinoa has the characteristics of cold tolerance, drought tolerance, saline-alkali tolerance, and barren tolerance (Jacobsen & al.2003Jacobsen S.E., Mujica A. & Jensen C.R. 2003. The resistance of quinoa (Chenopodium quinoa Willd.) to adverse abiotic factors. Food Reviews International 19: 99-109.). Therefore, it is of great significance to screen and cultivate better stress-resistant quinoa to develop future agro-ecosystems.

It is well known that the period from seed germination to seedling growth is the most sensitive period in the plant life cycle, which is very easily affected by various factors in the external environment (Weitbrecht & al. 2011Weitbrecht K., Müller K. & Leubner-Metzger G. 2011. First off the mark: early seed germination. Journal of Experimental Botany 62(10): 3289-3309.). Drought stress can delay seed germination or reduce seed germination power, so it is a major limiting factor in the process of seed germination (Ishibashi & al. 2018Ishibashi Y., Yuasa T. & Iwaya-Inoue M. 2018. Mechanisms of maturation and germination in crop seeds exposed to environmental stresses with a focus on nutrients, water status, and reactive oxygen species. Advances in Experimental Medicine and Biology 1081: 233-257.). The response of seed germination to drought stress reflects the ecological mechanism of its adaptation to the environment. In this experiment, drought stress was simulated by PEG-6000 to treat three contrasting plateau quinoa seeds, and their seed germination characteristics were observed. The results showed that there was no significant decrease or difference in the GP, GR, GI, MGT, and PIS/PIC among the three cultivars treated with 15% PEG-6000. However, under the 25% PEG-6000 treatment, the quinoas germination was obviously inhibited, but there were differences in drought tolerance among three cultivars. This was mainly manifest in the decline of GR, GP,GI, PIS / PIC and the increase of MGT. Among that, ‘Chaidamuhong’ and ‘Gongzha No.3’ showed higher GR, GP,GI, PIS/PIC and shorter MGT compared with ‘Qingli No.1’. Therefore, we speculate that ‘Chaidamuhong’ and ‘Gongzha No.3’ are the most survivability to PEG-6000 compared to ‘Qingli No.1’.

Water is an essential component of living cells and an important substance in metabolic activities. The leaf structure of plants with strong drought resistance is more conducive to reducing water loss, so the water retention of leaves directly reflects the drought resistance of plants (Liu & al. 2006Liu Y.H., Gao Q. & Jia H.K. 2006. Leaf-scale drought resistance and tolerance of three plant species in a semi-arid environment: application and comparison of two stomatal conductance models. Journal of Plant Ecology 30: 64-70.). Li & al. (1990)Li D.Q., Zou Q. & Bing S. 1990. Relationship between water status and osmotic adjustment of wheat leaves different in drought resistance. Chinese Bulletin of Botany 7: 43-48. showed that the water content of wheat leaves was proportional to drought resistance. In this experiment, the LWC of three kinds of quinoa seedlings was measured under water deprivation stress. After 28 days of water deprivation, the LWC of ‘Qingli No.1’ was significantly lower than ‘Chaidamuhong’ and ‘Gongzha No.3’. Therefore, compared with ‘Qingli No.1’, the leaves of ‘Chaidamuhong’ and ‘Gongzha No.3’ had higher water retention capacity and stronger drought resistance. In addition, some studies have shown that proline accumulates in plant cells under drought stress, while an increase in proline content helps to maintain cell osmotic potential, prevents cell dehydration, and protects the stability of the cell membrane system (Kumar & al. 2021Kumar M., Kumar-Patel M., Kumar N., Bajpai A.B. & Siddique K. 2021. Metabolomics and molecular approaches reveal drought stress tolerance in plants. International Journal of Molecular Sciences 22: 9108.). The proline content of the three quinoa cultivars increased with time under stress. However, on the 28th day, the proline content of ‘Qingli No.1’ was significantly higher than that of ‘Chaidamuhong’ and ‘Gongzha No.3’, which may be due to the significant decrease of LWC of ‘Qingli No.1’ on the 28th day, resulting in a decrease in intracellular water content, thus increasing the intracellular proline content.

In addition, under drought stress, the production and elimination of ROS in plant cells will be out of balance (Janků & al. 2019Janků M., Luhová L. & Petřivalský M. 2019. On the origin and fate of reactive oxygen species in plant cell compartments. Antioxidants 8: 105.; Winterbourn & al. 2016Winterbourn C.C., Kettle A.J. & Hampton M.B. 2016. Reactive oxygen species and neutrophil function. Annual Review of Biochemistry 85: 765-792. ). H2O2 is an important ROS (Quan & al. 2008Quan L.J., Zhang B., Shi W.W. & Li H.Y. 2008. Hydrogen peroxide in plants: a versatile molecule of the reactive oxygen species network. Journal of Integrative Plant Biology 50: 2-18. ). Recent studies have found that the massive increase in ROS (mainly H2O2) is a common characteristic of plants in response to external biotic and abiotic stresses (Luna & al. 2005Luna C.M., Pastori G.M., Driscoll S., Groten K., Bernard S. & Foyer, C.H. 2005. Drought controls on H2O2 accumulation, catalase (CAT) activity and CAT gene expression in wheat. Journal of Experimental Botany 56: 417-423.). Sufficient evidence shows that high accumulation of H2O2 in plant cells leads to the destruction of cell membrane structure and DNA denaturation, eventually leading to cell death (Zhang & al. 2014Zhang M., Yang Y., Cheng Y., Zhou T., Duan X. & Gong M. 2014. Generation of reactive oxygen species and their functions and deleterious effects in plants. Acta Botanica Boreali-Occidentalia Sinica 34: 1916-1926. ). MDA is a lipid membrane peroxide with high activity, which can affect the balance of the active oxygen metabolism system by affecting membrane proteins (Campos & al. 2003Campos P.S., Quartin V., Ramalho J.C. & Nunes M.A. 2003. Electrolyte leakage and lipid degradation account for cold sensitivity in leaves of Coffea sp. plants. Journal of Plant Physiology 160: 283-292.), and the content of MDA is an important sign of membrane structure damage (Toscano & al. 2016Toscano S., Farieri E., Ferrante A. & Romano D. 2016. Physiological and biochemical responses in two ornamental shrubs to drought stress. Frontiers in Plant Science 7: 645.). The increase in EL in plant tissue under drought stress is the result of the increase in cell membrane permeability caused by drought stress (Demidchik & al. 2014Demidchik V., Straltsova D., Medvedev S.S., Pozhvanov G.A., Sokolik A. & Yurin V. 2014. Stress-induced electrolyte leakage: the role of k+-permeable channels and involvement in programmed cell death and metabolic adjustment. Journal of Experimental Botany 65: 1259-1270.), so that electrical conductivity reflects the degree of damage to the plant leaf membrane structure. In order to study the degree of damage to the cell membrane caused by the changes in H2O2 in different quinoa cultivars under drought stress, we detected the EL and contents of H2O2 and MDA in plant cells under water deprivation. ‘Qingli No.1’ had higher EL, H2O2, and MDA content than ‘Chaidamuhong’ and ‘Gongzha No.3’ under water deprivation. Compared with ‘Qingli No.1’, the leaves of ‘Chaidamuhong’ and ‘Gongzha No.3’ had more complete membrane structure under water deprivation stress. This phenomenon also corresponds to the assumption that ‘Chaidamuhong’ and ‘Gongzha No.3’ are more drought-resistant than ‘Qingli No.1’.

In general, under drought stress, excess ROS produced in plant cells can be eliminated by antioxidant enzymes to protect plants from oxidation (Sheoran & al. 2015Sheoran S., Thakur V., Narwal S., Turan R., Mamrutha H.M., Singh V., Tiwari V. & Sharma I. 2015. Differential activity and expression profile of antioxidant enzymes and physiological changes in wheat (Triticum aestivum L.) under drought. Appl Biochem Biotechnol 177: 1282-1298.). SOD in antioxidant enzymes is the first line of defense for the scavenging of reactive oxygen species in plant cells. SOD converts O2- to O2 and H2O2 by disproportionation, followed by the decomposition of H2O2 into H2O and O2 by the catalysis of POD (Bowler & al. 2003Bowler C., Van-Montagu M. & Inzé D. 2003. Superoxide dismutase and stress tolerance. Annual Review of Plant Physiology 43: 83-116.). In addition, GPX catalyzes the reaction of glutathione (GSH) with H2O2 to form oxidized glutathione (GSSG) and H2O (Foyer & Noctor 2005Foyer C.H. & Noctor G. 2005. Redox homeostasis and antioxidant signaling: a metabolic interface between stress perception and physiological responses. The Plant Cell 17: 1866-1875.), while glutathione reductase (GR) catalyzes the reduction of GSSG to GSH to maintain the content of GSH, thus preventing the production of OH-, avoiding plasma membrane peroxidation, and protecting the structural and functional integrity of cell membranes. Therefore, the detection of the activities of these antioxidant enzymes can effectively evaluate the drought resistance of plants. The response of POD was the fastest under drought stress. Under drought treatment, the activity of POD in ‘Chaidamuhong’ and ‘Gongzha No.3’ increased significantly at 14 days, while that of ‘Qingli No.1’ increased significantly at 28 days. The POD activity of ‘Chaidamuhong’ was significantly higher than that of ‘Gongzha No.3’ and ‘Qingli No.1’ under drought stress. Under the same drought treatment, the SOD activity of ‘Chaidamuhong’ reached a maximum at 21 days, and then remained high, but the SOD activities of ‘Gongzha No.3’ and ‘Qingli No.1’ reached their maximum at 21 and 28 days, respectively, and then decreased. The trend of SOD activity is similar to that of POD activity of ‘Chaidamuhong’, which has higher SOD activity than ‘Gongzha No.3’ and ‘Qingli No.1’ under drought conditions. Under drought stress, the activities of GR and GPX of ‘Chaidamuhong’ and ‘Gongzha No.3’ increased significantly at 35 days, while the GR of ‘Qingli No.1’ did not increase significantly, and GPX even decreased at 35 days. Under drought stress, the activity of antioxidant enzymes in ‘Chaidamuhong’ was the highest, followed by ‘Gongzha No.3’, and ‘Qingli No.1’ was the lowest. Therefore, we speculate that under drought stress, ‘Chaidamuhong’ has higher antioxidant enzyme activity, which can quickly reverse the ROS imbalance caused by drought stress, and alleviate the oxidative damage of cell membranes caused by ROS.

Water deprivation not only induces physiological changes, but also triggers morphological and stomatal density changes in plant (Punchkhon & al. 2020Punchkhon C., Plaimas K., Buaboocha T., Siangliw J.L., Toojinda T., Comai L., De-Diego N., Spíchal L. & Chadchawan S. 2020. Drought-tolerance gene identification using genome comparison and co-expression network analysis of chromosome substitution lines in rice. Genes 11: 1197.). Therefore, to observe the morphological and stomatal density changes of three, contrasting, plateau quinoa cultivars under water deprivation. These results proved that quinoa plants can adapt to short-term water deprivation through their own physiological, biochemical, and morphological changes, but long-term water deprivation will cause irreversible damage to quinoa plants.

Overall, ‘Chaidamuhong’ has lower stomatal density physiologically, which can reduce the water loss rate and increase water use efficiency of ‘Chaidamuhong’ under water deprivation. In addition, the accumulation of intracellular proline under water deprivation also regulates cell osmotic pressure and cell water loss to protect the structure of the cell membrane. Higher antioxidant enzyme activity gives ‘Chaidamuhong’ stronger ability to reverse ROS imbalance under drought stress, which can reduce the irreversible damage of cells caused by excessive ROS. These results clearly show that ‘Chaidamuhong’ has higher drought resistance than ‘Gongzha No.3’ and ‘Qingli No.1’. Similarly, the germination characteristics under PEG-6000 stress and the morphological observation under water deprivation also showed that ‘Chaidamuhong’ had higher drought resistance. Although the study does not include the explanation of genomics and genetics; however, the drought tolerant quinoa could be screened by comparing seed germination index, activity of antioxidant enzymes, cell membrane damage and morphological changes, which provides a theoretical basis for the breeding and cultivation of quinoa.

ACKNOWLEDGMENTS



We are grateful to Mr. Xiaofeng Mao of the Qinghai Seed Station for his support and help.

REFERENCES



Amjad M., Ameen N., Murtaza B., Imran M., Shahid M., Abbas G., Naeem M.A. & Jacobsen S.E. 2020. Comparative physiological and biochemical evaluation of salt and nickel tolerance mechanisms in two contrasting tomato genotypes. Physiologia Plantarum 168: 27-37.

Aziz A., Akram N.A. & Ashraf M. 2018. Influence of natural and synthetic vitamin C (ascorbic acid) on primary and secondary metabolites and associated metabolism in quinoa (Chenopodium quinoa Willd.) plants under water deficit regimes. Plant Physiology and Biochemistry 123: 192-203.

Bascuñán-Godoy L., Reguera M., Abdel-Tawab Y.M. & Blumwald E. 2016. Water deficit stress-induced changes in carbon and nitrogen partitioning in Chenopodium quinoa Willd. Planta 243: 591-603.

Bates L.S., Waldren R.P. & Teare I.D. 1973. Rapid determination of free proline for water-stress studies. Plant Soil 39: 205-207.

Bohnert H.J. & Jenson R.G. 1998. Plant stress adaptations-making metabolism move. Current Opinion in Plant Biology 1: 267-274.

Bowler C., Van-Montagu M. & Inzé D. 2003. Superoxide dismutase and stress tolerance. Annual Review of Plant Physiology 43: 83-116.

Cai Z.Q. & Gao Q. 2020. Comparative physiological and biochemical mechanisms of salt tolerance in five contrasting highland quinoa cultivars. BMC Plant Biology 20: 70.

Campos P.S., Quartin V., Ramalho J.C. & Nunes M.A. 2003. Electrolyte leakage and lipid degradation account for cold sensitivity in leaves of Coffea sp. plants. Journal of Plant Physiology 160: 283-292.

Choukr-Allah R., Rao N.K., Hirich A., Shahid M., Alshankiti A., Toderich K., Gill S. & Butt K.U. 2016. Quinoa for marginal environments: toward future food and nutritional security in MENA and central asia regions. Frontiers in Plant Science 7: 346.

Cohen I., Zandalinas S.I., Huck C., Fritschi F.B. & Mittler R. 2021. Meta-analysis of drought and heat stress combination impact on crop yield and yield components. Physiologia Plantarum 171: 66-76.

Demidchik V., Straltsova D., Medvedev S.S., Pozhvanov G.A., Sokolik A. & Yurin V. 2014. Stress-induced electrolyte leakage: the role of k+-permeable channels and involvement in programmed cell death and metabolic adjustment. Journal of Experimental Botany 65: 1259-1270.

Dillehay T.D., Rossen J., Andres T.C. & Williams D.E. 2007. Preceramic adoption of peanut, squash, and cotton in northern Peru. Science 316: 1890-1893.

Ellis R.H. & Roberts E.H. 1980. Towards a rational basis for testing seed quality. In Hebblethwaite P.D. (ed.), Seed Production: 605-635. London, Butterworths.

Filho A.M., Pirozi M.R., Borges J.T., Pinheiro-Sant’Ana H.M., Chaves J.B. & Coimbra J.S. 2017. Quinoa: Nutritional, functional, and antinutritional aspects. Critical Reviews in Food Science and Nutrition 57: 1618-1630.

Foyer C.H. & Noctor G. 2005. Redox homeostasis and antioxidant signaling: a metabolic interface between stress perception and physiological responses. The Plant Cell 17: 1866-1875.

Gámez A.L., Soba D., Zamarreño Á.M., García-Mina J.M., Aranjuelo I. & Morales F. 2019. Effect of water stress during grain filling on yield, quality and physiological traits of illpa and rainbow quinoa (Chenopodium quinoa Willd.) cultivars. Plants 8: 173.

Hasanuzzaman M., Bhuyan M., Zulfiqar F., Raza A., Mohsin S.M., Mahmud J.A., Fujita M. & Fotopoulos V. 2020. Reactive oxygen species and antioxidant defense in plants under abiotic stress: revisiting the crucial role of a universal defense regulator. Antioxidants 9: 681.

Hinojosa L., Sanad M., Jarvis D.E., Steel P., Murphy K. & Smertenko A. 2019. Impact of heat and drought stress on peroxisome proliferation in quinoa. The Plant Journal: for Cell and Molecular Biology 99: 1144-1158.

Iqbal H., Yaning C., Waqas M., Shareef M. & Raza S.T. 2018. Differential response of quinoa genotypes to drought and foliage-applied H2O2 in relation to oxidative damage, osmotic adjustment and antioxidant capacity. Ecotoxicology and Environmental Safety 164: 344-354.

Ishibashi Y., Yuasa T. & Iwaya-Inoue M. 2018. Mechanisms of maturation and germination in crop seeds exposed to environmental stresses with a focus on nutrients, water status, and reactive oxygen species. Advances in Experimental Medicine and Biology 1081: 233-257.

Ivanov A.G., Velitchkova M.Y., Allakhverdiev S.I. & Huner N. 2017. Heat stress-induced effects of photosystem I: an overview of structural and functional responses. Photosynthesis Research 133: 17-30.

Jacobsen S.E. 2003. The worldwide potential for quinoa (Chenopodium quinoa Willd.). Food Reviews International 19: 167-177.

Jacobsen S.E., Mujica A. & Jensen C.R. 2003. The resistance of quinoa (Chenopodium quinoa Willd.) to adverse abiotic factors. Food Reviews International 19: 99-109.

Janků M., Luhová L. & Petřivalský M. 2019. On the origin and fate of reactive oxygen species in plant cell compartments. Antioxidants 8: 105.

Kumar M., Kumar-Patel M., Kumar N., Bajpai A.B. & Siddique K. 2021. Metabolomics and molecular approaches reveal drought stress tolerance in plants. International Journal of Molecular Sciences 22: 9108.

Li D.Q., Zou Q. & Bing S. 1990. Relationship between water status and osmotic adjustment of wheat leaves different in drought resistance. Chinese Bulletin of Botany 7: 43-48.

Liu Y.H., Gao Q. & Jia H.K. 2006. Leaf-scale drought resistance and tolerance of three plant species in a semi-arid environment: application and comparison of two stomatal conductance models. Journal of Plant Ecology 30: 64-70.

López-Marqués R.L., Nørrevang A.F., Ache P., Moog M., Visintainer D., Wendt T., Østerberg J.T., Dockter C., Jørgensen M.E., Salvador A.T., Hedrich R., Gao C., Jacobsen S.E., Shabala S. & Palmgren M. 2020. Prospects for the accelerated improvement of the resilient crop quinoa. Journal of Experimental Botany 71: 5333-5347.

Luna C.M., Pastori G.M., Driscoll S., Groten K., Bernard S. & Foyer, C.H. 2005. Drought controls on H2O2 accumulation, catalase (CAT) activity and CAT gene expression in wheat. Journal of Experimental Botany 56: 417-423.

Meena M., Divyanshu K., Kumar S., Swapnil P., Zehra A., Shukli V., Yadav M. & Upadhyay R.S. 2019. Regulation of L-proline biosynthesis, signal transduction, transport, accumulation and its vital role in plants during variable environmental conditions. Heliyon 5: e02952 .

Parvez S., Abbas G., Shahid M., Amjad M., Hussain M., Asad S.A., Imran M. & Naeem M.A. 2020. Effect of salinity on physiological, biochemical and photostabilizing attributes of two genotypes of quinoa (Chenopodium quinoa Willd.) exposed to arsenic stress. Ecotoxicology and Environmental Safety 187: 109814.

Paul V., Sharma L., Pandey R. & Meena R. 2017. Measurement of stomatal density and stomatal index on leaf/plant surfaces. Website: https://www.researchgate.net/publication/321268177 [accessed: Jan. 2017] .

Per T.S., Khan N.A., Reddy P.S., Masood A., Hasanuzzaman M., Khan M. & Anjum N.A. 2017. Approaches in modulating proline metabolism in plants for salt and drought stress tolerance: phytohormones, mineral nutrients and transgenics. Russian Journal of Plant Physiology 115: 126-140.

Punchkhon C., Plaimas K., Buaboocha T., Siangliw J.L., Toojinda T., Comai L., De-Diego N., Spíchal L. & Chadchawan S. 2020. Drought-tolerance gene identification using genome comparison and co-expression network analysis of chromosome substitution lines in rice. Genes 11: 1197.

Quan L.J., Zhang B., Shi W.W. & Li H.Y. 2008. Hydrogen peroxide in plants: a versatile molecule of the reactive oxygen species network. Journal of Integrative Plant Biology 50: 2-18.

Raja V., Majeed U., Kang H., Andrabi K.I. & John R. 2017. Abiotic stress: interplay between ros, hormones and MAPKs. Environmental & Experimental Botany 137: 42-157.

Ranal M.A. & Santana D.G. 2006. How and why to measure the germination process. Brazilian Journal of Botany 29: 1-11.

Sheoran S., Thakur V., Narwal S., Turan R., Mamrutha H.M., Singh V., Tiwari V. & Sharma I. 2015. Differential activity and expression profile of antioxidant enzymes and physiological changes in wheat (Triticum aestivum L.) under drought. Appl Biochem Biotechnol 177: 1282-1298.

Toscano S., Farieri E., Ferrante A. & Romano D. 2016. Physiological and biochemical responses in two ornamental shrubs to drought stress. Frontiers in Plant Science 7: 645.

Mensbrugghe D.v.d., Osorio R.I, Burus A. & Baffes J. 2009. How to feed the world in 2050: macroeconomic environment, commodity markets-a longer term outlook. MPRA Paper 19019, University Library of Munich, Germany. https://mpra.ub.uni-muenchen.de/19019/.

Vega-Gálvez A., Miranda M., Vergara J., Uribe E., Puente L. & Martínez E. 2010. Nutrition facts and functional potential of quinoa (Chenopodium quinoa willd.), an ancient Andean grain: a review. Journal of the Science of Food and Agriculture 90: 2541-2547.

Wang Y.R., Yu L., Nan Z.B. & Liu Y.L. 2004. Vigor tests used to rank seed lot quality and predict field emergence in four forage species. Crop science 44: 535-541.

Weitbrecht K., Müller K. & Leubner-Metzger G. 2011. First off the mark: early seed germination. Journal of Experimental Botany 62(10): 3289-3309.

Winterbourn C.C., Kettle A.J. & Hampton M.B. 2016. Reactive oxygen species and neutrophil function. Annual Review of Biochemistry 85: 765-792.

Yang A., Akhtar S.S., Fu Q., Naveed M. & Jacobsen S.E. 2020. Burkholderia phytofirmans PsJN stimulate growth and yield of quinoa under salinity stress. Plants 9: 672.

Zhang M., Yang Y., Cheng Y., Zhou T., Duan X. & Gong M. 2014. Generation of reactive oxygen species and their functions and deleterious effects in plants. Acta Botanica Boreali-Occidentalia Sinica 34: 1916-1926.

Zurita-Silva A., Fuentes F., Zamora P., Jacobsen S.E. & Schwember A.R. 2014. Breeding quinoa (Chenopodium quinoa Willd.): potential and perspectives. Molecular Breeding 34: 13-30.
