For over 300 years, the quinine-containing bark of the Cinchona tree was the only effective treatment for malaria in Europe and its colonies. Cinchona bark was exported from South America from the 1630s, harvested in its native habitat of cloud forest on the slopes of the Andes (Wallis 2012Wallis P. 2012. Exotic drugs and English medicine: England’s drug trade, c. 1550-c. 1800’. Social History of Medicine 25: 20-46.; Crawford 2016Crawford M.J. 2016. The Andean Wonder Drug: Cinchona bark and imperial science in the Spanish Atlantic, 1630-1800. University of Pittsburgh Press, Pittsburgh.; Walker & Nesbitt 2019Walker K. & Nesbitt M. 2019. Just the tonic: A natural history of tonic. Royal Botanic Gardens, Kew.). The remote habitat of Cinchona trees meant that the plants were poorly understood by European botanists, despite their economic and medical importance. It is therefore not surprising that Cinchona trees were a major object of study of Ruiz and Pavón, the principal botanists of the “Real Expedición Botánica al Virreinato del Perú” [Royal Botanical Expedition to the Viceroyalty of Peru] (1777-1816) hereafter referred to as the “Real Expedición” (Honigsbaum 2001Honigsbaum M. 2001. The fever trail: The hunt for the cure for malaria. Pan Books, London.; Bleichmar 2008Bleichmar D. 2008. Atlantic competitions: Botany in the eighteenth-century Spanish Empire. In Dew N. & Delbourgo J. (eds) Science and Empire in the Atlantic World: 225-252. Routledge, London.; Crawford 2016Crawford M.J. 2016. The Andean Wonder Drug: Cinchona bark and imperial science in the Spanish Atlantic, 1630-1800. University of Pittsburgh Press, Pittsburgh.).
Most of the original “Real Expedición” collections are kept at the MA Herbarium of Real Jardín Botánico (RJB), Madrid. However, over the 230 years since its return to Spain, the collection, and in particular the Cinchona portion, has been partly dispersed across various locations. A major component of the Cinchona collection is now at Royal Botanic Gardens, Kew (Economic Botany Collection). This paper traces the history, trajectory and relationship of the Cinchona collections of Ruiz and Pavón found today in Madrid and Kew. It forms a case study of the circulation of specimens as circulation of knowledge, an important purpose of museums in the study period (Driver & al. 2021Driver F., Nesbitt M. & Cornish C. (eds). 2021. Mobile Museums: Collections in Circulation. UCL Press, London.).
Our aim in this study was to identify specimens in Kew and Madrid that would be suitable for chemical and genomic analyses, as part of a wider project on the history and chemical diversity of Cinchona (Canales & al. 2020Canales N.A., Gress Hansen T.N., Cornett C., Walker K., Driver F., Antonelli A., Maldonado C., Nesbitt M., Barnes C.J. & Rønsted N. 2020. Historical chemical annotations of Cinchona bark collections are comparable to results from current day high-pressure liquid chromatography technologies. Journal of Ethnopharmacology 249: 112375. ). Historic specimens such as those collected by Ruiz and Pavón are important evidence of past forests, harvesting by local communities, trade networks, and the taxonomic practices of botanists. We wished to understand whether this dispersed Cinchona collection could be reassembled in digital format, reconnecting the specimens to their documentation, improving understanding of provenance, and thereby enriching their usefulness as biological and cultural specimens.
Our methodology thus had two components: study of relevant archives and other written materials in order to understand the ways in which specimens circulated between various individual institutions and people, and careful analysis of individual specimen characteristics such as appearance, collection numbers assigned in the field, catalog numbers assigned later, handwriting, and museum labels. We expected that this specimen data would enable correlation of individual specimens with the division and movement of collections through time.
The genus Cinchona⌅
The genus Cinchona L. comprises 23 (Andersson 1998Andersson L. 1998. A revision of the genus Cinchona (Rubiaceae-Cinchoneae). Memoirs-New York Botanical Garden, New York. ) to 24 (Aymard 2019Aymard G. 2019. Breve reseña de los aspectos taxonómicos y nomenclaturales actuales del género Cinchona (Rubiaceae-Cinchoneae). La Revista de la Academia Colombiana de Ciencias Exactas, Físicas y Naturales 43 (suplemento): 234-241. ) species, with a recent addition, C. andersonii Maldonado (Maldonado & al. 2017Maldonado C., Barnes C.J., Cornett C., Holmfred E., Hansen S.H., Persson C., Antonelli A. & Rønsted N. 2017. Phylogeny predicts the quantity of antimalarial Alkaloids within the iconic yellow cinchona bark (Rubiaceae: Cinchona calisaya). Frontiers in Plant Science 8: 391.). The genus is in the monophyletic Rubiaceae tribe Cinchoneae with Ciliosemina Antonelli, Cinchonopsis L.Andersson, Joosia H.Karst., Ladenbergia Klotzsch, Remijia D.C., Stilpnophyllum Hook.f., Maguireocharis Steyerm. and Pimentelia Wedd., (Andersson & Antonelli 2005Andersson L. & Antonelli A. 2005. Phylogeny of the tribe Cinchoneae (Rubiaceae), its position in Cinchonoideae, and description of a new genus, Ciliosemina. Taxon 54: 17-28. ; Manns & Bremer 2010Manns U. & Bremer B. 2010. Towards a better understanding of intertribal relationships and stable tribal delimitations within Cinchonoideae s.s. (Rubiaceae). Molecular Phylogenetics and Evolution 56: 21-39. ). The Cinchona genus and C. officinalis L. were first described by Linnaeus (1753: 172) based on descriptions and drawings by La Condamine (de La Condamine 1738de La Condamine C. 1738. Sur l´arbre du quinina, Mémoires de l’Académie Royale des Sciences: 226-243.). Five new, still accepted, species were described by the end of the eighteenth century: C. pubescens Vahl, C. lancifolia Mutis, C. hirsuta Ruiz & Pav., C. micrantha Ruiz & Pav. and C. nitida Ruiz & Pav. In Andersson’s monograph (1998Ruiz H., Schultes R.E. & Nemry von Thenen de Jaramillo M.J. 1998. The journals of Hipólito Ruiz: Spanish botanist in Peru and Chile 1777-1778. Timber Press, Portland.), c. 330 historic scientific names were distilled down to a couple of dozen. The high number of synonymous names is a consequence of the phenotypic variability of the plant and the historical botanical and pharmaceutical interest in this group, reflected in the confusion, debate and repeated re-organization of the genus by different authors.
Cinchona grows throughout the Andes at altitudes between 500-3000 metres, from the Potosí area (Bolivia) in the south, extending further north as far as the Talamanca range (Costa Rica), and spreading along the Venezuelan coastal range (Andersson 1998Andersson L. 1998. A revision of the genus Cinchona (Rubiaceae-Cinchoneae). Memoirs-New York Botanical Garden, New York. ). Three main Cinchona species, C. calisaya Wedd (yellow bark) (including C. ledgeriana (Howard) Bern.Moens ex Trimen), C. officinalis L. (pale bark) and C. pubescens Vahl (red bark), have been cultivated on a regular basis for their pharmacological exploitation, as well as the hybrids with C. officinalis (Nair 2010Nair K. 2010. The Agronomy and economy of important tree crops of the developing world. Elsevier, Amsterdam.). The type and proportion of alkaloids vary greatly in Cinchona species, as well as in populations of the same species, between individuals of different ages and between the oldest and newest leaves and barks (Martin & Gandara 1945Martin W.E. & Gandara J.A. 1945. Alkaloid content of Ecuadoran and other American Cinchona barks. Botanical Gazette 107: 184-199.; Bruce-Chwatt 1990Bruce-Chwatt L. 1990. Cinchona and quinine: a remarkable anniversary. Interdisciplinary Science Reviews 15: 87-93. ; Nair 2010Nair K. 2010. The Agronomy and economy of important tree crops of the developing world. Elsevier, Amsterdam.). The genera Ladenbergia and Remijia also contain quinine-type alkaloids (Maldonado & al. 2017Maldonado C., Barnes C.J., Cornett C., Holmfred E., Hansen S.H., Persson C., Antonelli A. & Rønsted N. 2017. Phylogeny predicts the quantity of antimalarial Alkaloids within the iconic yellow cinchona bark (Rubiaceae: Cinchona calisaya). Frontiers in Plant Science 8: 391.).
History of the “Real Expedición”⌅
In the last third of the eighteenth century, the Spanish Government began a scientific programme to collect and record the physical and biological characteristics of its colonies. Between 1760 and 1816, fifty-seven expeditions were launched with these aims in mind ranging from mathematical to the botanic (Steele 1964Steele A.R. 1964. Flowers for the king: The expedition of Ruiz and Pavon and the Flora of Peru. Duke University Press, Durham.; Bleichmar 2008Bleichmar D. 2008. Atlantic competitions: Botany in the eighteenth-century Spanish Empire. In Dew N. & Delbourgo J. (eds) Science and Empire in the Atlantic World: 225-252. Routledge, London., 2012Bleichmar D. 2012. Visible Empire: Botanical expeditions and visual culture in the Hispanic enlightenment. University of Chicago Press, Chicago.). In the case of scientific “Expediciones”, the objective was to collect useful botanical knowledge for the benefit of the nation (Figueroa 2012Figueroa M. 2012. Cuestionarios, instrucciones y circulación de objetos naturales entre España y América (siglos XVI y XVIII). Anuario del Centro de Estudios Históricos “Prof. Carlos S. A. Segreti” 12 (12): 121-136.). Colonial and state infrastructures were made available to the expedition members during their commission, as well as means of transport (Campo 1993Campo I. 1993. Introducción de plantas americanas en España: relación de especies americanas ; introducidas en España desde mediados del siglo XVIII; hasta principios del siglo XIX. Ministerio de Agricultura, Pesca y Alimentación, Madrid.). Administratively, the botanical expeditions were assigned to the Ministry of the Indies, while the scientific supervision of the work was assigned to the First Professor of the Real Jardín Botánico, an institution subordinate to the Chief Minister, and the recipient of the botanical materials collected by these expeditions (García Guillén & Muñoz Paz 2003García Guillén E. & Muñoz Paz Ó. 2003. Historia administrativa y organización de los fondos de la Expedición al Virreinato del Perú (1777-1831). In Muñoz Garmendia F. (ed.) La botánica al servicio de la Corona: la Expedición de Ruiz, Pavón y Dombey al virreinato del Perú: 170-220. Lunwerg Editores, Madrid.).
The “Real Expedición Botánica al Virreinato del Perú” (1777-1816) was one of the first “Expediciones” organized specifically to study the flora of the colonial territories. Ruiz and Pavón, together with French botanist Joseph Dombey (1742-1794) who left the “Real Expedición” in 1784, traveled to the Viceroyalty with the purpose of cataloging the flora of Peru and Chile and publishing the results in a series of illustrated volumes. The “Real Expedición” members were exhorted in their instructions to make a particular study of Cinchona, whose medicinal applications made it a recognized economically valuable plant (AJB, Div. IV, 7, 1, f. 5v; Ruiz & al. 1998Ruiz H., Schultes R.E. & Nemry von Thenen de Jaramillo M.J. 1998. The journals of Hipólito Ruiz: Spanish botanist in Peru and Chile 1777-1778. Timber Press, Portland.). The directions also gave guidelines and references for the formation and packaging of the collection, along with specifications for each plant. Numerous types of sample were to be collected, including (where possible), branch or trunk wood with bark adhering, leaves, flowers, seeds, sap, as well as local ethnobotanical names and uses (Steele, 1964, p. 42Steele A.R. 1964. Flowers for the king: The expedition of Ruiz and Pavon and the Flora of Peru. Duke University Press, Durham.). There is evidence that in addition to gathering their own barks, Ruiz and Pavón asked the Viceroy of Peru to send samples of barks in commerce to Madrid.
“Los botánicos del Perú con el mayor respeto hacemos presente a Vuestra excelencia la necesidad que tenemos de adquirir esqueletos (especímenes de herbario) y demás materiales de la Quina llamada Calisaya, para hacer por ellos la descripción de tan interesante especie... se digne mandar pasar las correspondientes órdenes al Virrey del Perú para que haga acopiar en las Montañas en que se cría dicha Quina calisaya los materiales necesarios de ella, para que por mano de V. E los remita aquel virrey a esta oficina Botánica....” (Ruiz & Pavón, 23 September, 1803, ACN, 17, 305, f.1).
“The botanists of Peru with the greatest respect we present to Your Excellency the need we have to acquire skeletons (herbarium specimens) and other materials of the Quina called Calisaya, to make the description of such an interesting species... he deigns to pass the corresponding orders to the Viceroy of Peru to have the necessary materials collected in the Mountains in which said Quina calisaya is grown, so that by the hand of Your Excellency that viceroy may send them to this Botanical office...” (Authors’ translation of Ruiz & Pavón, 23 September, 1803, ACN, 17, 305, f. 1).
The initial phase of the “Real Expedición” began with the team’s arrival in Lima in 1778, and concluded with Ruiz and Pavón’s return to Madrid in 1788 with a large shipment of collections. During their stay in South America they sent dried plants, wood samples, botanical descriptions and drawings, and live plants collected in the field in Peru and Chile, to the Ministry of the Indies in Madrid. Live plants and seeds were also sent directly or indirectly to the Real Jardín Botánico (RJB), Madrid. Between 1777 and 1788, there is evidence of four shipments of seeds and specimens of live plants from Cinchona being received in 1785, 1786 and 1787, but not all arrived in good condition (Campo 1993Campo I. 1993. Introducción de plantas americanas en España: relación de especies americanas ; introducidas en España desde mediados del siglo XVIII; hasta principios del siglo XIX. Ministerio de Agricultura, Pesca y Alimentación, Madrid.). In the RJB Seed (sowing) books, there are references to Cinchona seeds in 1785, (AJB, Div. I, LS, 4. f. 71), 1796 (AJB, Div. I, L-S, 13) and 1803 (AJB, Div. I, L-S, 28). The Spanish never established successful cultivation in Spain, preferring to focus on potential sites in South America. However, projects there did not thrive, due to lack of local confidence, preference for other land uses and political instability at home and abroad (González Bueno & Muñoz Garmendia 1993González Bueno A. & Muñoz Garmendia F. 1993. Las semillas de la América hispana en el Real Jardín Botánico de Madrid: Una aproximación a través de los Libros de Siembra (1777-1822). In: Madrid en el contexto de lo hispánico desde la época de los descubrimientos [Actas del Congreso Nacional]: 1369-1382. Madrid: Universidad Complutense de Madrid. ; Crawford 2016Crawford M.J. 2016. The Andean Wonder Drug: Cinchona bark and imperial science in the Spanish Atlantic, 1630-1800. University of Pittsburgh Press, Pittsburgh.).
On their return, Ruiz and Pavón collected the materials they had sent, now scattered among the Secretariat of the Indies. For example, in 1793 they collected herbarium specimens and drawings from the Library of Ministry of Indias, the “Gabinete de Historia Natural”, and the RJB (ACN, 13, 205, f. 9). In the latter, there were 18 or 19 boxes of roots, barks and seeds (ACN, 12, 203, ff. 33-36). Ruiz and Pavón initially had no official residence to work on their collections. In 1792 work began in the “Oficina de la Flora” (Peruvian Flora Office) (González Bueno & Rodríguez Nozal 1996González Bueno A. & Rodríguez Nozal R. 1996. The expedition to Peru and Chile (1777-1788): inventory of scientific production. Huntia; a Yearbook of Botanical and Horticultural Bibliography 9: 107-132.), established at the request of the First Professor of the RJB, teacher and mentor of Ruiz, Casimiro Gómez de Ortega (1741-1818) (Steele 1964Steele A.R. 1964. Flowers for the king: The expedition of Ruiz and Pavon and the Flora of Peru. Duke University Press, Durham.). The assignment of the “Oficina” to the Ministry of the Indies kept it out of the influence of the RJB both geographically and scientifically, which in the long run had a negative influence on the preservation of the collections. In particular, Ruiz and Pavón had poor relations with the director of the RJB between 1801 and 1804, Antonio José Cavanilles (1745-1804) (Steele 1964Steele A.R. 1964. Flowers for the king: The expedition of Ruiz and Pavon and the Flora of Peru. Duke University Press, Durham.). The “Oficina” moved its headquarters on seven occasions, with the consequent danger to collections in each move (García Guillén & Noya Santos 2017García Guillén E. & Noya Santos R. 2017. Colecciones especiales de la real expedición botánica al virreinato de Perú (1777-1815): Recuperación de una colección histórica. Museologia & Interdisciplinaridade 5 (9): 160-174. ).
Beginning with Ruiz’s death in 1815 and until the collections entered the RJB in 1831, Pavón made sales of specimens and other botanical materials belonging to the “Real Expedición”, mainly to Aylmer Bourke Lambert and Philip Baker Webb. The dispersion caused by these unauthorized sales has been studied by Rodríguez Nozal (1994)Rodríguez Nozal R. 1994. Las colecciones americanas generadas por las expediciones botánicas de la España Ilustrada: un análisis de su dispersión. Llull: boletín de la Sociedad Española de Historia de las Ciencias 17: 403-436.. Not all the materials would remain in the “Oficina de la Flora”. In 1793 Ruiz and Pavón requested that they should be allowed to keep in their own houses duplicates of each plant gathering to allow observations and new corrections, as well as for safety in the event of fire in the “Oficina de la Flora”. They also considered this as a reward for their work (ACN, 12, 203, f. 36). We do not know the answer of the Secretary of the Indies, however we have evidence that Pavón kept a personal herbarium outside the Office, supposedly in his house. Of this ‘personal’ collection of Pavón, a small part was sold by his son after his father’s death, through the intermediation of Mariano de la Paz Graells, director of the RJB at that time, to the Academia de Ciencias Naturales de Barcelona and is currently in the Herbarium BC of the Institut Botànic de Barcelona (Ibáñez & al. 2006Ibáñez N., Montserrat J.M. & Soriano I. 2006 Collections from the Royal Spanish Expeditions to Latin America in the Institut Botànic de Barcelona (BC), Spain. Willdenowia 36: 595.). The main part of Pavón’s personal herbarium was sold to Edmund Boissier in 1841, probably through the intermediation of RJB Director, Miguel Colmeiro (1816-1901) (Burdet 1985Burdet H. 1985. Edmond Boissier, botaniste genevois 1810-1885-1985. Conservatoire et Jardin botaniques, Série documentaire 17. Geneva.), and is preserved in the Herbarium G of the Conservatoire et Jardin botaniques de la Ville de Genève.
After Ruiz and Pavón’s return to Madrid, two “Real Expedición” leaders would remain in South America, Juan José Tafalla, who joined the “Real Expedición” in 1785 and the artist Francisco Pulgar, to whom botanist Juan Agustín Manzanilla, and artists José Gabriel Rivera and Xavier Cortés would be added in 1794 to continue the observations and replace the collections lost in the shipwreck of the San Pedro de Alcántara and the Macora fire in 1784. Between 1798 and 1808, in response to a request by Ruiz and Pavón, Tafalla and Manzanilla made an excursion to the territories of Ecuador in which they collected Cinchona (ACN, 16, 289, f. 1). Numerous shipments of barks, seeds, herbarium specimens, and also drawings and descriptions of Cinchona were sent during this period between 1785 to 1814, recorded in shipping lists kept in the archives of the Real Jardín Botánico and the Museo Nacional de Ciencias Naturales, Madrid. In 1801, during their stay in Quito, Tafalla and Manzanilla would meet Alexander von Humboldt (1769-1859) and Aimée Bonpland (1773-1858), and also with Francisco José de Caldas (1768-1816), a member attached to the “Expedición Botánica al Virreinato de Nueva Granada” (Royal Botanical Expedition of the New Kingdom of Granada). This “Expedición” was led by José Celestino Mutis (1732-1808) to study, among others, the territory’s Cinchona, giving rise to a competition between both Spanish expeditions to identify the Cinchona species most effective against malarial fevers. Humboldt and Bonpland had met Ruiz and Pavón in Madrid in 1799, before their trip to America, to view the herbarium of the “Real Expedición” (von Humboldt & Bonpland 1814: 48von Humboldt A. & Bonpland A. 1814. Voyage aux régions Équinoxiales du Nouveau Continent. [Relation historique]: Fait en 1799, 1800, 1801, 1802, 1803 et 1804. F. Schoell, Paris.).
All the materials sent by Tafalla and Manzanilla were incorporated into the collection of the “Real Expedición” in Madrid and their origin and authorship were obscured, but they are thought to have contributed a significant number. This is important to bear in mind when evaluating the collections because, as many researchers have pointed out, items collected between 1789 and 1816 have sometimes been attributed to Ruiz and Pavón, resulting in inaccurate collection data (Miller 1970Miller H.S. 1970. The herbarium of Aylmer Bourke Lambert: Notes on its acquisition, dispersal, and present whereabouts. Taxon 19: 489-553.; Pupulin 2012aPupulin F. 2012a. The Orchidaceae of Ruiz & Pavón’s “Flora Peruviana et Chilensis”: a taxonomic study. I. Anales del Jardín Botánico de Madrid 69: 21-79.; Tepe 2018Tepe E.J. 2018. A series of unfortunate events: the forgotten botanist and the misattribution of a type collection. PhytoKeys 109: 33-39.). The specimens, descriptions and drawings corresponding to Tafalla and Manzanilla travels to Guayaquil were identified by Eduardo Estrella (1989)Estrella E. (ed.). 1989. Flora Huayaquilensis, sive descriptiones et icones plantarum Huayaquilensium secundum systema Linnaeanum digestae. Madrid: Icona and Real Jardín Botánico, 2 vols.. A helpful breakdown of the timeline of the “Real Expedición” and collectors was compiled by Tepe (2018)Tepe E.J. 2018. A series of unfortunate events: the forgotten botanist and the misattribution of a type collection. PhytoKeys 109: 33-39..
Due to the richness and complexity of the flora, Ruiz and Pavón’s study took much longer than anticipated. Ultimately, they failed to publish the collection in its entirety, with only three of the eleven planned volumes of the Flora Peruviana et Chilensis produced (1798-1802), with two additional pre-publications, Florae Peruvianae, et Chilensis Prodromus (1794) and the Systema Vegetabilium Florae Peruvianae et Chilensis (1798). The plates of the fourth volume were distributed by Pavón (González Bueno & Rodriguez Nozal 1996González Bueno A. & Rodríguez Nozal R. 1996. The expedition to Peru and Chile (1777-1788): inventory of scientific production. Huntia; a Yearbook of Botanical and Horticultural Bibliography 9: 107-132.; Pupulin 2012aPupulin F. 2012a. The Orchidaceae of Ruiz & Pavón’s “Flora Peruviana et Chilensis”: a taxonomic study. I. Anales del Jardín Botánico de Madrid 69: 21-79.). The ambitious task was affected from 1808 by national and international political instability, as well as the Napoleonic wars in Spanish territory (1808-1814) during which the RJB was occasionally closed (González Bueno & Rodríguez Nozal 2006González Bueno A. & Rodríguez Nozal R. 2006. Materials from the M. Sessé & J. M. Mociño expedition (1787-1803) pertaining to the Elizondo legacy. Huntia 12: 173-184.). After this period, Spain was left economically unstable, with efforts directed towards reconstruction, and scientific projects such as the Flora Peruviana lost their urgency and significance.
MATERIAL AND METHODS⌅
AJB: Archivo del Real Jardín Botánico de Madrid
ACN: Archivo del Museo Nacional de Ciencias Naturales, Madrid
BC: Herbario del Institut Botànic de Barcelona
BM: British Museum, London
EBC: Economic Botany Collection, Kew
K: Herbarium of Royal Botanic Gardens, Kew
LMA: London Metropolitan Archives
MA: Herbario del Real Jardín Botánico-CSIC, Madrid
MNCN: Museo Nacional de Ciencias Naturales-CSIC, Madrid
NHM: Natural History Museum, London
RBGK: Royal Botanic Gardens, Kew
RGS: Royal Geographical Society Archives
RJB: Real Jardín Botánico-CSIC, Madrid
RPS: Royal Pharmaceutical Society, London
“Real Expedición” material assessed as part of this project included herbarium specimens, wood, bark, and seed samples, and archives relating to Cinchona at the RJB and RBGK. An overview of the two institutions’ collections by type can be found in Figures 3 and 4. At RBGK, barks and woods collections from the “Real Expedición” are kept in the Economic Botany Collection (EBC) and the pressed plant specimens are kept in the Herbarium (K).
Closely related non-Cinchona species were included in the project study. These include species that were previously classified as Cinchona, or were part of the “Real Expedición” Cinchona collections. These include ‘false-barks’, which had close resemblance (but lesser medicinal action), and were found in trade intentionally or unintentionally mixed with Cinchona barks. Genera names in the Cinchona labels studied in the project include closely related Rubiaceae members: Joosia, Ladenbergia (syn. Cascarilla (Endl.) Wedd.), Machaonia Bonpl., Macrocnemum P.Browne, Pimentelia Wedd., Remijia, Nauclea L., and Uncaria Schreb., as well as Theaceae genus Gordonia Ellis (syn. Laplacea Kunth). Cinchona in Kew’s Economic Botany Collection is cataloged under botanical names assigned during databasing in the late 1980s. For our data tables, updated accepted names (using http://www.plantsoftheworldonline.org/) have been entered, based on the oldest known original names originally assigned by Hipólito Ruiz and José Pavón or John Eliot Howard.
The primary working materials of the project are spreadsheets of the Cinchona collections at Kew and Madrid, partly extracted from institutional databases, and expanded through study of the specimens, labels, archives and printed materials. In cases where original labels and lists are transcribed in this paper, e.g. in transcribing old data, we have kept the original spelling, which has alternate versions and inconsistencies. Because of COVID-19, some external archives were inaccessible and therefore the authors have had to rely on communications from other curators or transcriptions in secondary sources. The project data are presented in the supplementary data (https://doi.org/10.6084/m9.figshare.15081633).
Overall, we identified 243 relevant botanical specimens, illustrations and copper plates in Madrid and 188 at Kew (Table 1). Within the Economic Botany Collection at Kew we were able to assign Pavón specimens as arriving via Aylmer Bourke Lambert (1816) and John Eliot Howard (1858).
|Royal Botanic Gardens, Kew||Real Jardín Botánico, Madrid|
|No. of specimens||No. of specimens|
|Herbarium sheets (including duplicates)||≥ 6 from Pavón (52 from later “Real Expedición”)||168|
|Copper printing plates||0||5|
The Madrid Collection⌅
The collection is made up of herbarium specimens, samples of woods and barks, drawings, original handwritten descriptions and a catalog listing species and materials. There are also five copper plates of Cinchona illustrations and a copy of José Pavón’s manuscript Nueva Quinología (dated around 1826), as well as collection inventories, shipments of material from Peru and Ecuador, and other related administrative documents. The biological material is in the MA Herbarium, and the graphic and textual material is in the RJB Archives. Part of the documentation relating to shipments made by the “Real Expedición” and its management is in the archives of the MNCN, Madrid. A breakdown of the biological specimens can be found in Table 1.
The set of Cinchona materials is now integrated and dispersed within the wider collections of the “Real Expedición”, but was previously kept separate in the “Oficina de la Flora”, reflecting the importance that Cinchona held for the botanists of the “Real Expedición”.
Three stages can be distinguished in the formation of the collection. The first corresponds to the activity of Hipólito Ruiz and José Pavón in Peru between 1778 and 1788, the second, to that developed by commissioners Juan José Tafalla and Juan Agustín Manzanilla, mainly during their stay at the Royal Court of Quito, Ecuador (1799-1805). The third stage relates to study of the material in the “Oficina de la Flora”, resulting in publications by Hipólito Ruiz and José Pavón on Cinchona. These stages, and the relationships between the different materials, can be distinguished from these inscriptions, labels and the period inventories. The annotations also reveal the connections between the materials, giving a unique and consistent character to the Madrid collection. Authors’ translations throughout.
Transfer to the Real Jardín Botánico⌅
An important point in the history of the quinological materials in Madrid is the closure of the “Oficina de la Flora Peruviana” and the transfer of the collections of the “Real Expedición” to the RJB in 1831. This was meant to be a temporary move, but became the collection’s ultimate destination. Previously, the collections of the “Oficina” had been inventoried in 1809, 1821 and 1823. The inventory carried out by the Board of Protection of the Museum on its entry into the RJB detected significant omissions, from that made by Pavón in 1823 (ACN 21, 396, f. 181-183). This highlighted the poor curation practices of Pavón (Ruiz had died in 1816) and led to the cessation of his employment and salary, until he could explain the missing materials. Although the Professors of the RJB, Sandalio de Arias and Vicente Cutanda, warned it was impossible to know exactly what was missing, the inventory showed that at least 712 drawings and four boxes of roots, fruits, barks and seeds, in addition to books like the Flora Peruviana, Ruiz’s Quinología and Ruiz and Pavón’s Suplemento de la Quinología, were no longer part of the collection (ACN, 21, 396, f. 180).
The inventory also revealed that the samples of dried plants, bark and wood sections from Cinchona were inventoried and kept separately from the rest of the collection of materials belonging to the Flora Peruviana et Chilensis. In 1823, Pavón cataloged these collections and coordinated the samples, for his future Cinchona monograph entitled Nueva Quinología. This manuscript Catalogus omnium Chinchonarum specierum tam editum quam ineditarum (AJB, Div. IV, 15, 1, 3. See Figure 1a) describes 50 species, classified into two sections, published and unpublished, detailing the material (or lack of collected parts) that corresponds to each one (sheet, drawing, bark and wood), other relevant data, such as description number, drawing number (“icon” or “ic.”), as well as observations on vernacular names, properties and the publications for which it was reference material. In other words, these Cinchona specimens were reclassified by Pavón in 1823 in a new structure that correlated all the components, including the materials collected by Ruiz and Pavón themselves, and those collected later by Tafalla and Manzanilla. The same catalog can be considered as a work plan for Pavón’s unpublished manuscript Nueva Quinología (1826) and includes the species that had already been published in the Flora Peruviana, Quinología (1792) and the Suplemento de la Quinología (1801). The coordination of this catalog with the samples, left its mark on the inscriptions that accompany both the barks, wood, descriptions and drawings, data that allows us to recover the order and structure that Pavón gave to the collection.
In addition, an undated list of 40 bark packages and 41 Cinchona woods existing in the collection is preserved, organized by number of packages and vernacular name, and two later copies of the list made upon entering the RJB showing the differences (AJB, Div. IV, 15, 3, 14). See Figure 1b.
The transfer of the collections to the RJB did not lead to new research by the professors. Vicente Soriano and Sandalio Arias would excuse themselves, arguing that almost all the new species contained in these collections had been published by Swiss botanist Auguste De Candolle (1778-1841) and that the only professor who could have addressed this work, Mariano Lagasca (1776-1839), was in political exile in London (ACN 21, 396, ff. 29-31). Meanwhile, European interest in the Cinchona genus, and its potential cultivation, grew in light of the need of expanding empires for anti-malarial medicine. Several researchers recognized the value of the Madrid collection, including British quinologist, John Eliot Howard, as discussed later in the Kew Collection section. Clements R. Markham (1830-1916) visited the RJB in September 1866, comparing the herbarium collection to trees growing in the new plantations in India. According to his notes, the dried Cinchona specimens had remained in the same state in which Pavón had left them (Markham 1866Markham C.R. 1866. Report on the specimens of Chinchonæ in the herbaria at Madrid. Eyre & Spottiswoode, London.). This continued until the 1870s when the samples of Cinchona barks and woods were organized separately from the Cinchona specimens of the Herbarium into the RJB’s ‘Special Collections’. From that time, species descriptions, herbarium, bark and wood, had different histories according to their typology. We will discuss the history of each separately: 1) herbarium specimens, 2) barks, woods and seeds, and 3) descriptions and drawings.
At the time of its entry to the RJB, and according to the inventory of 1831 (AJB, Div. IV, 15, 2, 14), the “Real Expedición” herbarium consisted of ten drawers “containing various plant specimens placed by their classes whose herbarium is tied with their corresponding little boards”. There are no in-depth studies on the history of the “Real Expedición” herbarium from its entry into the RJB in 1831. Information on its state in the second half of the 19th century is partial and scattered. Some descriptions are provided by visitors like Markham who describes it as “Herbarium arranged according to De Candolle natural system in a long dirty upstairs room in the garden. The Flora Peruviana of Ruiz & Pavón in folders down the center of the room. Among them, two large bundles of Cinchona specimens with tickets in Pavón’s own handwriting” (RGS, Special Collections, C.R. Markham, 57. South American notes). The ‘room’ that Markham describes was specially erected behind the “Pabellón Villanueva” to house these collections in 1831, in the place of two old ponds. On the right side, currently occupied by offices, was located the collection room that housed the general herbarium, the herbaria of the scientific expeditions, and collections of natural products such as barks, logs, gums, resins, and fruits, etc.
Regarding Markham’s comment on classification, we believe it refers only to the general herbarium, and that the “Real Expedición” herbarium, like the rest of the “special” herbaria, had little intervention and possibly continued with the Linnaean classification. In 1875, the director of the RJB, Miguel Colmeiro, calculated that the herbarium of the “Real Expedición” of Ruiz and Pavón contained a total of 2,980 specimens, of which 2,859 were phanerogams and 121 were cryptogams (Colmeiro 1875Colmeiro M. 1875. Bosquejo histórico y estadístico del Jardín Botánico de Madrid. Anales de la Sociedad Española de Historia Natural 4: 241-345.). The systematic identification of the herbarium was not addressed until the 1930s, with its loan to the Herbarium B of the Botanical Garden and Museum of Berlin-Dahlem (AJB, Div. I, 107, 11), where the specimens were given determinations in 1932 by specialists including Diels, Pilger and Krause (Lack 1979Lack H. 1979. Die südamerikanischen Sammlungen von H. Ruiz und Mitarbeitern im Botanischen Museum Berlin-Dahlem. Willdenowia 9: 177-198.). During the project we also located barks (~8) and herbarium specimens (~22) in Florence University, apparently sent by Pavón to botanist Phillip Webb, but further research on these is required.
In the “Real Expedición” herbarium, we can find three types of original labels, see also Figure 2:
Pavón labels (Fig. 2a), which can be cross-referenced to the 1823 catalog (Catálogo, 1823, Ms. AJB, Div. IV, 15, 1, 3) and Nueva Quinología manuscript (LMA ACC/1037/855), which include species number, scientific name, vernacular name, drawing number (“L. / Lam. / icon / ic..”) or the mention that it exists (“c. l” [cum lamina], description number (“N.”)), and in some cases, a corresponding reference to the Flora Peruviana, to the Quinology of Ruiz and Supplement, and to the manuscript of Nueva Quinología of Pavón (“Kinología”). Forty-nine sheets bear labels that allow us to relate them to 38 of the 50 species listed in the 1823 catalog (1-14; 16-17; 19-21; 23-37 and 39-41). We cross-reference to this London version of the Nueva Quinología because it is the original, whereas the Madrid version is a copy.
Labels referring to the Tafalla (Fig. 2c) and Manzanilla collection (25 samples), which include: Linnaean class, scientific name, vernacular name, drawing number, description number, location and date of collection. 72% of the specimens from Tafalla and Manzanilla were collected in Loja (formerly known as Loxa, present day Ecuador) in 1805. Pavón added to these labels the species number from the 1823 Cinchona catalog.
There are nine specimens with labels (Fig. 2b) that correspond to the work of José Demetrio Rodríguez (1760-1846), added to the “Oficina de la Flora” in 1827 (Álvarez López 1956Álvarez López E. 1956. Comentario sobre “Laurus”, de Ruiz y Pavón, con notas de Dombey acerca de alguna de sus especies. Anales del Jardín Botánico de Madrid 13: 71-78.). We cannot know if Rodríguez removed the original tags to add his own, or if they lacked a tag from the beginning. They all include the scientific name and the phrase “Ex herb. [arium] Fl. Peruv. 1828”. Of the 168 specimens, twenty-two coincide with species number 1, 8, 10, 12, 14, 17, 18, 19, 20, 26, 27, 28, 29, 31, 35, 36, 37 and 41 collected in the manuscript, Nueva Quinología of Pavón.
Barks, woods and seeds⌅

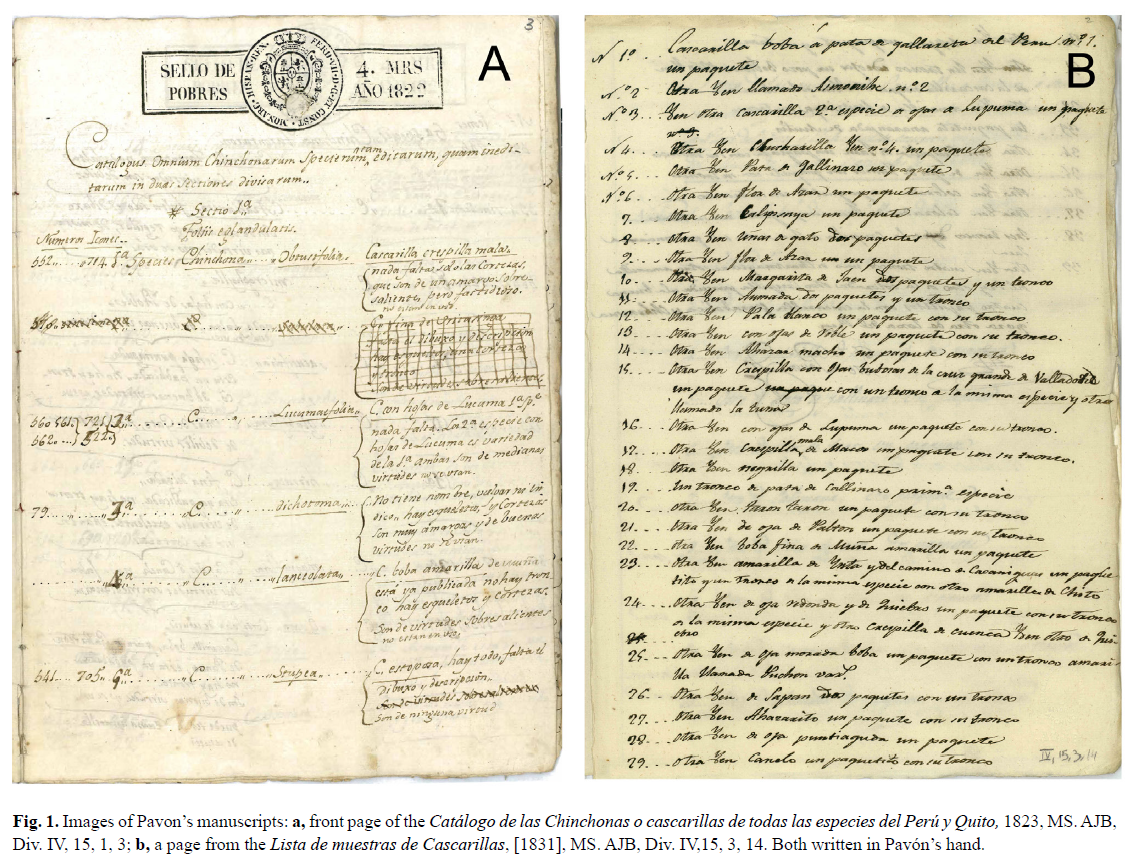

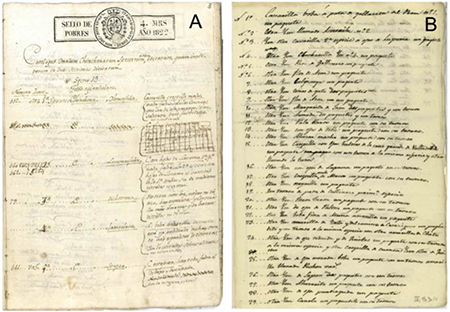

The 1823 catalog (AJB, Div. IV, 15, 1, 3) and the 1831 list of barks and woods (AJB, Div. IV, 15, 3, 14) indicate that Cinchona biological materials were kept separate from the rest of the “Real Expedición” collections both at the “Oficina de la Flora” and at the RJB. In 1831 they were moved together with the herbarium to the ‘collections room’ of the “Pabellón Villanueva”, without receiving more attention from the experts of the RJB. An inventory by Colmeiro was drawn up in 1870 (AJB, Div. 15, 4, 7), in which materials are listed, organized in drawers, grouped by category including barks, woody stems, leaves, herbs, roots, catkins, fruits, seeds. Among them was noted eight packets of Cinchona bark. However, the main collection of barks and woods from Cinchona would remain separated from the rest of materials of Flora Peruviana with its own inventory. In 1875 Colmeiro counted 586 packages, 39 of which included cascarillas or quinas within the special collections of Peru and Chile (Colmeiro 1875). This number of species relative to the barks agrees with that outlined in the 1831 list, (AJB, Div. IV, 15, 3, 14), except one. Colmeiro had a special interest in these collections, and in the “Catálogo de la colección quinológica de J. Pavón” (AJB, Div. I, 96, 4, 11) he marked those he took for his own collection (“I have mine marked with +” ), later with a selection of these barks from this and other expeditions, he created a collection under the name “Quinas del Jardín Botánico. 1878” (AJB, Div. I, 14, 2, 11). Ten of these specimens are from the “Real Expedición” and are now preserved in the MAF herbarium of the Facultad de Farmacia of the Universidad Complutense University de Madrid, without any record of how they got there (González Bueno & Bermejo 1989: 195González Bueno A. & Bermejo P. 1989. Una Colección de quinas perteneciente a José Pavón (1754-1840). Acta Botánica Malacitana 14: 195-197.). Later, Colmeiro presented a “Colección organográfica” of the RJB at the Congress of Americanists held in Madrid in 1881 (Pérez de Guzmán 1881: 307Pérez de Guzmán J. 1881. Congreso Americanista de Madrid. La Ilustración Española y Americana n.º XLIII, año XXV: 298. 22 de Noviembre de 1881.). The collection of cascarillas from the “Real Expedición” is also mentioned in the 1911 guide to the RJB (Gredilla 1911Gredilla F. 1911. Jardín Botánico de Madrid, su origen, importancia científica y relaciones internacionales. R. Velasco, Impresor, Madrid.) and some specimens were exhibited in the Exposición Retrospectiva de Historia Natural that was held in the “Pabellón Villanueva” del RJB in 1929 (Real Academia 1932: 31Real Academia de Ciencias Exactas, Físicas y Naturales. 1932. Recuerdo de la Exposición Retrospectiva de Historia Natural. Celebrada en el Jardín Botánico de Madrid en Julio de 1929. V. Aguirre, Impresor, Madrid.).
These collections remained in the “Pabellón Villanueva”, and after a long period of decline of the RJB in the 1960s and 70s, they were moved to the new research building. In 1984, Paz Cabello Carro carried out an examination of the drawers of the old “special collections” and recognized in them packages of barks from Peru (AJB. Div. I, 205). The collection of barks was recovered and cataloging began in 2002 (García Guillén & Noya Santos 2017García Guillén E. & Noya Santos R. 2017. Colecciones especiales de la real expedición botánica al virreinato de Perú (1777-1815): Recuperación de una colección histórica. Museologia & Interdisciplinaridade 5 (9): 160-174. ).
At present, we can recognise three groups in the RJB collection:
23 original packages and one drawer of barks (total 24). Seventeen of these packages have original Pavón handwritten tags attached that correspond to the catalog he made in 1823 (by species number) and to the list of 1831 (by package number). Furthermore, two packages correspond to the 1831 list and three only carry the package number without further information, so they cannot be related to the list confidently. The labels of four of the packages lack enough data to relate them to either references. The seventeen other remaining packages can be related to the species in the catalog and other materials, and they can be considered as related reference material for Pavón’s quinological collection and his Nueva Quinología manuscript of 1826, later published by Howard and now in London.
23 packages of barks in more modern packaging, with labels and inscriptions made in the second half of the 19th century that copy the original labels, but without including package number or species number, so it is not possible to relate them to the Pavón inventories. These packages correspond to the list of the collection of “Quinas del Jardín Botánico” organized by Colmeiro in 1878 (AJB, Div. I, 14, 2, 11).
19 Cinchona woods, of which 18 have inscriptions on the cut end, and 16 of them have original tags tied with rope, some are quite damaged, so they have lost data. Even so, we can relate twelve of them to the 1823 catalog and nine to the 1831 list. In four cases we have been able to relate the wood specimen with the bark package and herbarium sheets.
In addition, there are 25 packages of bark whose collection cannot be established due to lack of data, and that have been left out of this study, since they could also belong to the “Real Expedición Botánica al Virreinato de Nueva Granada” [Royal Botanical Expedition to the Viceroyalty of New Granada] (1783-1816), as is the case of MA-CARPO 100334, with the inscription “Quina Baya de Santa Fé”. This group is also related to the quinological collection created by Colmeiro in 1878.
Unlike the Kew collection, there are no Cinchona seeds found in the Madrid “Real Expedición” collections.
Descriptions and drawings⌅
At some point after the collection’s entry into the RJB in 1831, the “Real Expedición” manuscripts were separated from the biological material and integrated into the RJB Archives as reference material. Of the documents related to Cinchona, 12 handwritten descriptions of different species are preserved, of which nine were grouped (Descripciones, n.d.). In addition, the two copies survive of the Nueva Quinología of Pavón, a copy in Madrid (AJB, Div. IV, 15, 1) and the original in London (LMA ACC/1037/855), the latter of which will be discussed in the Kew collection section.
According to Pavón, 41 drawings were completed to illustrate the Nueva Quinología, of which 11 had already been engraved in copper and 30 were still to be engraved (ACN, 21, 396, f. 10). After the official comparison of the material carried out in 1831 with the older Pavón inventories, 712 drawings were reported missing, and we believe that those of Cinchona were among those. It cannot be determined what happened to these as they have never been traced. Possibly they were sold by Pavón to unknown buyers. Today only three of these 41 drawings are preserved in the Madrid collection, which were originally among the Herbarium sheets: Cinchona lucumaefolia varietas (AJB, Div. IV, 2258), Cinchona tarontaron (AJB, Div. IV, 2257) and Cinchona magnifolia (AJB, Div. IV, 2256), all annotated with the species number from the 1831 catalog. All three are unpublished and were intended to illustrate the Nueva Quinología. Regarding the copper plates, three correspond to the second volume of the Flora Peruviana et Chilensis and two are unpublished: Chinchona uritusinga ined. (AJB, Div. IV, C, 539) and Chinchona macrophylla ined. (AJB, Div. IV, C, 34). As in the case of the drawings, these are the only examples that have come down to us of the eleven engraved copper plates made that, according to Pavón, were intended to illustrate his Nueva Quinología.
Connecting the “Real Expedición” sub-collections⌅
Both the Cinchona catalog from 1823 and the list of packages from 1831 allow us to associate the reference material that Pavón had prepared for his publication, the Nueva Quinología. Herbarium sheets, barks, wood, descriptions and drawings were organized around two key pieces of information: species number and package number. Through cross-correlation we can attribute other attributes, such as drawing number, and description number. We can now confidently ascribe to the collection that Pavón formed and used to write his Nueva Quinología seventeen bark packages, forty-nine herbarium sheets, twelve wood sections, three drawings, and two copper plates (see Supplementary Data table https://doi.org/10.6084/m9.figshare.15081633).

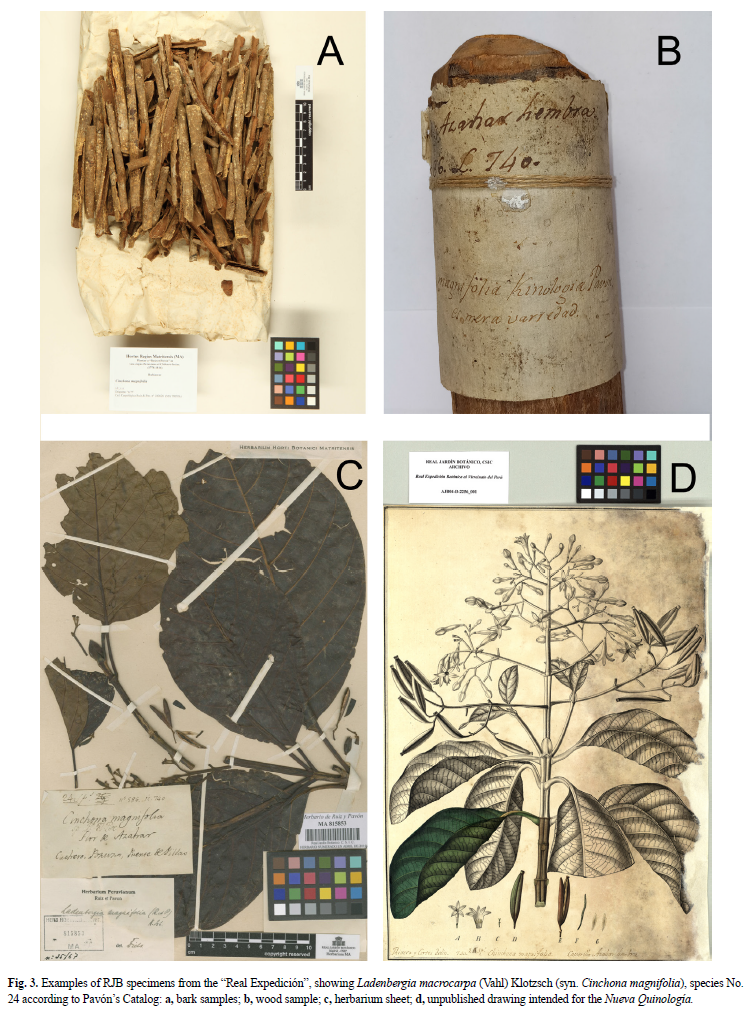

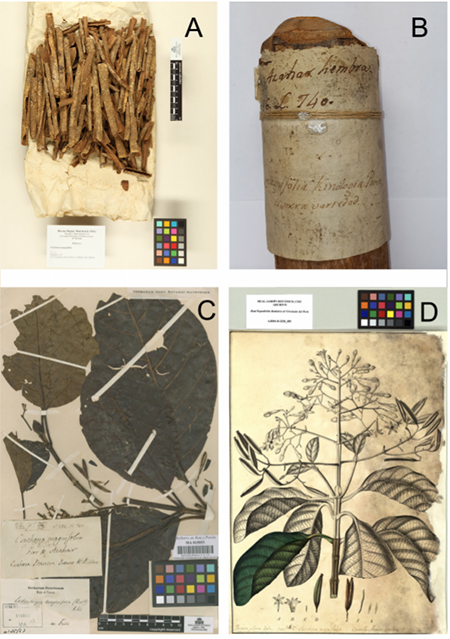

As an example of this, species No. 24 from the Cinchona catalog of 1823: “Cinchona magnifolia... Flor de Azahar, está ya publicada, nada falta… hay tronco y esqueletos” [Translation: Cinchona magnifolia... Flor de Azahar is already published, nothing is lacking... there are wood and herbarium specimens] (AJB, Div. IV, 15, 1, 3, 4v), corresponds to package number 6 in the 1831 list. This gives the following related items, which can be seen in Figure 3:
This specimen was published in the Flora Peruviana (Fl. Peruv. 2: t 196. 1799) and in the Quinología (Ruiz 1792: 71Ruiz H. 1792. Quinología, o tratado del árbol de la quina ó cascarilla. En la Oficina de la Viuda Hijo de, Madrid.), and this set could be considered potential original reference material for Cinchona magnifolia Ruiz & Pav.
The Kew Collection⌅
“Real Expedición” botanical specimens of Cinchona and related genera are kept in the Herbarium (K) (pressed plants) and the Economic Botany Collection (EBC) (seeds, wood and bark), see Table 1. There are also some prints of Cinchona from Ruiz and Pavón’s Flora Peruviana in the Library and Archives Illustrations Collection (Cinchona files).
“Real Expedición” herbarium specimens and illustrations were discovered in Lima by botanist Andrew Mathews (1801-1841) between 1833-1835. He believed them to be those of Ruiz and Pavón, left behind on their return to Spain. The herbarium specimens were then sent to William Jackson Hooker (1785-1865). However, as stated before, these were collected in the latter part of the “Real Expedición”, under Tafalla and Manzanilla between 1788-1816 (Miller 1970Miller H.S. 1970. The herbarium of Aylmer Bourke Lambert: Notes on its acquisition, dispersal, and present whereabouts. Taxon 19: 489-553.; Pupulin 2012aPupulin F. 2012a. The Orchidaceae of Ruiz & Pavón’s “Flora Peruviana et Chilensis”: a taxonomic study. I. Anales del Jardín Botánico de Madrid 69: 21-79.; Tepe 2018Tepe E.J. 2018. A series of unfortunate events: the forgotten botanist and the misattribution of a type collection. PhytoKeys 109: 33-39.). At the time of receiving these herbarium samples, Hooker was Professor of Botany at the University of Glasgow, later joining Kew in 1841. After his death, his personal herbarium was absorbed into Kew’s, being stamped ‘Herbarium Hookerianum, 1867’. Because Mathews had labeled them as ‘Ex Herb R&P’, and then Hooker had written, ‘Mathews, 1833’ etc., some of these specimens have been databased by Kew as collected by Mathews or Ruiz and Pavón, but these records are currently being corrected.
A brief assessment of the rest of the herbarium collection of Cinchona related species shows at least six specimens that can be confidently assigned to Ruiz and Pavón, two from Lambert’s own herbarium. These latter two are attached to the same sheet and are now under the determination of Macrocnemum roseum (syn. Cinchona rosea), and are labelled ‘Herb. reg. Berolinense, Ruiz legit ex. herbario Lamberti’ (K001436606/K001436607). Two other specimens labelled ‘Herb Pavón’, Macrocnemum roseum, 1784, with a “Ruiz/Pavón Expedición” label, 1784 (K001436605), Ladenbergia magnifolia (syn. Cinchona magnifolia), undated, and two Cinchona purpurea (K001337111/K001337112), come from the herbarium of Swiss Botanist William Barbey (K001435731). K001436605 is related to RJB specimen MA885880. How these herbarium specimens arrived at Kew is not clear, though Miller suggests that Lambert specimens at Kew are the result of swapping between the ‘loyal friends’, Lambert and Hooker (Miller 1970, p. 506). There are, in addition, other Lambert Cinchona species with unclear origins which may or may not be part of the Ruiz and Pavón collection. We have also seen further Cinchona herbarium collections from Ruiz and Pavón’s period of collecting in the “Real Expedición” at the Natural History Museum (NHM), London. These were purchased by the British Museum (precursor to the NHM) from the collections of Aylmer Bourke Lambert (see next section).
Because of Covid-19 restrictions, a full assessment of the Lambert-Pavón herbarium, which remained with the British Museum (and now with the NHM, London), was not possible, but there are at least 45 specimens in the Cinchona cupboard alone. Some, but not all, of these herbarium labels also match the names of the barks found at Kew, though they are written in a different hand.
Barks, woods and seeds⌅

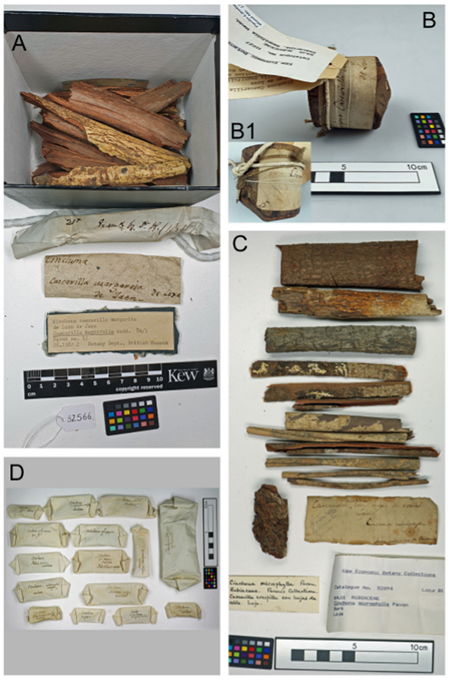

The EBC specimens are relatively recently acquired from two sources. The first were sent by the NHM (BM herbarium) between 1979-1982, when it was deemed that such Cinchona specimens ‘had no logical place in our department’ (Cornish 2011Cornish C. 2011. Shared histories: The collections of the Royal Botanic Gardens, Kew and the Natural History Museum. Report. AHRC Cultural Engagement Fund-Royal Holloway-RBG Kew. On file at Economic Botany Collection, Kew.). These were originally purchased from the estate of British botanist Aylmer Bourke Lambert (1761-1842), who had in turn purchased them from Pavón between 1816-1817. This will be referred to as the Lambert-Pavón collection.
The second accession came from the Royal Pharmaceutical Society (RPS) in 1983 as part of the deaccession of 10,000 “materia medica” items from its Museum (Hudson & Boylan 2013Hudson B. & Boylan M. 2013. The School of Pharmacy, University of London: Medicines, science and society 1842-2012. Elsevier, London.). The donation included a sub-collection of Cinchona specimens received from quinologist and pharmaceutical manufacturer, John Eliot Howard (1807-1883). Howard had purchased “Real Expedición” barks and the original manuscript of the Nueva Quinología, from a ‘botanist in Madrid’ in 1858 (Howard 1862, p. ii). The botanist had allegedly bought these either direct from Pavón at the time of his death or shortly after, and offered them to Howard for a cost of 500 duros (RBGK Archives, unsigned, undated manuscript, JEH/1/14). These will be referred to as the Howard-Pavón collection.
An overview of the two collections can be seen in Table 1 and an excel spreadsheet with further details in supplementary data (https://doi.org/10.6084/m9.figshare.15081633).
The Lambert-Pavón collection⌅
Aylmer Bourke Lambert was a British botanist and a co-founder of the Linnean Society. Lambert had wide-ranging interests, including Cinchona, publishing works on the genus in 1797 and 1821 (Lambert 1797Lambert A.B. 1797. A description of the genus Cinchona. B. & J. White, London.; Lambert 1821Lambert A.B. 1821. An illustration of the genus Cinchona. Printed for J. Searle, London.). To further his botanical knowledge, Lambert negotiated with Pavón, in the year of Ruiz’s death, to buy the herbarium ‘containing nearly all of the plants collected’ from the Flora Peruviana for £1500. The collection also included bark specimens, woods and mixed fruits and seeds, arriving in batches between 1816 and 1817 (Lambert 1821Lambert A.B. 1821. An illustration of the genus Cinchona. Printed for J. Searle, London.; Howard 1853Howard J.E. 1853. Examination of Pavon’s collection of Peruvian barks contained in the British Museum. C. Whiting, London.; Steele 1964Steele A.R. 1964. Flowers for the king: The expedition of Ruiz and Pavon and the Flora of Peru. Duke University Press, Durham.; Miller 1970Miller H.S. 1970. The herbarium of Aylmer Bourke Lambert: Notes on its acquisition, dispersal, and present whereabouts. Taxon 19: 489-553.). Details of the full history of this acquisition and its later sale to institutes after Lambert’s death are given by Miller (1970)Miller H.S. 1970. The herbarium of Aylmer Bourke Lambert: Notes on its acquisition, dispersal, and present whereabouts. Taxon 19: 489-553..
The sale appears to have been undertaken in secrecy. Mariano Lagasca was the Professor of the RJB from 1807, and Director from 1815, during which time Pavón, located in the “Oficina de Flora”, sold the specimens. Whether Lagasca had known of their sale at the time is not known, but during his exile to London between 1823 and 1834 he visited Lambert’s collection. A visitor to Lambert’s house around 1827 noted “Whilst we were employed in viewing Count Lambert’s treasures, a little man dressed in black entered the apartment; and he cast a glance full of sorrow and indignation upon some packages which belonged to the herbarium of Ruiz and Pavón” and on enquiry discovered this to be Lagasca (Schultes 1830, p. 63Schultes J. 1830. Schultes’ botanical visit to England. Botanical Miscellany 1: 48-78.). The motivations behind Pavón’s decision to sell the collections after the death of Ruiz is not known but rivalry with Lagasca, desire for greater recognition and financial issues may have motivated these sales.
Letters to Lambert from Pavón in Kew’s archives, given to William Hooker by a trustee of Lambert’s estate (Miller, 1970Miller H.S. 1970. The herbarium of Aylmer Bourke Lambert: Notes on its acquisition, dispersal, and present whereabouts. Taxon 19: 489-553.), evoke this general atmosphere. Pavón appears to be maneuvering himself for greater recognition within the botanical world and his collections provided economic as well as social currency. The letters discuss the sale and include Pavón making proprietorial references to ‘my herbarium’ (RBGK Archives, Lambert Letters, J.A. Pavón to A.B. Lambert, 25 May 1820, f.153) and contain disparaging comments by Pavón who calls Lagasca ‘Sujeto’ (subject / this individual) (RBGK Archives, Lambert letters, letter from J.A. Pavón to A.B. Lambert, 9 August 1815, f.107). Pavón later also asks for other favours, such as ordering a gold watch from London (RBGK Archives Lambert Letters, J.A. Pavón to A.B. Lambert, 25 May 1820, f. 153). Lambert also proposed Pavón as a Foreign Member of the Linnean Society, which was eventually achieved in 1820 (Steele, 1964Steele A.R. 1964. Flowers for the king: The expedition of Ruiz and Pavon and the Flora of Peru. Duke University Press, Durham.). However, this sale was not without consequences for Pavón; as previously mentioned, the 1831 inventory of the collections found significant losses, and his employment and salary were terminated (Rodríguez Nozal, 1993Rodríguez Nozal R. 1993. La Oficina de la Flora Americana (1788-1835) y la marginación del proyecto de las expediciones botánicas ilustradas. Ph.D. dissertation, Universidad Complutense de Madrid, Madrid. ).
Lambert’s purchase included a herbarium of ‘numerous specimens, both in flower and fruit, of all the species of the highly interesting genus Cinchona’ (Lambert & al. 1821, p. 7Lambert A.B. 1821. An illustration of the genus Cinchona. Printed for J. Searle, London.). He also describes 44 bark samples (Table 2), 36 wood sections (with labels in Pavón’s hand), and a collection of Cinchona capsules with seeds (Howard 1853Howard J.E. 1853. Examination of Pavon’s collection of Peruvian barks contained in the British Museum. C. Whiting, London.). Pavón also sent three lists corresponding to the barks and woods. Lambert published a description of Cinchona as well as a list of his bark specimens (names based on Pavón’s second list) in the Illustrations of the genus Cinchona (Lambert 1821, p. 95Lambert A.B. 1821. An illustration of the genus Cinchona. Printed for J. Searle, London.). After Lambert’s death, the British Museum bought the collection of herbarium and barks (Miller 1970, p. 539Miller H.S. 1970. The herbarium of Aylmer Bourke Lambert: Notes on its acquisition, dispersal, and present whereabouts. Taxon 19: 489-553.). These were later described as the ‘largest original collection of Cinchona barks in England’, and described as being in their original packaging, probably like the Madrid specimens today (Howard 1853, p. 1Howard J.E. 1853. Examination of Pavon’s collection of Peruvian barks contained in the British Museum. C. Whiting, London.). Today, the labels on the Kew specimens match the packaging and handwriting of the bark specimens in Madrid but the labels seem to have been cut down to size from the annotations on the larger original wrapping, the author is unknown but possibly Manzanilla (Howard 1853, pp. 2-3Howard J.E. 1853. Examination of Pavon’s collection of Peruvian barks contained in the British Museum. C. Whiting, London.). An example of these can be seen in Figure 4a
|No. of Lambert-Pavón specimens||56||35||23 packets
(under 1 accession)
|No. of Howard-Pavón specimens||16||0||0||16|
(under 1 accession)
Quinologist and quinine manufacturer John Eliot Howard and pharmacologist Jonathan Pereira (1804-1853) studied the Lambert-Pavón collection with Howard publishing an overview, in the year of Pereira’s death, in An Examination of Pavón’s collection of Peruvian barks contained in the British Museum (with a later appendix) (Howard 1853Howard J.E. 1853. Examination of Pavon’s collection of Peruvian barks contained in the British Museum. C. Whiting, London., 1855Howard J.E. 1855. Appendix to the examination of Pavon’s collection of Peruvian barks contained in the British Museum. C. Whiting, London.).
Howard described the barks as ‘almost bewildering otherwise in their unclassified state’ and brought his own reference specimens to help analyse and arrange them (Howard 1853, p. 2Howard J.E. 1853. Examination of Pavon’s collection of Peruvian barks contained in the British Museum. C. Whiting, London.). Howard noted that 7 of the original 44 barks were missing, but 36 woods remained. Howard created a reference table in the publication to display the relationships of the barks to the woods using the original numbers for the barks as published in Lambert’s Illustrations and the three lists Lambert also received from Pavón. The numbers for the woods were taken from the ones found written on the stump ends. This numbering has aided the matching up of many of the EBC wood and bark specimens to the Howard and Lambert (Pavón) lists (see supplementary data table https://doi.org/10.6084/m9.figshare.15081633). The 36 woods survive (now at EBC), numbered 1 to 37, with no specimen numbered 34. An example of these can be seen in Figure 4b.

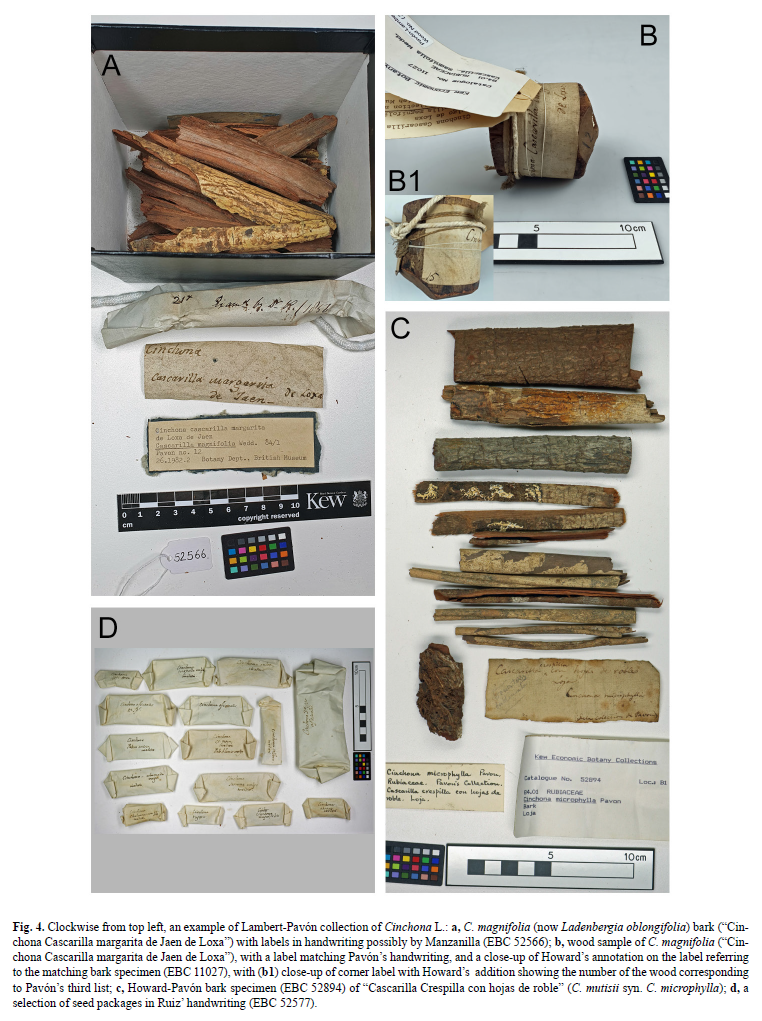

In his table, Howard (1853)Howard J.E. 1853. Examination of Pavon’s collection of Peruvian barks contained in the British Museum. C. Whiting, London. mentions more barks than are shown in Lambert’s original list of 44, but it is not clear exactly how many barks Howard actually saw in the collection due to the confusing numbering system used in his reference tables (Howard 1853Howard J.E. 1853. Examination of Pavon’s collection of Peruvian barks contained in the British Museum. C. Whiting, London.). His system is based on cross-referencing the three different Pavón lists he saw, leading to occasionally overlapping numbers. On the woods, Howard added a small number in the bottom left hand corner that matches the wood to Pavón’s ‘third list’. The species he assigns them to can be matched to the Nueva Quinología (1826) which is also the same as Pavón’s 1823 catalog (AJB, Div. IV, 15, 1, 3). Under each species in those lists, common trade bark names can be found which correspond with the barks examined by Howard. In letters kept at Kew from Pavón to Lambert, 53 barks appear to have been sent which may explain some of the difference between the 44 barks listed in Lambert’s publication with the amount Howard saw later (RBGK Archives, Lambert letters, letter from J.A. Pavón to A.B. Lambert, 1816, f.115). Howard further explains one reason for this difference, noting: ‘there are eight packets, of which no account can be given, except that they appear to have been obtained from the same quarter’ (i.e. Pavón’s sale to Lambert) (Howard 1853, p. 31Howard J.E. 1853. Examination of Pavon’s collection of Peruvian barks contained in the British Museum. C. Whiting, London.). At Kew, there are now 56 Lambert-Pavón barks surviving.
Lambert’s purchase included Cinchona seeds in paper packages. The original number purchased is not known, but today there are 23 packets accessioned under one number (EBC 52577). Howard does not mention these in his assessment of the collection. These seed packets can be seen in Figure 4c and have the same paper folding technique and handwriting found on other seeds collected by Ruiz and Pavón in the RJB. In Pupulin’s examination of the Orchidaceae of the “Real Expedición”, the orchid seed packages shown match the paper and folding technique, and the handwriting is thought to be Pavón’s (Pupulin, 2012b, p. 180Pupulin F. 2012b. The Orchidaceae of Ruiz & Pavón’s “Flora Peruviana et Chilensis”. A taxonomic study. II. Anales del Jardín Botánico de Madrid 69: 143-186. ).
It is curious that no Cinchona seeds survive in Madrid, leading to the question of why such a valuable resource (with potential for cultivation) was not used by the Spanish. The surviving seeds do not appear in the RJB’s seed book listing all those that entered the garden for planting, and hence we know their absence is not because they were planted in the garden. Perhaps Ruiz and Pavón knew the seeds were no longer viable by the time of their return to Spain (Cinchona seeds have a short shelf life). Alternatively, they may have become detached from herbarium specimens, as some of the names roughly match those found in the NHM, London, which bear fruiting material.
The Howard-Pavón collection⌅
After studying the Lambert-Pavón collection, Howard felt that ‘...the subject was left in an incomplete, and therefore unsatisfactory state; and I could not help surmising that there must remain at Madrid further results of the labours of the Spanish botanists which might throw light on the many questions still left in obscurity’ (Howard 1862, p. iiHoward J.E. 1862. Illustrations of the Nueva Quinología of Pavon. Lovell Reeve & Co., London.). Howard made enquiries and in 1858 purchased a collection of 54 barks and the original manuscript of the Nueva Quinología (ca. 1826), in Pavón’s hand (Figure 5) ‘from a botanist in Madrid’ (Howard 1862, p. iiHoward J.E. 1862. Illustrations of the Nueva Quinología of Pavon. Lovell Reeve & Co., London.). The Madrid botanist may have been Miguel Colmeiro. Researcher Eduardo Estrella suggests this because Colmeiro published La botánica y los botánicos de la península hispano-lusitana, also in 1858, in which he mentions the Nueva Quinología manuscript (Colmeiro 1858, p. 48Colmeiro M. 1858. La Botánica y los botánicos de la Península Hispano-Lusitana. Imprenta y estereotipia de M. Rivadeneyra, calle de la Madera baja, Madrid.). The manuscript and specimens were kept for a short time by Colmeiro, presumably until 1858 (Estrella 1987Estrella E. 1987. Contribución al estudio de la obra quinológica de José Pavón. Asclepio 49: 27-52.). In addition, the barks Howard bought have labels that relate them to the specimens that are now in the faculty of Pharmacy Universidad Complutense, also likely sent there by Colmeiro (see Figure 4d). For an overview of the specimens, see Table 2.

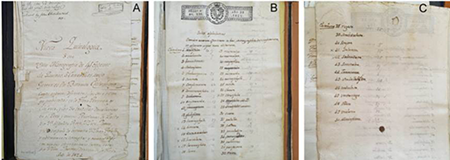

The manuscript Howard purchased, the Nueva Quinología, is now held by the London Metropolitan Archives (LMA ACC/1037/855), deposited as part of the Howard family business archives in 1969. On the manuscript folder, a letter is attached, dated 2 February 1858, Hippolyte Bailliere, a scientific book dealer acting as intermediary, informing Howard of the sending of the manuscript from Madrid. Bailliere also writes that Vicente Cutanda, professor of the RJB, is sending a written list of herbarium species there for information ‘but are not to be sold and therefore cannot be got’. An excerpt of the manuscript can be seen in Figure 5.
As Howard was unable to procure the herbarium specimens for himself, he sent the botanical artist, Walter Hood Fitch (1817-1892) to illustrate them from the pressed specimens, in effect replacing the lost Ruiz and Pavón illustrations. These botanical plates, along with microscopical analyses were published in the Illustrations of the Nueva Quinología of Pavón (Howard 1862Howard J.E. 1862. Illustrations of the Nueva Quinología of Pavon. Lovell Reeve & Co., London.). Some of these original Fitch sketches and illustrations can be found in the archives at Kew, which contain a note from H. Bailliere (to Howard, dated 1 June 1860) regarding them. In the same file is also a series of preliminary pencil sketches and 12 original illustrations created by Fitch from the Madrid herbarium, some of which became plates for Howard’s 1862 publication Illustrations of the Nueva Quinología of Pavón (file in Kew’s Illustrations collection under Cinchona, no reference number).

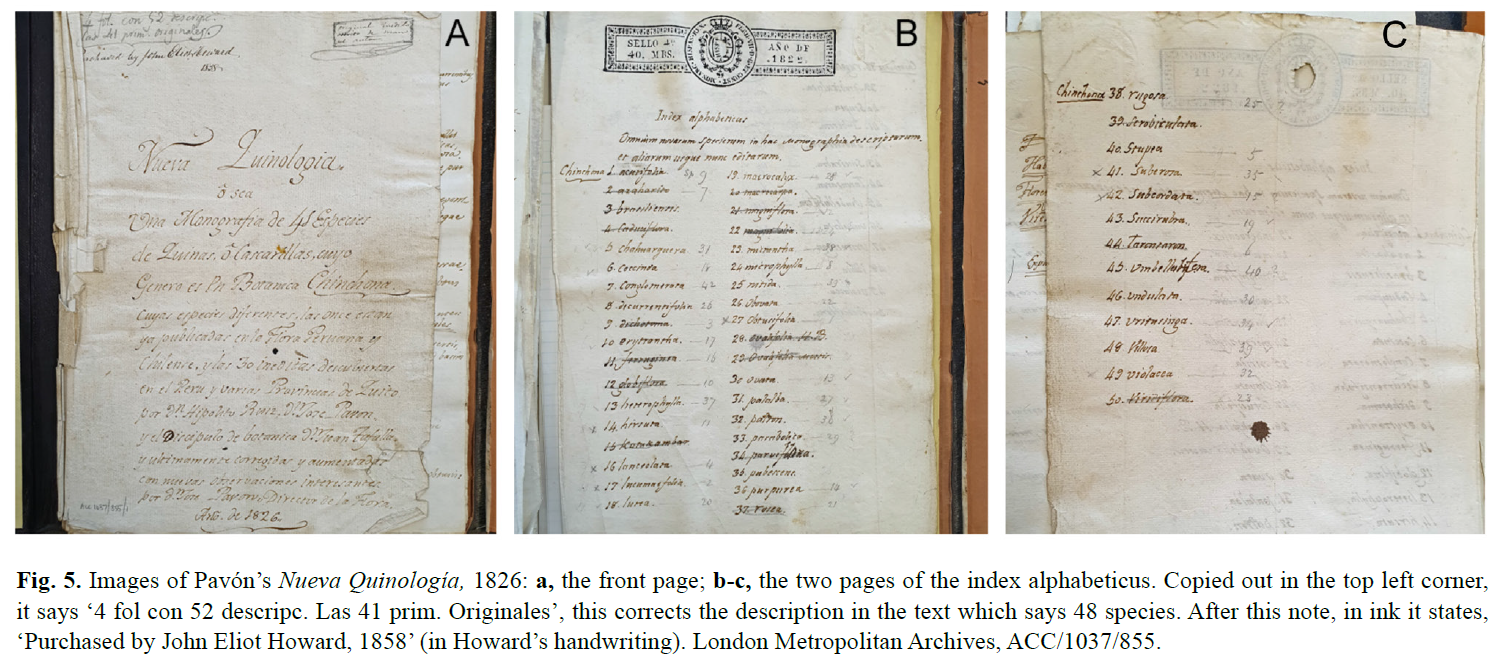

The specimens in the manuscript were listed alphabetically (Fig. 5), but Howard renumbered them in pencil to match Pavón’s original species list, matching the 1823 Catalog (AJB, Div. IV, 15, 1, 3). In Howard’s published edition of Illustrations of the Nueva Quinología of Pavón, he lists the species corresponding to Pavón’s list, and then under each species description, he lists barks by trade name. These trade names can also be found in the list of barks and woods he provides in the Examinations.
Most of the Howard-Pavón barks are, however, lost to time. In 1952, the collection was redistributed, probably owing to a restructure of Howard’s family business, Howards and Sons who acted as caretakers of the collection (Richmond & Stevenson 2003Richmond L. & Stevenson J. 2003. The pharmaceutical industry: a guide to historical records. Routledge, London.). The RPS Museum had previously received donations of Cinchona barks directly from John Eliot Howard throughout his career (Howard 1854Howard J.E. 1854. Observations on the specimens of Peruvian bark presented to the Museum of the Pharmaceutical Society, May 17th, 1854. Pharmaceutical Journal and Transactions 14: 61-63.; Hudson & Boylan 2013Hudson B. & Boylan M. 2013. The School of Pharmacy, University of London: Medicines, science and society 1842-2012. Elsevier, London.). In January 1952 Howard’s collection of 292 trade-collected barks, housed in a walnut cabinet, was accessioned into the Museum. Later in October, another list of specimens was offered to the RPS (Anthony Howard to J.M. Rowson, Pharmaceutical Society of Great Britain, Ref JAEH/GC, 28 October 1952; RPS File 88, Cinchona shelves, Economic Botany Collection, Royal Botanic Gardens, Kew). This was a selection of about 600 further barks, including ones sourced from other scientists, but the RPS accepted only 120. This list, with its checked selections by the RPS still exists (‘Catalogue of Cinchona bark collection’, 1952, London Metropolitan Archive ACC/1037/695). Although the compiler gives the scientific names of the barks, other data such as collectors and dates rarely appear, as the list is an non-expert inventory rather than an historical assessment. Pavón materials are therefore difficult to identify within it. It is clear from the ticked choices that the Society decided to make selections to fill ‘gaps’ of missing (and thus rare) species rather than accepting the entire collection, probably due to limitations of space. By the 1950s, use of the RPS Museum specimens for education was in any case declining (Hudson & Boylan 2013Hudson B. & Boylan M. 2013. The School of Pharmacy, University of London: Medicines, science and society 1842-2012. Elsevier, London.). This form of decision-making has been noted before in botanical collections, in what was called historically at Kew, ‘intercalation’ (Cornish 2013, p.248Cornish C. 2013. Curating science in an age of empire Kew’s Museum of Economic Botany. Ph.D. dissertation, Royal Holloway, University of London, Egham. ). Within the barks that were chosen, only 16 specimens that can be identified as Pavón barks were retained, likely by chance because they were examples of uncommon species with older, unusual names. Of these, there are 10 Cinchona, 4 Ladenbergia (syn. Cascarilla), 1 Remijia and 1 Pimentelia barks. An example of these barks and their distinctive labels, distinct from the Lambert collection, can be seen in Figure 4d. More often than not, curators at the RPS repackaged the barks and the older labels were discarded (possibly due to being affixed to older packaging) and a transcribed label put in their place. When the RPS transferred their entire “Materia Medica” collection to Kew in 1983, they reserved a small collection which included around 33 Howard associated Cinchona barks. Of these, there is some evidence around 4 may be Pavón barks, though due to COVID-19 restrictions, the collections were unavailable for access.
Further research has shown that other specimens were sent to the Wellcome Historical Medical Museum (now the Wellcome Collection, on loan to London’s Science Museum). In 1958, Anthony Howard donated 79 specimens to the museum, made up of about 30 barks and 50 alkaloid samples (Wellcome Collection; archives of the Wellcome Historical Medical Museum and Library; Cinchona Tercentenary Collections; WA/HMM/EX/C/5). There are also hints that some barks remained with the museum after an earlier exhibition. In 1930, the Wellcome Collection invited Howards and Sons to provide barks for display at their Cinchona Tercentenary Exhibition, marking the approximate tercentenary of the discovery of the anti-malarial drug. Many items were lent, including 84 bark samples from the company’s collection and a further 44 Pavón barks, the latter numbered 1059-1102 in the exhibition handbook (Wellcome Institute 1930, pp. 20, 107Wellcome Institute. 1930. Souvenir Cinchona tercentenary celebration and exhibition at the Wellcome Historical Medical Museum. The Wellcome Foundation Ltd, London.). Several of the RPS-Howard-Pavón barks now at Kew still retain the exhibition display numbers, confirming they are the same items. For some Cinchona samples accessioned into the collection, the accessioner pencilled in ‘...the source is not stated, I suggest that the exhibits may have been presented by Howards and Sons at the time of the tercentenary’ (Wellcome Collection, Museum Accessions Register Vol 31: note found between Accession No.s 46 and 47 but referring to accession no.s 43 to 83/1958, WA/HMM/CM/Acc/51). However, a letter at the time of the Tercentenary Exhibition clearly shows that the Howards and Sons display was only on loan with a request for advanced notice of their return (Wellcome Collection: Tercentenary Exhibition ‘H’ General Correspondence WA/HMM/EX/C.19: Lloyd Howard to L. Malcolm, Curator, 25 November 1930). Potentially some or all of these barks may have not been returned, remaining in storage and being formally accessioned into the register by 1958. This may have been coincidental to Anthony Howard’s donation or triggered by it (Wellcome Collection ‘Wellcome Historical Medical Museum and Library Index Cards’ 347/1958-427/1958). The Wellcome Collection specimens are now held by the Science Museum and are currently inaccessible. They remain a subject for further research.
Incidentally, the Wellcome Collection also contains other “Real Expedición” items, donated in 1930 to the Tercentenary Exhibition by King Alfonso XIII of Spain. These include three packaging cases with barks, used to transport Cinchona materials: one rawhide ‘seron’, and two wooden & hide ‘corachas’ (Science Museum, A654763, A655407 and A654761) (Wellcome Institute 1930, p. 17Wellcome Institute. 1930. Souvenir Cinchona tercentenary celebration and exhibition at the Wellcome Historical Medical Museum. The Wellcome Foundation Ltd, London.).
It is not known what happened to the remainder of Howard’s Cinchona bark collection, but it is likely to have been eventually discarded. The London Metropolitan Archives contain the Howards and Sons business archives and may provide an answer, but so far no note has been unearthed. No barks were donated to Kew at this point, and it is not thought to have passed to descendants, with whom the authors of this paper are in communication.
Descriptions and drawings⌅
None of the missing “Real Expedición” images have been found at Kew. Nor have they been identified through preliminary enquiries to the British Museum and the Natural History Museum.
Reconnecting the “Real Expedición” Collections at Madrid and Kew⌅
Under modern collecting protocols a unique numerical reference is assigned to specimens at the point of collection, acting (in combination with the collector name) as a key to associated data such as field notes, seeds, ethnobotanical items and genetic samples. However Ruiz and Pavón, in common with collectors of their time, did not follow this approach. Inventory lists sent to Madrid contain sets of numbers which do not match specimens that followed. Nor was the maintenance of these identification systems always effectively curated after collection, with reorganizations leading to relabeling and renumbering. In addition, not all barks may have been collected at the same time as herbarium specimens, such as the barks derived from commerce sent over after 1803, and it is possible that some of those at Kew include this type (ACN, 17, 305, f. 1).
We have been successful in establishing relationships between some of the different categories of specimens within the Madrid and Kew collections, in particular in linking Madrid specimens to the Nueva Quinología manuscript of 1826, and Kew specimens to Howard’s 1853Howard J.E. 1853. Examination of Pavon’s collection of Peruvian barks contained in the British Museum. C. Whiting, London. study, but mostly unsuccessful in our original intention, to correlate the specimens held in the two institutes. There are no unique reference numbers which would enable us to match specimens between the two collections. Trade names and species names sometimes match, but these can be misleading. These specimens were not historically handled as ‘duplicates’ in the modern botanical sense of the word (‘multiple specimens from a single herbarium gathering’; Beentje & Williamson 2016, p. 45Beentje H. & Williamson J. 2016. The Kew plant glossary: an illustrated dictionary of plant terms. ed. 2. Kew Publishing, Richmond.), rather they were considered exemplars of the same species, used for redistribution, a phenomenon recently noted in Kew’s Economic Botany Collection (Cornish & Driver 2019Cornish C. & Driver F. 2019. ‘Specimens Distributed’: The circulation of objects from Kew’s Museum of Economic Botany, 1847-1914’. Journal of the History of Collections 32: 327-340.).
In the case of the barks, woods and seeds at Kew, links to Madrid herbarium and illustration numbers have not been found, though in some cases this may be due to them being barks of commerce. It is likely that when these were split from the original Madrid samples, their purpose evolved away from their original collection structure as linked “Real Expedición” bark-wood-herbarium specimens. Instead, once separated they became a discrete set of orphaned reference samples. However, we were able to identify several lists of numbers applied in Madrid and Kew that clarify specimen relationships. In the Kew collections, any numbers associated with specimens are usually consecutive, e.g. if there are 36 barks, they are numbered 1-36 and only relate to that discrete collection. Other associated numbers also refer to other systems. Pavón’s species list, discussed in the section on the Howard-Pavón collection, assigns species a number between 1 to 50. Howard additionally renumbered this list in pencil to align it to Ruiz’s original list, then organized the barks in the publication under the species classification of British-French quinologist Hugh Weddell (1819-1877). There are frequent overlaps in numbers which cause confusion.
Visual matching of the barks at Kew and Madrid was also attempted though we found it difficult to assess similarity in appearance. The woods at Kew do not match names and circumference/diameter dimensions of the woods in Madrid, and therefore do not seem to have been simply chopped from the ends of the trunks for distribution. The wood specimens at Kew are larger, more uniform and bear different names than those found in Madrid, which may be evidence for Pavón selling the best of the collection to Lambert.
Conclusions and future research⌅
Due to the complex relationships between Spanish botanists, difficulty with the taxonomy of the genus, and unstable politics both in Spain and in its colonies, the collecting, naming and curating of the Cinchona materials from the “Real Expedición” was messy, complicated, and ultimately unfinished. The sale of part of the collections by Pavón and later botanists further fragmented the collection. The ultimate logic behind how the Ruiz and Pavón collection was split into parts and sold to other botanists remains unclear. However, we have made significant progress in understanding the organization and numbering systems subsequently applied to the specimens in Madrid and Kew.
Although we found no direct correspondence between the specimens and the collecting itinerary of the “Real Expedición”, nor between the specimens in Madrid and Kew, these collections remain an important research resource. The lack of traditional provenance data reinforces the importance of genetic analysis as a means to determine the species and geographical origin of specimens, and as a means to test whether some are true duplicates. Such work would enable a rich, renewed investigation of the collecting and naming practices of the botanists of the “Real Expedición”.
