Anales del Jardín Botánico de Madrid 78 (1)
January-June 2021, e105
ISSN-L: 0211-1322
https://doi.org/10.3989/ajbm.2570

Henckelia khasiana, a new species of Gesneriaceae from India

Henckelia khasiana, una nueva especie de Gesneriaceae de la India

Santhosh Nampy

Department of Botany, University of Calicut, Kerala, 673635, India.

https://orcid.org/0000-0001-5744-7522

Mannar K. Akhil

Department of Botany, University of Calicut, Kerala, 673635, India.

https://orcid.org/0000-0002-2511-0885

Mohan Vishnu

Department of Botany, University of Calicut, Kerala, 673635, India.

https://orcid.org/0000-0001-7702-9184

ABSTRACT

A new species of Henckelia (Gesneriaceae) is here described and illustrated. It is morphologically most similar to H. oblongifolia but differs in having lanceolate calyx lobes, two prominent longitudinal flaps on the inner surface of the corolla tube, bilobed stigma and tomentose capsules. A detailed description of the new species with colour photographs, affinities and a comparison with related species is given. Based on the present data, the new species is provisionally assessed as Critically Endangered (CR) according to IUCN Red List Categories and Criteria.

Keywords
Conservation status; East Khasi Hills; Mawsynram; Meghalaya; taxonomy.
RESUMEN

Se describe e ilustra una nueva especie de Henckelia (Gesneriaceae). Esta nueva especie es similar a H. oblongifolia, de la que se diferencia por tener lóbulos del cáliz lanceolados, dos láminas longitudinales prominentes en la superficie interna del tubo de la corola, estigma bilobulado y cápsulas tomentosas. Se proporciona una descripción detallada de la nueva especie y fotografías en color de sus principales órganos. Sobre la base de los datos actuales, se evalúa provisionalmente como en Peligro Crítico (CR) de acuerdo con las categorías y criterios de la Lista Roja de la IUCN.

Palabras clave
Estado de conservación; East Khasi Hills; Mawsynram; Meghalaya; taxonomy.

Received: 21  August  2020; Accepted: 19  January  2021; Published online: 08 June 2021

Associate Editor: Alejandro Quintanar

How to cite this article: Nampy S., Akhil M.K., Vishnu M. 2021. Henckelia khasiana, a new species of Gesneriaceae from India. Anales del Jardín Botánico de Madrid 78: e105. https://doi.org/10.3989/ajbm.2570

CONTENT

INTRODUCTION



The genus Henckelia Spreng. (Gesneriaceae, Didymocarpoideae) was originally established by Sprengel (1817)Sprengel K. 1817. Fam. XXIX. Perfonaten. Anleitung Zur Kenntniss der Gewächse, Zweite 2: 390-406. , but subsequently sunk into the synonymy of Didymocarpus Wall. It was later resurrected by Weber & Burtt (1998)Weber A. & Burtt B.L. 1998. Remodelling of Didymocarpus and associated genera (Gesneriaceae). Beiträge zur Biologie der Pflanzen 70: 293-363. to include c. 180 species worldwide. Later on, it was remodelled to include only the members of H. sect. Henckelia, Chirita sect. Chirita Buch.-Ham. (excluding the species under Damrongia Kerr ex Craib), and the monospecific genus Hemiboeopsis W.T.Wang, excluding the species of H. sect. Loxocarpus (R.Br.) A.Weber & B.L.Burtt, Didymanthus (C.B.Clarke) A.Weber & B.L.Burtt, Heteroboea (Benth.) A.Weber & B.L.Burtt and Glossadenia A.Weber & B.L.Burtt (Weber & al. 2011Weber A., Middleton D.J., Forrest A., Kiew R., Lim C.L., Rafidah A.R., Yao T.L. & Möller M. 2011. Molecular systematics and remodelling of Chirita and associated genera (Gesneriaceae). Taxon 60: 767-790.; Middleton & al. 2013Middleton D.J., Weber A., Yao T.L., Sontag S. & Möller M. 2013. The current status of the species hither to assigned to Henckelia (Gesneriaceae). Edinburgh Journal of Botany 70: 385-403. ). According to recent estimates Henckelia has 71 species distributed from India, Sri Lanka, Myanmar, Nepal, Bhutan, Southern China, Northern Vietnam, Northern Laos and Northern Thailand, of which approximately 50% are found in India (Manudev & al. 2012Manudev K.M., Weber A. & Nampy S. 2012. Henckelia pradeepiana, a new species of Gesneriaceae from southern Western Ghats, India. Rheedea 22: 119-123.; Middleton & al. 2013Middleton D.J., Weber A., Yao T.L., Sontag S. & Möller M. 2013. The current status of the species hither to assigned to Henckelia (Gesneriaceae). Edinburgh Journal of Botany 70: 385-403. ; Sukumaran & Kumar 2014Sukumaran E. & Kumar S. 2014. A new combination in Henckelia (Gesneriaceae). Polish Botanical Journal 59: 149.; Ranasinghe & al. 2016Ranasinghe S., Milne R., Jayasekara R., Rubasinghe S. & Möller M. 2016. Henckelia wijesundarae (Gesneriaceae), a new endemic species from Sri Lanka, and lectotypification of Chirita walkerae and C. walkerae var. parviflora. Willdenowia 46: 213-224.; Sinha & Datta 2016Sinha B.K. & Datta S. 2016. Taxonomic account of the family Gesneriaceae in northeast India. Nelumbo 58: 1-43.; Möller & al. 2017Möller M., Nampy S., Janeesha A.P. & Weber A. 2017. The Gesneriaceae of India: Consequences of updated generic concepts and new family classification. Rheedea 27: 23-41.; Krishna & Lakshminarasimhan 2018Krishna G. & Lakshminarasimhan P. 2018. A new species of Henckelia (Gesneriaceae) from Arunachal Pradesh, India. Taiwania 63: 397-401. ; Sirimongkol & al. 2019Sirimongkol S., Parnel J.A.N., Hodkinson T.R., Middleton D.J. & Puglisi C. 2019. Five new species of Henckelia (Gesneriaceae) from Myanmar and Thailand. Thai Forest Bulletin (Botany) 47: 38-54.; Bin & al. 2019Bin Y., Ding H.B., Fu K.C., Yuan Y.K., Yang H.Y., Jian W.L., Zhang L.X. & Tan Y.H. 2019. Four new species of Gesneriaceae from Yunnan, Southwest China. PhytoKeys 130: 183-203.; Cai & al. 2019Cai L., Liu D.T., Zhang P. & Dao Z.L. 2019. Two new species of Henckelia (Gesneriaceae) from South eastern Yunnan, China. In: Cai J., Yu W-B., Zhang T. & Li D-Z. (ed.), Revealing of the plant diversity in China’s biodiversity hotspots. PhytoKeys 130: 151-160.; Borah & al. 2019Borah D., Taram M., Joe A. & Neelamkavil S.V. 2019. Henckelia collegii- sancti-thomasii: a new species of Henckelia (Gesneriaceae) from Northeastern India. Phytotaxa 415: 247-251.; Kanthraj & al. 2020Kanthraj A.S., Rana T.S. & Nair K.N. 2020. Henckelia umbellata (Gesneriaceae), a new species from the eastern Himalaya of India. Rheedea 30: 143-149.; Janeesha & Nampy 2020Janeesha A.P. & Nampy S. 2020. A taxonomic revision of Henckelia (Gesneriaceae) in South India with a new species, one new combination and seven lectotypifications. Rheedea 30: 48-95.; Taram & al. 2020Taram M., Borah D., Taku O. & Tag H. 2020. Henckelia siangensis (Gesneriaceae): a remarkable new species from Northeast India. PhytoKeys 160: 1-6.; Singh & al. 2020Singh R.K., Arigela R.K., Borah D. & Taram M. 2020. Henckelia collegii-sancti-thomasii (Gesneriaceae), a new synonym of narrow endemic species H. hookeri of Northeast India. NeBIO 11: 205-207.).

The authors while revising the taxonomy of the family Gesneriaceae in India, came across some interesting specimens of Henckelia from Mawsynram in East Khasi Hills district of Meghalaya. Critical examination of the specimens at various herbaria (ARUN, ASSAM, BM, CALI, E, K) and the study of relevant literature revealed that they were morphologically close to H. oblongifolia (Roxb.) D.J.Middleton & Mich.Möller in having caulescent habit, axillary inflorescence with dichotomously branching peduncles, persistent calyx and corolla with yellow lines on the throat; but they also differed in other characters related to the nature and pubescence of leaves, calyx and corolla, fusion of anthers, structure and colour of staminodes, shape of stigma, among others. Differences that will be discussed below led us to describe, on the basis of the mentioned specimens, a new species.

MATERIALS AND METHODS



The new species is described on the basis of field observations and the examination specimens of Henckelia collected in India, including types at ARUN, ASSAM, BM, CAL, CALI, E, K, MA (acronyms following Thiers, 2020Thiers B. 2020 [continuously updated]. Index Herbariorum: a global directory of public Herbaria and associated staff. New York Botanical Garden’s Virtual Herbarium, New York. http://sweetgum.nybg.org/science/ih/ [accessed 25 Jun 2020]. continuously updated). Herbarium specimens were prepared following the procedure by Forman & Bridson (1989)Forman L. & Bridson D. 1989. The herbarium handbook. Kew: Royal Botanic Garden. . Specimen images and species names were all checked from JSTOR Global Plants (http://plants.jstor.org), Tropicos (http://www.tropicos.org) and the International Plant Names Index (http://www.ipni.org). Protologues and relevant literature were examined and the description was prepared following Stearn (1992)Stearn W.T. 1992. Botanical Latin: History, Grammar, Syntax, Terminology and Vocabulary ed. 4. Timber Press, Portland.. Photographs of the plants in the field were taken with an α-55 DSLR Camera (Sony, Japan) and those of floral parts with a stemi 508 stereomicroscope (Zeiss, Germany) attached to an Axiocam 105 colour camera. A distribution map was created using the maps from d-maps.com (https://d-maps.com/index.php?lang=en). The provisional conservation threat assessment followed IUCN Categories and Criteria (IUCN 2019IUCN 2019. Guidelines for using the IUCN Red List Categories and Criteria, Version 14. - Prepared by the Standards and Petitions Committee. ).

RESULTS AND DISCUSSION



Henckelia khasiana Nampy & Akhil, sp. nov. Type: India. Meghalaya: East Khasi Hills district, Mawsynram, 25º18’33”N, 91º34’53”E, 1366 m, 8 Oct. 2017, Nampy & Vishnu 156840 (holotype: CALI!; isotypes: MA!, CAL!). Fig. 1.

medium/medium-AJBM-78-01-e105-gf1.png
Fig. 1.  Henckelia khasiana Nampy & Akhil sp. nov.: a, habit; b & c, flower; d, calyx; e, calyx lobe outer (left) and inner (right) surfaces; f, corolla split open showing longitudinal flaps; g, stamens; h, staminodes; i, pistil; j, stigma; k, capsules; l, seeds. [based on Nampy & Vishnu 156840].

It is similar to Henckelia oblongifolia (Roxb.) D.J.Middleton & Mich.Möller because of its general appearance, flower colour and yellow lines on the corolla throat, but differs in the shape of the calyx lobes (lanceolate vs. deltoid), the corolla tube (two prominent longitudinal flaps on the inner side vs. without longitudinal flaps), the stigma (bilobed vs. obdeltoid) and capsules (tomentose vs. pubescent).

Herbs perennial, caulescent. Stems erect, terete, tomentose, up to 1 m tall; internodes 2.5-6 cm long. Leaves simple, opposite, anisophyllous; petioles 2-9 cm long, terete, purple to brown, tomentose. Lamina 12-22 × 6-10 cm; ovate to widely ovate, dark green above, pale green beneath, pubescent and sparsely gland-dotted above, villous along the nerves and densely gland-dotted beneath; narrowly acute to acuminate at apex; oblique at base, serrulate at margins; lateral veins 8-12 on each side of midrib, arcuate. Cymes usually 2 or rarely 1 from the axil of distal leaves, 2-12 flowered; peduncles 1.2-2.5 cm long, terete, pubescent. Bracts 2, free, leaf-like, sessile, persistent, 0.3-0.5 × 0.1-0.2 cm, lanceolate, acuminate at apex, cuneate at base, ciliate at margins. Pedicels 1.8-3 cm long, terete, pubescent. Bracteoles 2, free, sessile, persistent, c. 0.6 cm long, linear, acuminate at apex, cuneate at base, ciliate at margins. Calyx 1.4-1.6 × 0.4-0.6 cm, lobed from above middle, pale green; tube c. 1 cm long; lobes c. 0.6 cm long, lanceolate, pilose outside with white hairs, glabrous inside, acuminate at apex, entire at margins. Corolla 4-4.5 cm long; tube c. 3.5 cm long, c. 1.5 cm broad at throat, with two longitudinal flaps along the length of tube on the upper surface; two yellow lines on the throat, densely eglandular hairy outside, sparsely inside; limb 2-lipped, c. 0.5 × 0.5 cm, ovate with rounded to obtuse apex. Stamens 2, filaments 0.9-1.2 cm long, inserted c. 1 cm from the base of corolla tube, geniculate, white with yellow markings on the knee, sparsely pubescent, attached to the anther at middle of dorsal surface; anthers cream coloured, thecae parallel, lobes c. 0.2 cm diam., fused face to face, villous near the connectives. Staminodes 3, two large c. 0.5 cm long, one small c. 0.2 cm long, curved, free, white but green at apex. Disc ring like; margin undulate, brown. Ovary c. 2 × 0.2 cm, cylindrical, slightly curved, green, glabrous; style c. 0.8 cm long, cylindrical, green, glandular pubescent, held between the flaps of upper corolla tube; stigma chiritoid, lower lip bilobed, cream, densely pubescent. Capsules 5-7 cm long, linear, tomentose, loculicidally dehiscing. Seeds numerous, c. 3 mm long, flat, fusiform, testa dark brown with a membraneous margin all around.

Distribution and habitat. -Hitherto known only from the type locality (Fig. 2) in tropical evergreen forest at altitudes around 1300 m. It was found in relatively damp, shady areas along rivulets with dense understory.

medium/medium-AJBM-78-01-e105-gf2.png

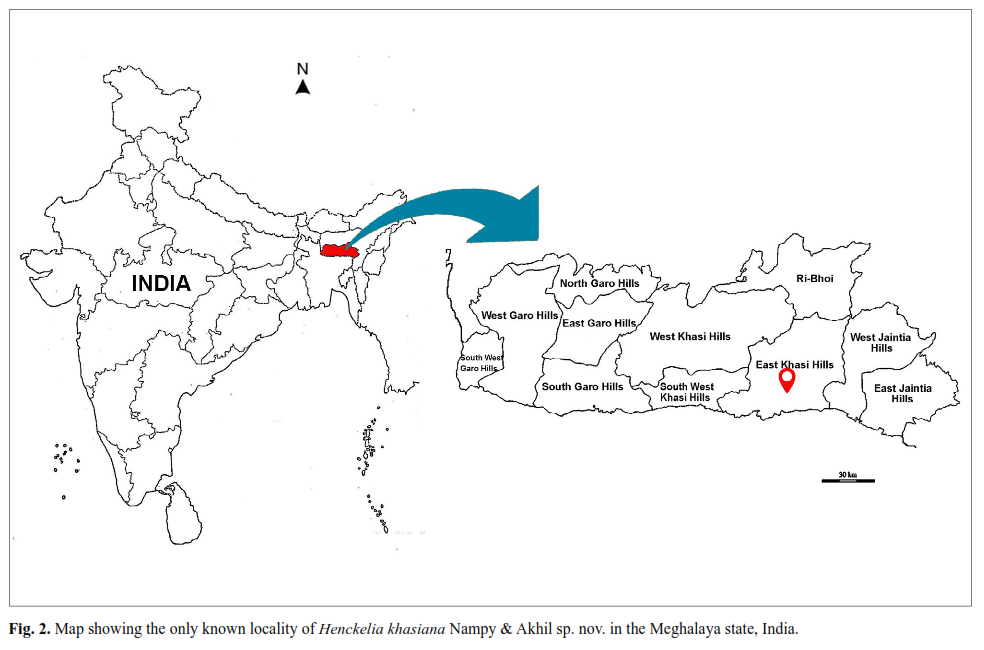

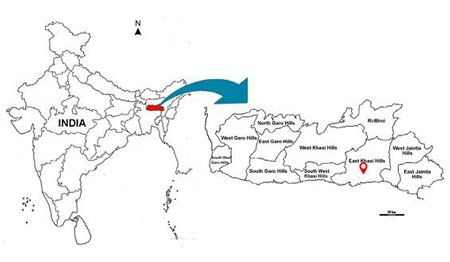

Fig. 2.  Map showing the only known locality of Henckelia khasiana Nampy & Akhil sp. nov. in the Meghalaya state, India.

Phenology. -Flowering and fruiting from September to November.

Etymology. -The specific epithet is derived from the floristically rich Khasi hills in Meghalaya, where the type locality Mawsynram is situated.

Conservation status. -Henckelia khasiana sp. nov. is known only from a single location in the type locality Mawsynram in East Khasi Hills district of Meghalaya. The area of occupancy is assumed to be less than 10 km2. It is under severe threat due to the expansion of highways and other developmental activities in the area. Further surveys in other likely areas are required to estimate the conservation status of the new species. Based on the available data, it is provisionally assessed as “Critically Endangered” (CR) according to the criteria B2ab(iii) of IUCN Red List Categories and Criteria (IUCN 2019IUCN 2019. Guidelines for using the IUCN Red List Categories and Criteria, Version 14. - Prepared by the Standards and Petitions Committee. ).

Notes. -Among the species of Henckelia occurring in India, H. khasiana is most similar to H. oblongifolia but differs from the latter in several characters summarized in the diagnosis above and in Table 1.

Table 1.  Morphological characters distinguishing Henckelia khasiana Nampy & Akhil sp. nov. from H. oblongifolia (Roxb.) D.J.Middleton & Mich.Möller.
CharactersHenckelia khasianaHenckelia oblongifolia
Leaves12-22 × 6-10 cm, lance-ovate to widely ovate, serrulate at margins, upper surface pubescent and sparsely gland-dotted, lower surface villous along the nerves and densely gland-dotted6.5-20 × 3-9.5 cm, elliptic to ovate oblong, crenate to crenulate at margins, both surfaces tomentose, gland-dotted
CymesUsually 2, rarely 1 in the axilsSolitary in the axils
Calyx1.4-1.6 × 0.4-0.6 cm; tube c. 1 cm long; lobes c. 0.6 cm long, lanceolate, pilose out, hairs white 0.8-1 × 0.7-0.9 cm; tube c. 0.6 cm long; lobes c. 0.3 cm long, deltoid, pubescent out, hairs claret coloured
CorollaEglandular pubescent with two yellow lines on the lower surface of throat and two longitudinal flaps on the inner surface distallyGlandular pubescent with two yellow foldings on the lower surface of throat, longitudinal flaps absent
Stamens Filaments 0.9-1.2 cm long, geniculate, white with yellow markings on the knee, sparsely pubescent, attached to the anther on middle of dorsal surface; anthers villous near the connectives, theca parallel, lobes fused face to faceFilaments 1-1.3 cm long, fusiform, white, glandular pubescent, attached to the anther on entire dorsal surface; anthers glabrous, theca divergent, lobes fused apically
StaminodesCurved, white but green at apexStraight, white in colour
Stigma lower lipBilobedObdeltoid, emarginated
Style Glandular pubescent, greenSparsely pilose, white
OvaryGlabrous, green colouredDensely pubescent, gland dotted, white, covered by claret coloured hairs
CapsulesTomentosePubescent

ACKNOWLEDGEMENTS



We are thankful to the head of the Department of Botany, University of Calicut, Kerala for facilities; officials of Meghalaya Forest Department for permission to undertake field trips; SERB New Delhi for funding (EMR/2016/007346 dated 01/11/2018) and to Dr. Michael Möller, RBG Edinburgh for initial discussion.

REFERENCES



Bin Y., Ding H.B., Fu K.C., Yuan Y.K., Yang H.Y., Jian W.L., Zhang L.X. & Tan Y.H. 2019. Four new species of Gesneriaceae from Yunnan, Southwest China. PhytoKeys 130: 183-203.

Borah D., Taram M., Joe A. & Neelamkavil S.V. 2019. Henckelia collegii- sancti-thomasii: a new species of Henckelia (Gesneriaceae) from Northeastern India. Phytotaxa 415: 247-251.

Cai L., Liu D.T., Zhang P. & Dao Z.L. 2019. Two new species of Henckelia (Gesneriaceae) from South eastern Yunnan, China. In: Cai J., Yu W-B., Zhang T. & Li D-Z. (ed.), Revealing of the plant diversity in China’s biodiversity hotspots. PhytoKeys 130: 151-160.

Forman L. & Bridson D. 1989. The herbarium handbook. Kew: Royal Botanic Garden.

Janeesha A.P. & Nampy S. 2020. A taxonomic revision of Henckelia (Gesneriaceae) in South India with a new species, one new combination and seven lectotypifications. Rheedea 30: 48-95.

Kanthraj A.S., Rana T.S. & Nair K.N. 2020. Henckelia umbellata (Gesneriaceae), a new species from the eastern Himalaya of India. Rheedea 30: 143-149.

Krishna G. & Lakshminarasimhan P. 2018. A new species of Henckelia (Gesneriaceae) from Arunachal Pradesh, India. Taiwania 63: 397-401.

Manudev K.M., Weber A. & Nampy S. 2012. Henckelia pradeepiana, a new species of Gesneriaceae from southern Western Ghats, India. Rheedea 22: 119-123.

Middleton D.J., Weber A., Yao T.L., Sontag S. & Möller M. 2013. The current status of the species hither to assigned to Henckelia (Gesneriaceae). Edinburgh Journal of Botany 70: 385-403.

Möller M., Nampy S., Janeesha A.P. & Weber A. 2017. The Gesneriaceae of India: Consequences of updated generic concepts and new family classification. Rheedea 27: 23-41.

IUCN 2019. Guidelines for using the IUCN Red List Categories and Criteria, Version 14. - Prepared by the Standards and Petitions Committee.

Ranasinghe S., Milne R., Jayasekara R., Rubasinghe S. & Möller M. 2016. Henckelia wijesundarae (Gesneriaceae), a new endemic species from Sri Lanka, and lectotypification of Chirita walkerae and C. walkerae var. parviflora. Willdenowia 46: 213-224.

Singh R.K., Arigela R.K., Borah D. & Taram M. 2020. Henckelia collegii-sancti-thomasii (Gesneriaceae), a new synonym of narrow endemic species H. hookeri of Northeast India. NeBIO 11: 205-207.

Sinha B.K. & Datta S. 2016. Taxonomic account of the family Gesneriaceae in northeast India. Nelumbo 58: 1-43.

Sirimongkol S., Parnel J.A.N., Hodkinson T.R., Middleton D.J. & Puglisi C. 2019. Five new species of Henckelia (Gesneriaceae) from Myanmar and Thailand. Thai Forest Bulletin (Botany) 47: 38-54.

Sprengel K. 1817. Fam. XXIX. Perfonaten. Anleitung Zur Kenntniss der Gewächse, Zweite 2: 390-406.

Stearn W.T. 1992. Botanical Latin: History, Grammar, Syntax, Terminology and Vocabulary ed. 4. Timber Press, Portland.

Sukumaran E. & Kumar S. 2014. A new combination in Henckelia (Gesneriaceae). Polish Botanical Journal 59: 149.

Taram M., Borah D., Taku O. & Tag H. 2020. Henckelia siangensis (Gesneriaceae): a remarkable new species from Northeast India. PhytoKeys 160: 1-6.

Thiers B. 2020 [continuously updated]. Index Herbariorum: a global directory of public Herbaria and associated staff. New York Botanical Garden’s Virtual Herbarium, New York. http://sweetgum.nybg.org/science/ih/ [accessed 25 Jun 2020].

Weber A. & Burtt B.L. 1998. Remodelling of Didymocarpus and associated genera (Gesneriaceae). Beiträge zur Biologie der Pflanzen 70: 293-363.

Weber A., Middleton D.J., Forrest A., Kiew R., Lim C.L., Rafidah A.R., Yao T.L. & Möller M. 2011. Molecular systematics and remodelling of Chirita and associated genera (Gesneriaceae). Taxon 60: 767-790.
