An invasion risk map for non-native aquatic macrophytes of the Iberian Peninsula

Argantonio Rodríguez-Merino¹*, Rocío Fernández-Zamudio² & Pablo García-Murillo¹

¹ Department of Plant Biology and Ecology, Faculty of Pharmacy, University of Seville, Profesor García González St., no. 2, 41012 Seville, Spain; argantonio.rodriguez@gmail.com

² Doñana Biological Station, CSIC, Américo Vespucio Ave., s.n., 41092 Seville, Spain

* Corresponding author

INTRODUCTIONTOP

Invasive species are one of the main causes of biodiversity loss. At a global scale, they represent a major threat to the ecosystems functioning (Mack & al., 2000; Sala & al., 2000; Brooks & al., 2004). Non-native species may also cause negative effects (Ricciardi & Kipp, 2008; Pyšek & Richardson, 2010) on human health (Hulme, 2006; Chytrý & al., 2009), as well as important economic impacts (Pimentel & al., 2005). Some freshwater systems are considered biodiversity hotspots (Murphy, 2002; Strayer & Dudgeon, 2010; Brundu, 2015; Serrano & Díaz Paniagua, 2015) and are one of the most threatened ecosystems in the world (Collen & al., 2014; Brundu, 2015; Serrano & Díaz Paniagua, 2015). These systems are particularly susceptible to biological invasions, because of their propensity to shift away from natural conditions and feedbacks that alter colonized habitats (Willby, 2007; Aguiar & Ferreira, 2013; Brundu, 2015; Gallardo & al., 2015). Aquatic macrophytes play an important role in the structure and function of freshwater systems (Chambers & al., 2008; García-Murillo & Fernández-Zamudio, 2015) by providing a structurally complex environment (Rennie & Jackson, 2005; Dibble & al., 2006). They contribute to environmental heterogeneity (Harrel & Dibble, 2001) and to increase the diversity of ecological niches. Aquatic invaders features like high productivity, broad ecological tolerances, notable phenotypic plasticity, and a remarkable facility in producing propagules (Santamaría, 2002; Les & al., 2003), have led some invasive freshwater plants to belong to the group of the “100 of the World´s Worst Invasive Alien Species” (Lowe & al., 2004). In addition, the nutrient increase in many water bodies due to human activities and the frequent absence of natural enemies in this group of plants, have led in some cases to absolute dominance in the invaded habitats (García-Murillo & al., 2007; Ruiz & al., 2008).

An early detection of the arrival of non-native species can increase the success in their eradication before the establishment, preventing future invasions (Broennimann & Guisan, 2008; Williams & Grosholz, 2008; Crafton, 2015). For this reason, it should be necessary to identify the most exposed areas of invasion risk (Reshetnikov & Ficetola, 2011). But aquatic habitats in general and aquatic macrophytes in particular are difficult to be monitored (Brundu, 2015). So, the development and use of alternative methodologies for the prevention and control of exotic species are essential for the identification of areas with a high invasion risk. This kind of methodologies will allow us to manage potential non-native species while preserving native species (Gallardo & al., 2012).

Species distribution models have the potential to predict invasiveness and have become common in the study and management of biological invasions (Peterson, 2003; Thuiller & al., 2005). Significant recent advances have been achieved in the development of species distribution models (v.gr., Elith & Leathwick, 2009). Appropriate factors in modeling the potential distribution of species, as well as the use of suitable occurrence data, are essential to execute more accurate models. In our case, we have chosen the algorithm MaxEnt (Phillips & al., 2006), based on the maximum entropy principle, for modeling the potential distribution of non-native aquatic macrophytes. Several authors propose that MaxEnt model is better than other algorithms based on presence-only data (Elith & al., 2006; Elith & Leathwick, 2009; Mateo & al., 2010).

The Iberian Peninsula has been considered as a plant biodiversity hotspot (Molina & al., 2015), including aquatic plants (Chappuis & al., 2012). But over the last decades a significant transformation seems to have occurred in some important Iberian inland aquatic ecosystems. In essence, we have observed an expansion of some non-native aquatic plants and the decrease in some other native ones (Cirujano & al., 2014). The aim of this study is to predict the potential priority risk areas for invasion of aquatic plants in the Iberian Peninsula. To accomplish this objective we have employed a species distribution model. We firstly determined the influence of environmental and socio-economic factors over 20 non-native aquatic macrophytes at a global scale. Secondly, we overlapped the individual models to achieve a map that shows the higher vulnerable areas, due to the effect of multiple invasions. Finally, we compared the most vulnerable regions with the irrigated agricultural areas in order to find an explanation for the distribution of the studied species.

MATERIAL AND METHODSTOP

Study areaTOP

The Iberian Peninsula is located in the southwestern Europe. It is restricted by the Atlantic Ocean and the Mediterranean Sea. The Pyrenees separate it from the rest of Europe, and the Strait of Gibraltar from Africa. The climate diversity of the study area and the rugged topography of the land along with the geographic isolation, are key elements to develop an outstanding biodiversity (López-López & al., 2011). Concerning aquatic plants, this territory shows a high diversity of aquatic ecosystems and water bodies. Thus, we can find several types of rivers, streams, creeks, lakes, ponds —temporary or permanent—, bogs, and marshlands.

Species selectionTOP

We have modeled the distribution of 20 non-native aquatic macrophytes which are currently established in the Iberian Peninsula (Table 1). The non-native species belong to 13 genus and 9 families and were selected from Cirujano & al. (2014) complemented with the European and Mediterranean Plant Protection Organization list —EPPO, see http://www.eppo.int — and the Delivering Alien Invasive Species Inventories for Europe list —DAISIE, see http://www.europe-alien.org.

The global spatial occurrences of 20 species were obtained from the Global Biodiversity Information Facility (GBIF, 2015). We tested the Iberian Peninsula occurrences with data showed by the Anthos Project (Anthos, 2015). The case of Ludwigia peploides subsp. montevidensis (Spreng.) P.H. Raven was checked in other additional sources (Verloove & Sánchez, 2008; Bou & Font, 2016). Records were considered from 1950 to the present to match the timeframe for the current climate data. In order to avoid underestimating the potential niche we counted all occurrences available for each species, showing the native and invasive ranges of species (Jiménez-Valverde & al., 2011).

We used the statistical software R (R Development Core Team, 2014) to clean data and removed duplicates, data without date, and erroneous occurrences in both taxonomic and geographic data. Furthermore, we also reduced the spatial autocorrelation of the data to not violate the assumption of independence (Heffner & al., 1996). Thus, the distance between data pairs was reduced to 10 km; the same distance was used for modeling the species’ potential distribution.

Predictor variablesTOP

The 19 bioclimatic layers and altitude —Digital Elevation Model, DEM— were taken from WorldClim-Global Climate Data (Hijmans & al., 2005; Worldclim, 2015). The resolution of the environmental layers used was 5 arc-min —~10 km at the equator.

Slope was derived from DEM layer using the software ArcGIS 9.3.1 (ESRI, 2008). The human footprint was considered a socio-economic factor that reflects the human influence on the territory following Sanderson & al. (2002). This authors used as proxies of this footprint several variables such as various human land uses, population density or distance to major roads, railways and rivers. The information was obtained from Socioeconomic Data and Applications Center (SEDAC, 2015) and its resolution is 30 arc-sec —~1 km.

The resolution of 22 variables (Table 2) was turned into 5 arc-min and was projected using the World Geodetic System 1984 projection. The spatial correlation between variables was analyzed by Raster package (Hijmans & van Etten, 2015). After obtaining the correlation tree, the variables were selected by a threshold limit of 0.5. In addition, to remove the linear combination between variables in the model, the Variance Inflation Factor —VIF— was calculated using the package HH, and taking 5 as limit value (Heiberger, 2015).

Species distribution modelingTOP

We developed the species distribution models with the machine learning MaxEnt version 3.3.3.k (Phillips & al., 2006), which estimates species distribution by the principle of maximum entropy. This method was chosen because is one of the most effective species distribution model, and shows a high quality achievement with low sample sizes and moderate georeferencing errors (Elith & al., 2006; Wisz & al., 2008; Mateo & al., 2010).

The parameters employed for this study were taken from Phillips & al. (2006), Phillips & Dudík (2008), and Elith & al. (2011). Default parameters were convergence threshold = 0.00001, maximum iterations = 1,000, and prevalence = 0.5, multiple regularization —default is 1— was changed to 2.5 to reduce the probability of overfitting models following Elith & al. (2010). Models were fitted with the 70% occurrences data and the remaining 30% was used to evaluate the obtained models. Besides, we used 10-fold cross-validations to estimate the errors around the fitted functions and the predictive performance on the held-out data (Elith & al., 2011). We created 10,000 background points to simulate pseudo-absences (Phillips & Dudík, 2008; Elith & al., 2011). Likewise, we interpreted the logistic output as a habitat suitability map for each species. The model accuracy was estimated using the area under the receiving operating characteristic —ROC— curve —AUC—. According to it, the results within a value of 0.5 do not discriminate better than the random, while a model with a perfect discrimination would have an AUC of 1, and values bigger or equal than 0.7 correspond to the highest predictive models (Hosmer & Lemeshow, 2000). Finally, we calculated the AUC for each model and determined the average AUC for each set of 10 replicates (Barnes & al., 2014). 10^th percentile training presence threshold was chosen because it shows a good ability to predict correctly the presence of invasive species (Pearson & al., 2007; Reshetnikov & Ficetola, 2011), representing the species distribution in suboptimal habitats (Kelly & al., 2014).

Invasion risk mapTOP

The invasion risks map was calculated by overlaying the 20 species distribution individual models (Aranda & Lobo, 2011; Fajardo & al., 2014) using the Geographic Information System ArcGIS 9.3.1 (ESRI, 2008). Thereby we obtained a cartography that reflects the cumulative risk of invasion, which represent the most favorable areas for colonization and spread for the studied species in the Iberian Peninsula.

RESULTSTOP

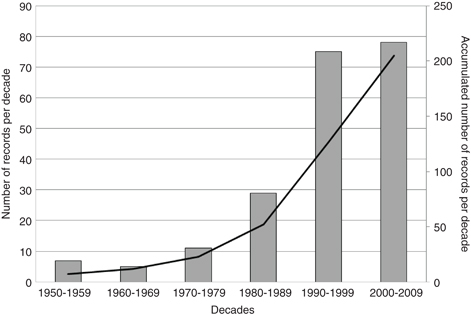

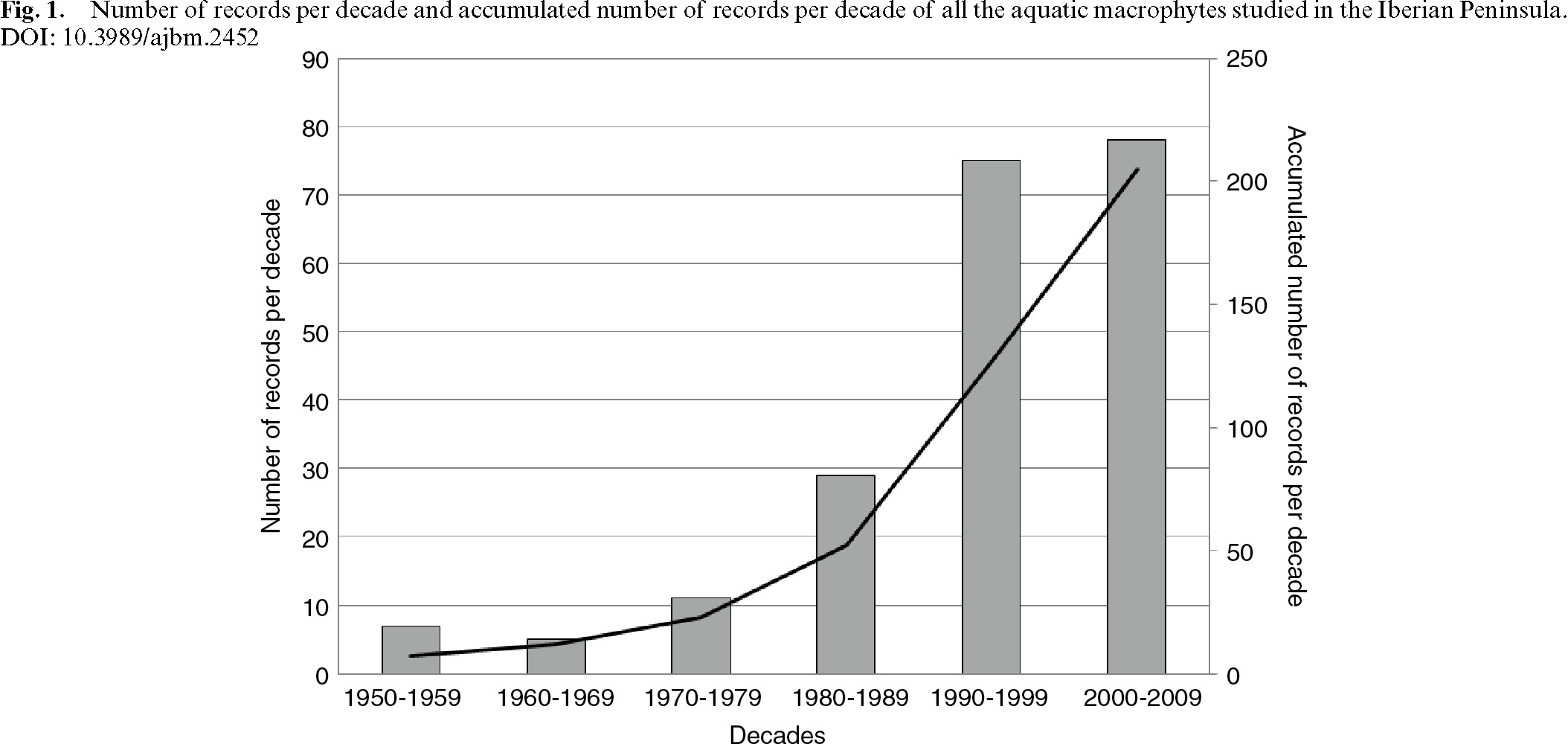

A total of 8,892 records were used for modeling the global potential distribution of species. The number of records varied widely among species —Nymphaea mexicana Zucc. minimum global occurrence points: 46 and Azolla filiculoides Lam. maximum occurrence points: 1,617, after cleaning data—. Fig. 1 shows the number of records per decade and the accumulated number of records per decade, and Fig. 2 shows the current presences of studied species on the Iberian Peninsula.

The final factors included as predictors in MaxEnt were mean diurnal range —Bio 2—, temperature seasonality (Bio 4), annual precipitation —Bio 12—, precipitation seasonality —Bio 15—, precipitation in the driest quarter —Bio 17—, altitude, slope, and human footprint —HFP.

In Table 3 we show the main results for each studied species. The accuracy scores of models ranged between 0.918 and 0.981, which shows that our models provide a good performance (Hosmer & Lemeshow, 2000) indicating a better discrimination than random chance for the species analyzed (Phillips & al., 2006). The binomial test of omission showed statistical significance —p<0.001— for each of the 10 replicates (Phillips & al., 2006), supporting the reliability of the models. The use of 10^th percentile training presence threshold allowed us to discriminate correctly the presence of non-native species (Pearson & al., 2007; Reshetnikov & Ficetola, 2011) in both optimal and suboptimal areas (Jiménez-Valverde & al., 2011; Kelly & al., 2014).

The best predictor of potential distribution for the majority of the species was the human footprint. In relation to Azolla filiculoides, Hydrocotyle verticillata Thunb., Lagarosiphon major (Ridl.) Moss ex Wager, and Pistia stratiotes L., the best predictor was the temperature seasonality; for Heteranthera rotundifolia (Kunth) Griseb. the mean diurnal range, and for Myriophyllum heterophyllum Michx. the precipitation in the driest quarter. Besides, for these species the human footprint was included among the three best predictors (Table 3).

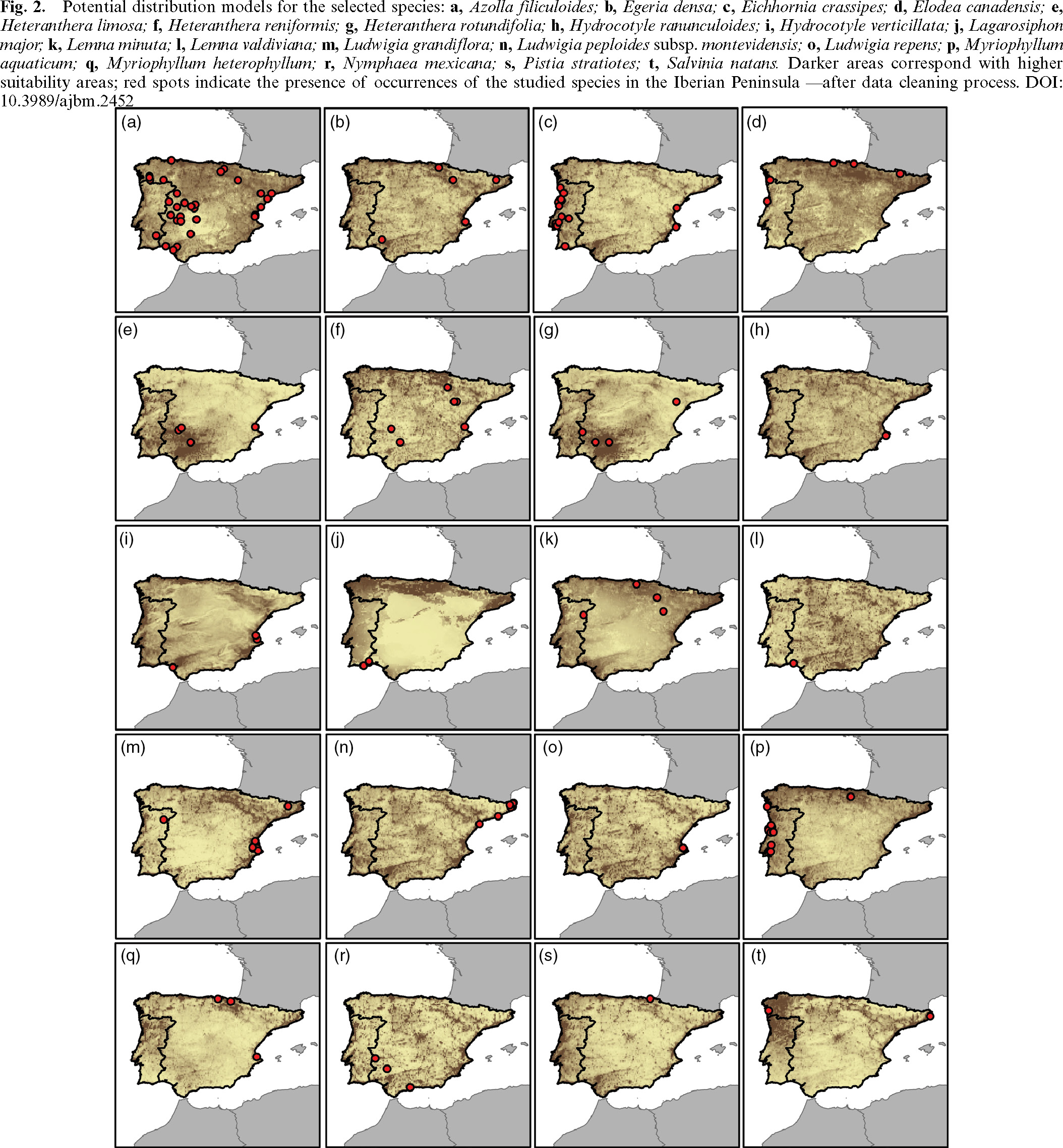

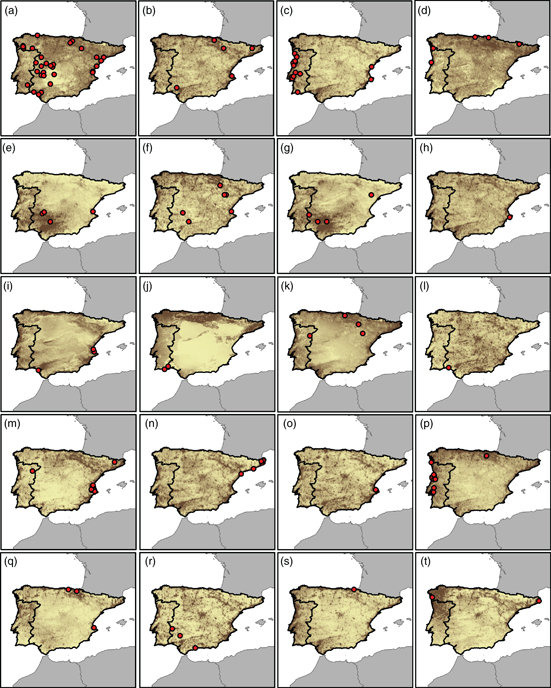

The suitable habitat models for the invasion risk varied broadly between species (Fig. 2), showing a large favorable distribution for species as Azolla filiculoides, Egeria densa Planch., Elodea canadensis Michx., Lemna valdiviana Phil., Nymphaea mexicana, and Ludwigia repens J.R. Forst.

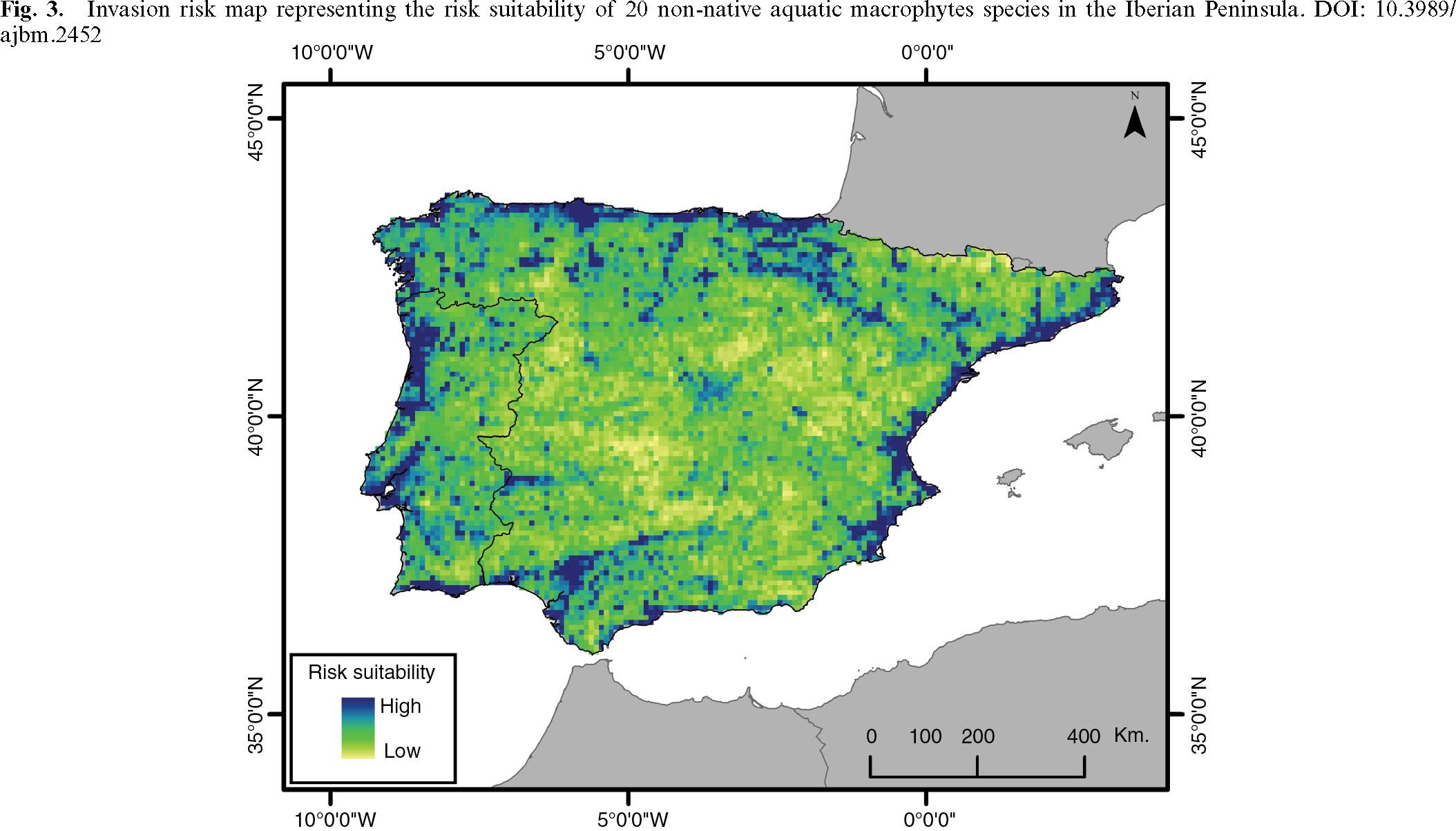

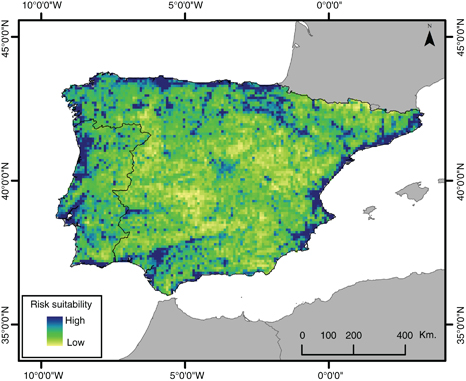

The combination of the 20 individual models is the risk map for non-native Iberian aquatic macrophytes (Fig. 3). It shows the suitability of presence of the species according to the factors selected in the model building. The most vulnerable areas coincide with the littoral fringe, the high population density sectors, and the large river basins.

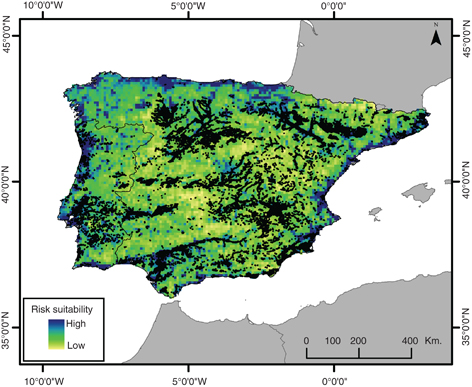

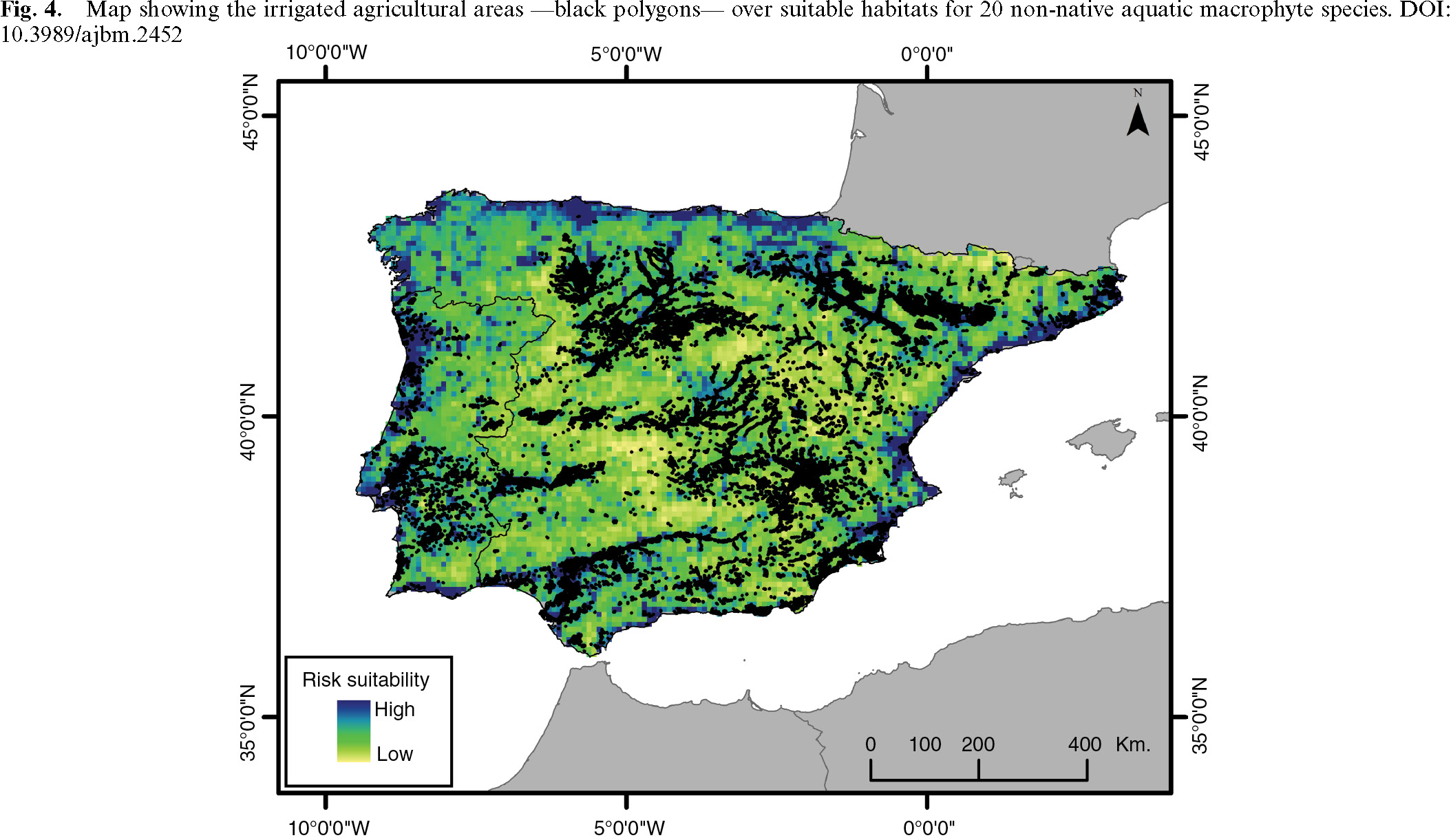

Fig. 4 shows the overlapping between the irrigated agricultural areas taken from European Environment Agency (2015) and the most vulnerable region in the invasion risk map.

DISCUSSIONTOP

Our results show the first geographical representation of the potential invasion risk by non-native aquatic macrophytes in the Iberian Peninsula. The combination of both environmental and socio-economic factors allows us to identify those areas more susceptible to be invaded by non-native aquatic plants.

Large areas of the Iberian Peninsula were suitable to the invasion by different non-native aquatic macrophytes, like Azolla filiculoides, Egeria densa, Elodea canadensis, Lemna valdiviana, Ludwigia repens, Myriophyllum aquaticum (Vell.) Verdc., and Nymphaea mexicana (Fig. 2). Most of them are widely distributed in Europe, being Azolla filiculoides and Elodea canadensis the species present in more European countries (Hussner, 2012).

Temperature seasonality and precipitation in the driest quarter are key factors in the probability distribution of the studied species. This result is supported by the fact that the climatic characteristics of an area act as key elements for a successful colonization of non-native species (Thuiller & al., 2005; Broennimann & al., 2007). For instance, the temperature could limit the survival, growth, and reproduction in plants (Woodward & Willians, 1987), and the precipitation in the driest quarter is associated to water availability of water bodies (Reshetnikov & Ficetola, 2011), which acts as the principal factor for the persistence of aquatic plants communities. Similar results were obtained by others authors (Gallardo & Aldridge, 2013; Barnes & al., 2014; Kelly & al., 2014), implying that non-native aquatic macrophytes are able to tolerate a wide range of environmental conditions —v.gr., seasonality in Mediterranean environments— and extreme events. This ability benefits them versus native species (Rahel & Olden, 2008; Gallardo & Aldridge, 2013). Several authors (Pearson & Dawson, 2003; Broennimann & al., 2007; Walther & al., 2009) have suggested that shifts in climate could benefit non-native species, which often tolerate temperature and precipitation ranges broader than the native ones.

The human footprint was positively associated with the presence of all studied species. This association reflects the easiness these species have to establish in disturbed habitats (Chytrý & al., 2009; Kelly & al., 2014), due to the increased presence of introduction vectors and pathways like as channels, roads or railways by which these species can be introduced and the disturbances in land uses in the studied area by human activity (Catford & al., 2011; Gallardo & Aldridge, 2013).

For example, the increase of nutrients on watercourses and water bodies, which contributes to the growth of algal blooms and the rise of turbidity levels (Carter & Rybicki, 1990; Santamaría & al., 1996) is associated with human activities. It provokes the reduction of light and oxygen availability, stopping the growth of the submerged vegetation (Moss, 1990) but enhancing floating aquatic macrophytes (Egerston & al., 2004). The new ecological scheme will promote the establishment of non-native macrophytes, which are able to colonize degraded habitats, where native macrophytes are unable to survive (Quinn & al., 2001; Catford & Downes, 2010; Chappuis & al., 2011).

Areas under the highest risk of multiple invasions include large rivers basins, highly populated areas, and the coastline (Fig. 3). An important part of the areas for colonization and expansion of these non-native species coincide with territories with agricultural development increase over the last decades. From 1970, the number of records of non-native species in the Iberian Peninsula began to rise (Fig. 1). This period overlaps with the industrialization of agriculture —the Green Revolution— when traditional non-irrigated farming was transformed into huge irrigation areas (Ruiz & al., 2008) in the Iberian Peninsula.

In this period, the high dependence on agricultural chemicals has affected freshwater ecosystems (Galil & al., 2007). Hydrological alterations and the increase of dissolved nutrients, have contributed to the eutrophication of aquatic ecosystems (Chappuis & al., 2011; Quinn & al., 2011), and the intensive land use has favored sedimentation events (Allan, 2004). All these changes have facilitated the expansion of non-native aquatic macrophytes (Egertson & al., 2004; Chappuis & al., 2011; Quinn & al., 2011). Moreover, the increment of sedimentation events caused by an intensive land use also benefits submerged non-native species. Principal areas of irrigated agriculture in the Iberian Peninsula overlap with the most susceptible areas to be invaded by non-native macrophytes (Fig. 4). This phenomenon has been reported previously by García-Murillo & al. (2007) and Ruiz & al. (2008) for Azolla filiculoides and Eichhornia crassipes (Mart.) Solms expansion, respectively. Both studies support the hypothesis, together with ours, that the quick expansion of non-native macrophytes is due to the nutrients increase contributed by adjacent agricultural areas.

In addition, we also have observed that some areas predicted as being suitable (Fig. 3) were currently unoccupied —see Fig. 2, current presences of studied species—. This may be due to different causes: areas where species have been successfully eradicated —v.gr., Pistia stratiotes in neighborhood Doñana National Park, Southern Spain, as pointed up by García-Murillo & al. (2005)— or areas with geographical barriers or species interactions that limited its distributions —v.gr., Azolla filiculoides has not been detected in temporary ponds and marshes in Doñana National Park while the weevil Stenopelmus rufinasus Gyllenhal was present in samples, as pointed up by Florencio & al. (2015)—. Besides, they can also be areas where species have not been detected yet due to the lack of studies in these places, or because this species may have not been able to colonize these suitable areas yet (Liu & al., 2011) as a consequence of they are still in the early stages of the invasion process. These two last points are crucial for proper management and early control of non-native species.

Among the species studied in this work, we consider that the most harmful are Azolla filiculoides and Eichhornia crassipes, both present in the major part of the World, being the two more potentially invasive species in Europe and the Mediterranean basin (Hussner, 2012; Kriticos & Brunel, 2016). Their invasion capacity is due not only to climate tolerance and the adapting ability to eutrophic environments, but also to a high rate of vegetative reproduction that ensure the success of colonization in invaded habitats and a high competition with others species (Ruiz & al., 2008; Fernández-Zamudio & al., 2013).

In conclusion, our study, based on the global distribution of 20 non-native aquatic macrophyte species, contributes to the understanding of the distribution patterns of non-native aquatic macrophytes in the Iberian Peninsula, and it may be used as a base to develop useful tools to manage successfully the Iberian biodiversity in future conservation planning, and for the conservation and management of aquatic ecosystems in other lands. Species distribution models should not be a substitute for field work, but they are a first step that allows an early identification of the most vulnerable areas to implement more effective management efforts preventing biological invasions.

ACKNOWLEDGEMENTSTOP

We are indebted to Professor Timothy H Keitt and Dr. Laura I. González, from the University of Texas, for their comments of the manuscript and for the English revision. Also, we thanks to associate editor and two anonymous reviewers which provided helpful recommendations that improved substantially our manuscript.
